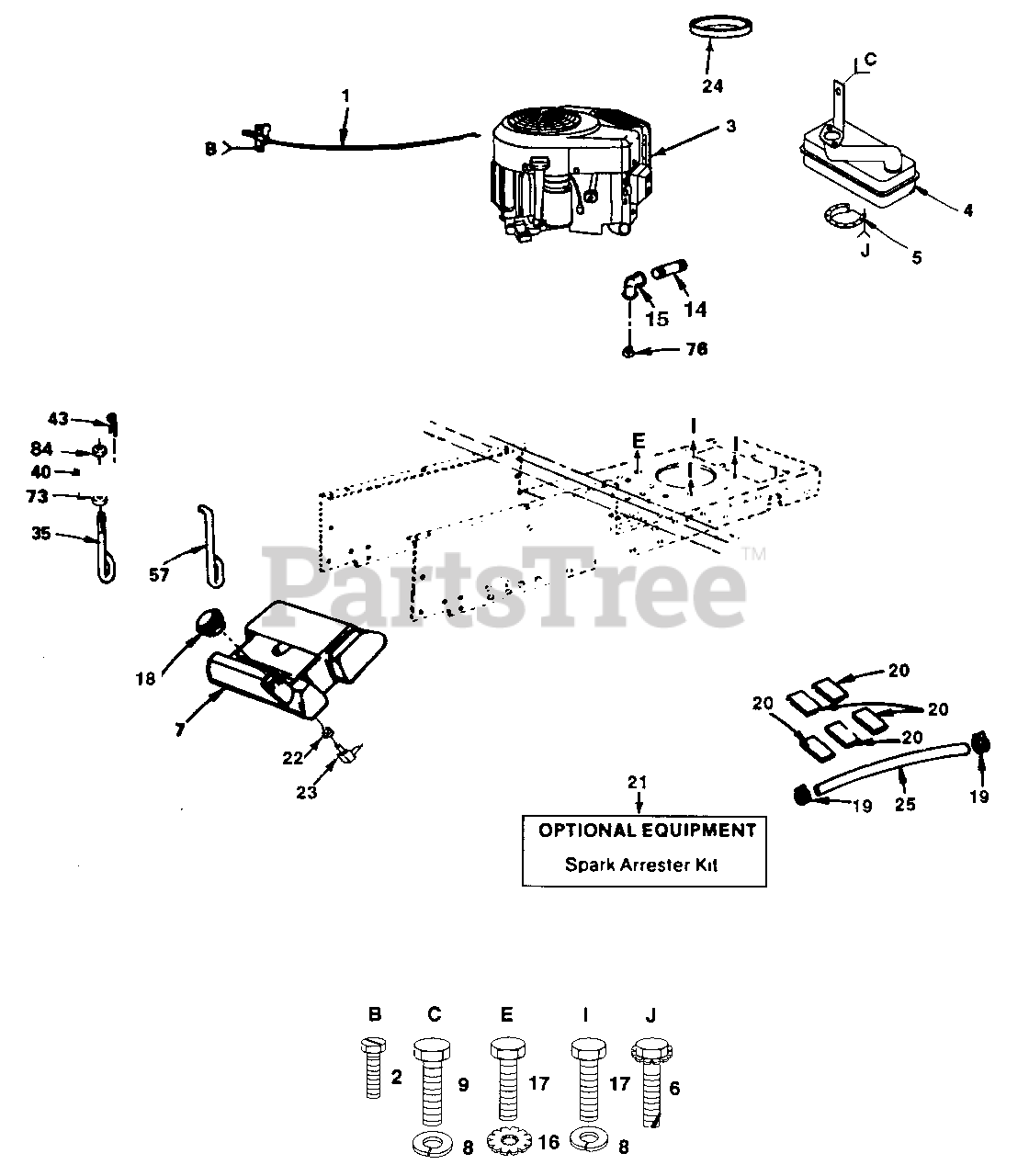

PP 1442 - Poulan Pro Lawn Tractor POWER AND MECHANICAL CONTROLS GROUP Parts Diagram

Lawn Tractor

POWER AND MECHANICAL CONTROLS GROUP Parts Diagram

  • Title

1

Poulan 532132753

Control, Throttle (AYP part number)

$

$

Not available

2

Poulan 817720410

Screw, Hex Thread Cut 1/4-20 x 5/8 (AYP part number)
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

3

Poulan 532133738

Engine Kohler

$

$

Not available

4

Poulan 532124196

Muffler (AYP part number)

$

$

Not available

5

Poulan 532101326

Deflector, Muffler (AYP part number)
(Superseded to 101326L)

$

$

Not available

6

Poulan 817030808

Screw, Spider Lock, Hex Head #8 x 1/2 AB (AYP part number)
(Superseded to 817030814)

$

$

Not available

7

Poulan 532106020

Tank, Fuel (AYP part number)

$

$

Not available

8

Poulan 810040500

Washer, Lock Heavy Helical Spring (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 874760508

Bolt, Hex Head 5/16-18 UNC x 1/2 (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

14

Poulan 813280336

Pipe Nipple, Standard (AYP part number)

$

$

Not available

15

Poulan 813200300

90ø Elbow 3/8 NPT (AYP part number)
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

16

Poulan 811050500

Washer, Lock External Tooth (AYP part number)
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 532125006

Screw M8 x 1.25 x 25 mm

$

$

Not available

18

Poulan 532123549

Cap, Fuel (AYP part number)
(Superseded to 532158990)

$26.99

$

Usually ships in 3-10 days

0

19

Poulan 532123487

Clamp, Hose (AYP part number)

$7.49

$

In Stock, only 4 left!

0

20

Poulan 532106082

Pad, Spacer (AYP part number)

$

$

Not available

21

Poulan 532122083

Spark Arrester Kit (AYP part number)

$

$

Not available

22

Poulan 532124952

Bushing (AYP part number)
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

23

Poulan 532124951

Stem, Tank, Fuel (AYP part number)
(Superseded to 532008710)

$

$

Not available

24

Poulan 532127073

Strip, Foam (AYP part number)

$

$

Not available

25

Poulan 532124923

Line, Fuel (AYP part number)
(Superseded to 532007833)

$4.99

$

Usually ships in 3-10 days

0
