PP 1442 - Poulan Pro Lawn Tractor ENCLOSURES Parts Diagram

Lawn Tractor

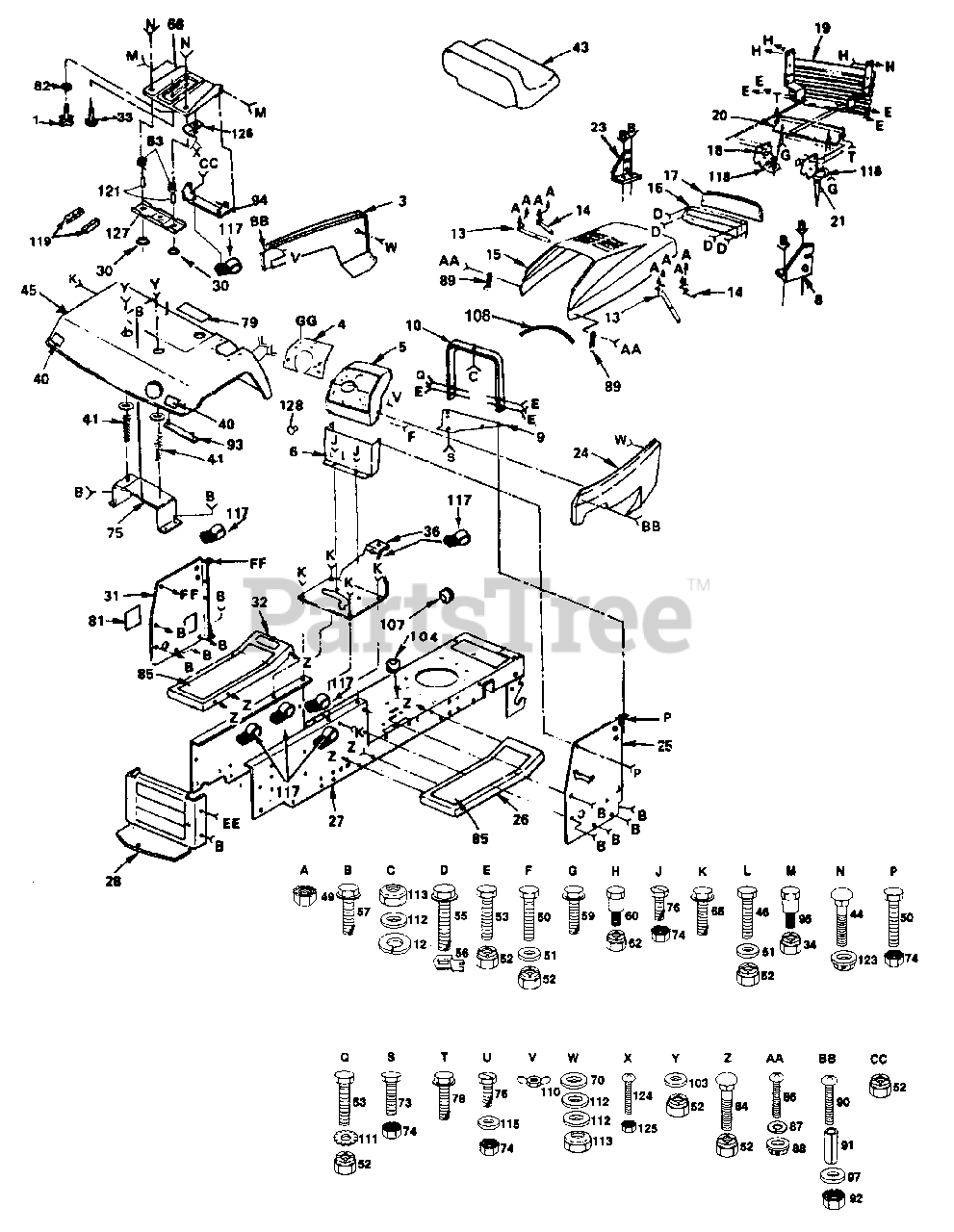

ENCLOSURES Parts Diagram

  • Title

1

Poulan 532120068

Adjustment Knob (AYP part number)
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

3

Poulan 532125353

Panel, Side, L.H. (AYP part number)

$

$

Not available

4

Poulan 532125093

Dash, Plate (AYP part number)

$

$

Not available

5

Poulan 532124252

Dashboard (AYP part number)
(Superseded to 532140398)

$

$

Not available

6

Poulan 532104805

Dash Assembly, Lower (AYP part number)

$

$

Not available

8

Poulan 532110853

Bracket Assembly, R.H. (AYP part number)

$

$

Not available

9

Poulan 532106965

Plate, Support, Battery (AYP part number)

$

$

Not available

10

Poulan 532124130

Support, Assembly, Dash (AYP part number)

$

$

Not available

12

Poulan 810040400

Washer, Lock Heavy Helical 1/4 (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

13

Poulan 532106784

Strap, Assembly, Hinge, Rear (AYP part number)

$

$

Not available

14

Poulan 532104618

Strap, Assembly, Hinge, Front (AYP part number)

$

$

Not available

15

Poulan 532125351

Hood (AYP part number)

$

$

Not available

16

Poulan 532124939

Bezel, Assembly
(Superseded to 583678801)

$

$

Not available

17

Poulan 532106395

Lens (AYP part number)

$

$

Not available

18

Poulan 532110855

Support, Grill, L.H. (AYP part number)

$

$

Not available

19

Poulan 532122100

Grill, Assembly (AYP part number)
(Superseded to 122100X)

$

$

Not available

20

Poulan 532124978

Strap, Grill (AYP part number)

$

$

Not available

21

Poulan 532110854

Support, Grill, R.H. (AYP part number)

$

$

Not available

23

Poulan 532110852

Bracket Assembly, L.H. (AYP part number)

$

$

Not available

24

Poulan 532125367

Panel, Side, R.H. (AYP part number)

$

$

Not available

25

Poulan 532110828

Panel, Dash, R.H. (AYP part number)

$

$

Not available

26

Poulan 532124889

Footrest, R.H. (AYP part number)

$

$

Not available

27

Poulan 532131052

Chassis (AYP part number)

$

$

Not available

28

Poulan 532130805

Drawbar (AYP part number)

$

$

Not available

30

Poulan 532121248

Bushing, Snap (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

31

Poulan 532124118

Panel, Dash, L.H. (AYP part number)
(Superseded to 124118X)

$

$

Not available

32

Poulan 532124888

Footrest, L.H. (AYP part number)

$

$

Not available

33

Poulan 532127018

Bolt, Shoulder 5/16-18 x.62 (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

34

Poulan 873680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

35

Poulan 532124238

Cap, Spring (AYP part number)

$

$

Not available

36

Poulan 532124771

Saddle (AYP part number)
(Superseded to 532123783)

$

$

Not available

40

Poulan 532106202

Reflector, Taillight (AYP part number)

$

$

Not available

41

Poulan 532124181

Spring, Compression (AYP part number)
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

43

Poulan 532127514

Seat (AYP part number)

$

$

Not available

44

Poulan 872050411

Bolt, Carriage 1/4-20 x 1-3/8

$

$

Not available

45

Poulan 532125119

Fender (AYP part number)

$

$

Not available

46

Poulan 874760612

Bolt, Fin, Hex 3/8-16 x 3/4 (AYP part number)

$4.99

$

In Stock, only 3 left!

0

49

Poulan 873510400

Nut, Hex Keps 1/4-20 (AYP part number)
(Superseded to 873640400)

$

$

Not available

50

Poulan 874760620

Bolt, Hex 3/8-16 x 1-1/4 (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

51

Poulan 819131312

Washer 13/32 x 13/16 x 12 Gauge (AYP part number)
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

52

Poulan 873680600

Nut, Crownlock 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

53

Poulan 874760616

Bolt, Hex 3/8-16 x 1 (AYP part number)
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

55

Poulan 817211010

Screw, Hex Washer Head Tapping #10-16 x 5/8 (AYP part number)

$

$

Not available

56

Poulan 532104755

"J" Fastener (AYP part number)

$

$

Not available

57

Poulan 817490612

Screw, Hex Washer Head, Threaded, Rolling 3/8-16 x 3/4 Type TT (AYP part number)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

59

Poulan 817490512

Screw, Hex Washer Head, Threaded, Rolling 5/16-18 x 3/4 Type TT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

60

Poulan 532123481

Bolt, Shoulder 1/4-20 (AYP part number)
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

62

Poulan 873680400

Nut, Crownlock 1/4-20 (AYP part number)
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

63

Poulan 532123740

Spring, Compression (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

65

Poulan 817490608

Screw, Hex Washer Head, Thread Forming 3/8- 16 x 1/2 Type TT (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

66

Poulan 532131451

Pan, Seat (AYP part number)
(Superseded to 532140552)

$21.99

$

Usually ships in 3-10 days

0

70

Poulan 819091016

Washer 9/32 x 5/8 x 16 (AYP part number)
(Superseded to 596582301)

$3.99

$

In Stock, Qty 7

0

73

Poulan 874780512

Bolt, Hex 5/16-18 x 3/4 (AYP part number)
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

74

Poulan 873510500

Nut, Keps 5/16-18 (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

75

Poulan 532105509

Bracket Assembly, Fender (AYP part number)
(Superseded to 532137113)

$14.99

$

Usually ships in 3-10 days

0

76

Poulan 874180512

Screw, Machine 5/16-18 x 3/4 (AYP part number)

$

$

Not available

78

Poulan 817190412

Screw, Hex Washer Head 1/4-20 x 3/4 (AYP part number)
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

81

Poulan 532121794

Cover, Access (AYP part number)
(Superseded to 121794X)

$

$

Not available

82

Poulan 819171912

Washer 17/32 x 1-3/16 x 12 Gauge (AYP part number)

$7.49

$

In Stock, only 1 left!

0

84

Poulan 872110606

Bolt, Carriage 3/8-16 x 3/4 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

85

Poulan 532133671

Pad, Footrest (AYP part number)

$10.99

$

Usually ships in 3-10 days

0

86

Poulan 874191008

Screw, Cross Recess Pan Head, Machine #1 0-24 x 1/2 (AYP part number)
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

87

Poulan 810071000

Washer, Lock #10 (AYP part number)

$4.99

$

In Stock, Qty 11

0

88

Poulan 532125004

Nut, Weld (AYP part number)
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

89

Poulan 532109808

Latch, Hood (AYP part number)

$6.99

$

In Stock, Qty 14

0

90

Poulan 874981020

Screw, Machine, Cross Recess #10-24 x 1-1/4 (AYP part number)
(Superseded to 874981024)

$9.99

$

In Stock, Qty 9

0

91

Poulan 532007206

Spacer, Split #10 x 3/4 (AYP part number)

$7.49

$

In Stock, Qty 6

0

92

Poulan 873731000

Nut, Keps #10-24 (AYP part number)
(Superseded to 873271000)

$2.99

$

Usually ships in 3-10 days

0

93

Poulan 532105511

Strap Assembly, Fender (AYP part number)
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

94

Poulan 532126656

Bracket, Pivot, Seat (AYP part number)

$

$

Not available

95

Poulan 532105529

Bolt, Shoulder 5/16-18 (AYP part number)
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

97

Poulan 819070818

Washer 7/32 x 1/2 x 18 Gauge (AYP part number)
(Superseded to 819070816)

$6.99

$

In Stock, only 1 left!

0

103

Poulan 819131614

Washer 13/32 x 1 x 14 Gauge (AYP part number)
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

104

Poulan 532124934

Grommet (AYP part number)

$

$

Not available

107

Poulan 532110436

Grommet, Split (AYP part number)
(Superseded to 532009151)

$

$

Not available

108

Poulan 532104915

Foam, Strip (AYP part number)
(Superseded to 532105037)

$

$

Not available

110

Poulan 532123198

Wing Nut 1/4-20 (AYP part number)
(Superseded to 532146525)

$

$

Not available

111

Poulan 811050600

Washer, Lock, External Tooth 3/8 (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

112

Poulan 819091216

Washer 9/32 x 3/4 x 16 Gauge (AYP part number)
(Superseded to 596204201)

$3.99

$

In Stock, only 1 left!

0

113

Poulan 873220400

Nut, Hex 1/4-20 (AYP part number)
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

115

Poulan 819111116

Washer 11/32 x 3/4 x 12 Gauge (AYP part number)
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

117

Poulan 532124996

Clip, Insulated (AYP part number)
(Superseded to 532002751)

$

$

Not available

118

Poulan 819111212

Washer 11/32 x 3/4 x 12 Gauge (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

119

Poulan 532121251

Foam, Strip (AYP part number)

$

$

Not available

121

Poulan 532121249

Spacer, Split 0.28 x 0.88 (AYP part number)

$6.49

$

In Stock, only 2 left!

0

123

Poulan 532123976

Locknut, Hex, Large, Flanged 1/4-20 UNC (AYP part number)
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

124

Poulan 874641008

Screw, Sltd. Pan Head #10-32 x 1/2 (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

125

Poulan 873951000

Nut, Keps #10-32 UNC (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

126

Poulan 532124967

Clip, Insulated (AYP part number)

$

$

Not available

127

Poulan 532121246

Bracket, Switch Mount (AYP part number)
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

128

Poulan 532005479

Plug, Button (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

129

Poulan 873510600

Nut, Keps Hex 3/8 - 16 UNC (AYP part number)

$6.49

$

Usually ships in 3-10 days

0
