PP 1438 B - Poulan Pro Lawn Tractor TRANSAXLE AND REAR WHEEL Parts Diagram

Lawn Tractor

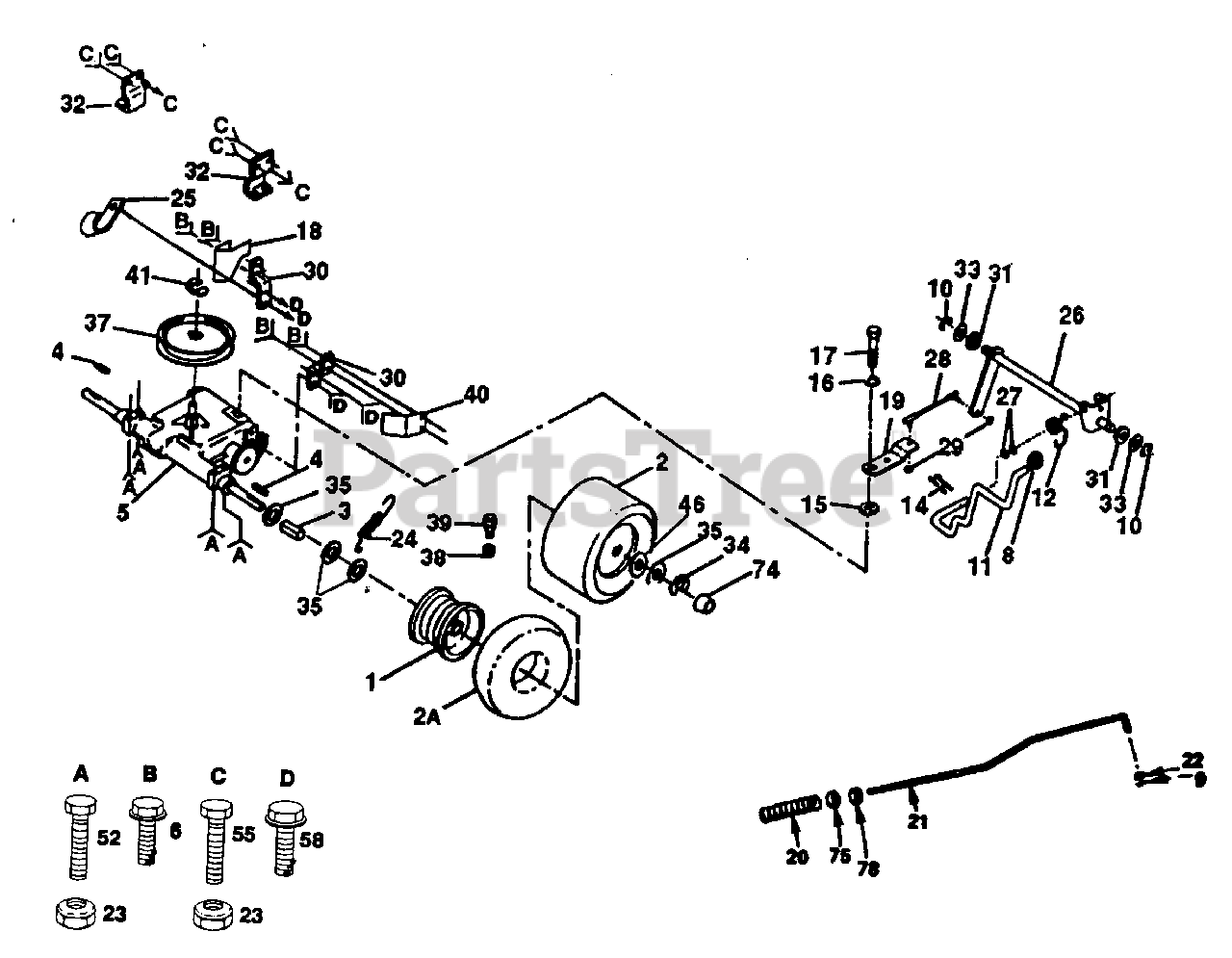

TRANSAXLE AND REAR WHEEL Parts Diagram

  • Title

1

Poulan 532124789

Rim Assembly, Rear (AYP part number)
(Superseded to 532125122)

$145.99

$

Usually ships in 3-10 days

0

2

Poulan 532106268

Tire (AYP part number)
(Superseded to 532420531)

$120.99

$

Usually ships in 3-10 days

0

2A

Poulan 532124926

Tube, Tire (AYP part number)
(Superseded to 532007152)

$74.99

$

Usually ships in 3-10 days

0

3

Poulan 532109502

Spacer, Split (AYP part number)

$

$

Not available

4

Poulan 532123583

Key, Square 2.5 x .1845/.1865 (AYP part number)

$4.99

$

In Stock, Qty 7

0

5

Poulan 532124162

Transaxle, 6 Speed, Foot Dana (AYP part number)

$

$

Not available

6

Poulan 817490612

Screw, Hex Washer Head, Threaded Rolling 3/8-16 x 3/4 (AYP part number)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

8

Poulan 532106933

Knob, Control (AYP part number)

$7.99

$

In Stock, only 1 left!

0

9

Poulan 876020412

Pin, Cotter 1/8 x 3/4 (AYP part number)
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

10

Poulan 812000003

Ring, E

$

$

Not available

11

Poulan 532127288

Rod, Shifter (AYP part number)
(Superseded to 532141002)

$

$

Not available

12

Poulan 532123782

Spring, Torsion (AYP part number)

$

$

Not available

14

Poulan 876020416

Pin, Cotter 1/8 x 1 (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

15

Poulan 532105701

Washer, Shift Plate (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

16

Poulan 819091216

Washer 9/32 x 3/4 x 16 Gauge (AYP part number)
(Superseded to 596204201)

$3.99

$

In Stock, only 1 left!

0

17

Poulan 871040412

Bolt, Hex 1/4-28 x 3/4 Grade 8 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

18

Poulan 532127275

Keeper, Belt, Transaxle, L.H. (AYP part number)

$

$

Not available

19

Poulan 532123794

Arm, Shift (AYP part number)

$

$

Not available

20

Poulan 532106888

Spring, Rod, Brake (AYP part number)
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

21

Poulan 532110437

Rod, Brake (AYP part number)
(Superseded to 532131867)

$

$

Not available

22

Poulan 819131316

Washer 13/32 x 13/16 x 16 Gauge (AYP part number)

$4.99

$

In Stock, Qty 5

0

23

Poulan 873680600

Locknut 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

24

Poulan 532110422

Spring, Brake Return (AYP part number)
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

25

Poulan 532124996

Clip (AYP part number)
(Superseded to 532002751)

$

$

Not available

26

Poulan 532127273

Shaft Assembly, Shifter (AYP part number)
(Superseded to 532136978)

$

$

Not available

27

Poulan 819171216

Washer 17/32 x 3/4 x 16 Gauge (AYP part number)
(Superseded to 19171216)

$2.99

$

Usually ships in 3-10 days

0

28

Poulan 532123793

Rod, Tie (AYP part number)
(Superseded to 532155189)

$28.99

$

Usually ships in 3-10 days

0

29

Poulan 873530400

Nut 1/4-28 (AYP part number)
(Superseded to 873610400)

$

$

Not available

30

Poulan 532121520

Strap, Torque (AYP part number)

$7.99

$

In Stock, only 3 left!

0

31

Poulan 532127272

Bushing, Pivot (AYP part number)

$

$

Not available

32

Poulan 532109167

Bracket, Transaxle (AYP part number)

$

$

Not available

33

Poulan 532126591

Washer .53 x 1.25 x .0598 (AYP part number)

$

$

Not available

34

Poulan 812000001

E-Ring (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

35

Poulan 532121749

Washer 25/32 x 1-1/4 x 16 Gauge (AYP part number)

$3.49

$

Usually ships in 3-10 days

0

37

Poulan 532123666

Pulley, Transaxle (AYP part number)

$45.99

$

In Stock, only 1 left!

0

38

Poulan 532059192

Cap, Valve (AYP part number)

$7.49

$

In Stock, Qty 9

0

39

Poulan 532065139

Stem, Valve (AYP part number)

$9.99

$

In Stock, only 3 left!

0

40

Poulan 532127274

Keeper, Belt, Transaxle, R.H. (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

41

Poulan 812000028

Ring, Retainer (AYP part number)
(Superseded to 532002267)

$7.49

$

In Stock, Qty 8

0

46

Poulan 532121748

Washer 25/32 x 1-5/8 x 16 Gauge (AYP part number)

$4.99

$

In Stock, Qty 20+

0

52

Poulan 870460644

Bolt, Hex 3/8-16 x 2-3/4 (AYP part number)

$

$

Not available

55

Poulan 874760612

Bolt, Hex 3/8-16 x 3/4 (AYP part number)

$4.99

$

In Stock, only 3 left!

0

58

Poulan 817490512

Screw, Hex Washer Threaded, Rolling 5/16-18 UNC x 3/4 Type TT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

74

Poulan 532104757

Cap, Axle (AYP part number)

$4.99

$

In Stock, Qty 20+

0

75

Poulan 873800600

Locknut, Hex, Washer Insert 3/8-16 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

78

Poulan 873350600

Nut, Hex, Jam 3/8-16 (AYP part number)
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0
