PP 1438 B - Poulan Pro Lawn Tractor STEERING FRONT AXLES AND WHEELS Parts Diagram

Lawn Tractor

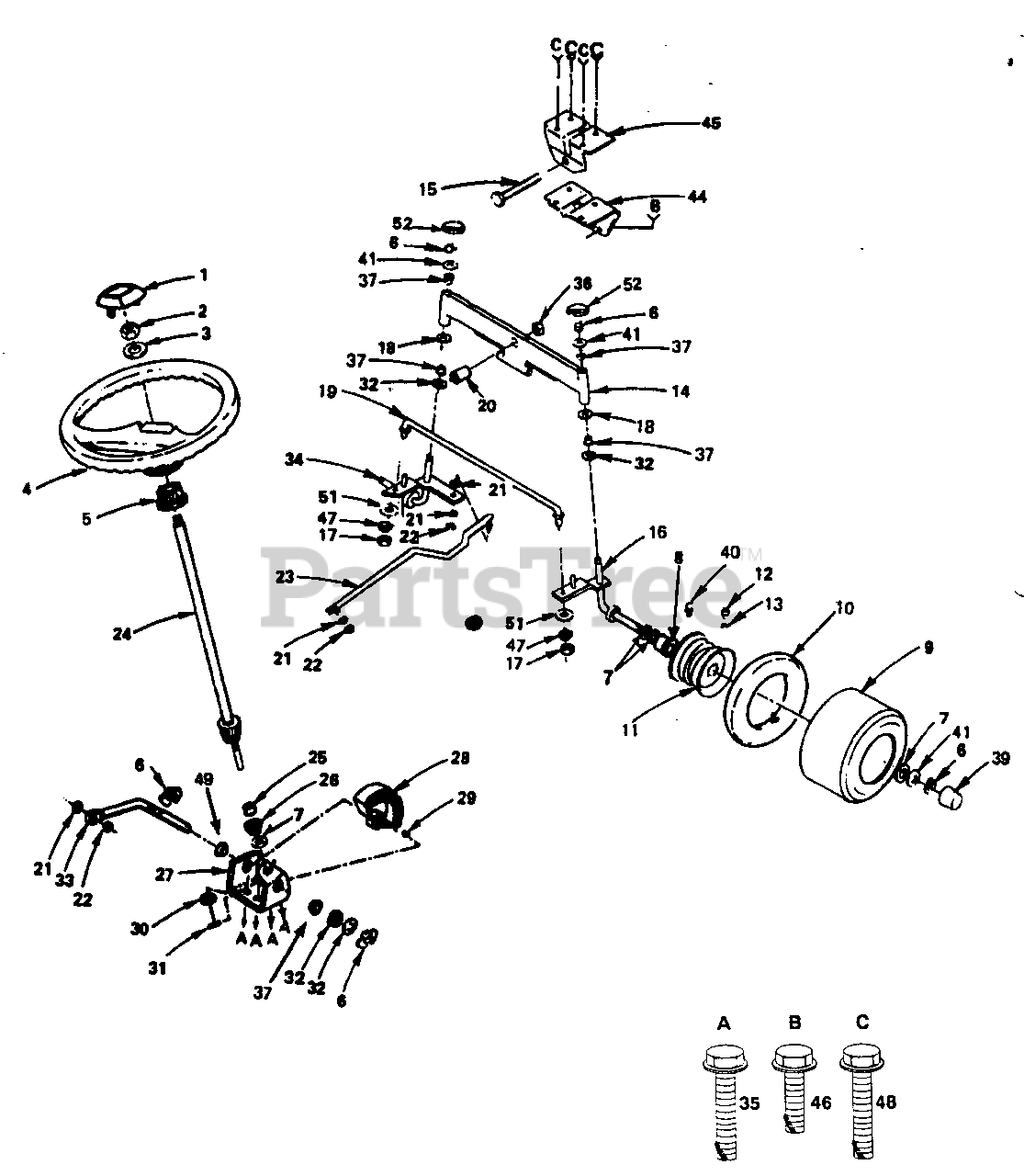

STEERING FRONT AXLES AND WHEELS Parts Diagram

  • Title

1

Poulan 532126805

Insert, Steering Wheel (AYP part number)
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

2

Poulan 873940800

Nut, Hex, Toplock Jam 1/2-20 (AYP part number)

$7.49

$

In Stock, only 4 left!

0

3

Poulan 532100712

Washer 17/32 x 2-1/4 x .160 (AYP part number)

$

$

Not available

4

Poulan 532121472

Steering Wheel (AYP part number)
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

5

Poulan 532100711

Adapter, Steering Wheel (AYP part number)
(Superseded to 532186737)

$9.49

$

In Stock, Qty 6

0

6

Poulan 812000029

Ring, Klip (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

7

Poulan 532121749

Washer 25/32 x 1-1/4 x 16 Gauge (AYP part number)

$3.49

$

Usually ships in 3-10 days

0

8

Poulan 532124959

Wheel Bearings, Front (AYP part number)
(Superseded to 532009040)

$7.99

$

In Stock, Qty 20+

0

9

Poulan 532106222

Tire (AYP part number)
(Superseded to 532122073)

$74.99

$

Usually ships in 3-10 days

0

10

Poulan 532059904

Tube, Tire

$37.99

$

In Stock, Qty 7

0

11

Poulan 532125021

Rim Assembly, Front (AYP part number)
(Superseded to 532106732)

Note: Includes 2 each Key #8

$91.99

$

In Stock, only 4 left!

0

12

Poulan 532065139

Stem, Valve (AYP part number)

$9.99

$

In Stock, only 1 left!

0

13

Poulan 532059192

Cap, Valve (AYP part number)

$7.49

$

In Stock, Qty 9

0

14

Poulan 532108075

Axle Assembly, Front (AYP part number)

$

$

Not available

15

Poulan 874761060

Bolt, Hex 5/8-11 x 3-3/4 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

16

Poulan 532105654

Spindle, Assembly, R.H. (AYP part number)
(Superseded to 532130524)

$

$

Not available

17

Poulan 873810500

Nut, Hex 5/16-24 (AYP part number)
(Superseded to 873610500)

$

$

Not available

18

Poulan 819272016

Washer 27/32 x 1-1/4 x 16 Gauge (AYP part number)

$6.49

$

In Stock, only 2 left!

0

19

Poulan 532121334

Rod, Tie (AYP part number)
(Superseded to 532130467)

$93.99

$

In Stock, only 4 left!

0

20

Poulan 532110438

Spacer, Bearing (AYP part number)
(Superseded to 532155134)

$

$

Not available

21

Poulan 810040600

Washer, Lock 3/8 (AYP part number)
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

22

Poulan 873610600

Nut, Hex 3/8-24 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 532124032

Link, Drag (AYP part number)
(Superseded to 532130468)

$93.99

$

In Stock, only 1 left!

0

24

Poulan 532128762

Shaft Assembly, Steering (AYP part number)
(Superseded to 532156544)

$91.99

$

Usually ships in 3-10 days

0

25

Poulan 532057079

Washer (AYP part number)

$6.49

$

In Stock, Qty 10

0

26

Poulan 532124035

Support, Shaft (AYP part number)
(Superseded to 532160395)

$10.99

$

In Stock, Qty 7

0

27

Poulan 532124036

Bracket, Steering (AYP part number)

$

$

Not available

28

Poulan 532124034

Gear, Sector (AYP part number)
(Superseded to 532136874)

$80.99

$

In Stock, only 1 left!

0

29

Poulan 871070410

Screw, Socket, Hex 1/4-20 x 5/8 (AYP part number)
(Superseded to 532165857)

$6.49

$

In Stock, only 3 left!

0

30

Poulan 532126684

Washer, Shim 1/4 x 5/8 x .062 (AYP part number)
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

31

Poulan 810040400

Washer, Lock 1/4 (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

32

Poulan 532124931

Bearing, Thrust (AYP part number)
(Superseded to 532006266)

$7.49

$

In Stock, Qty 8

0

33

Poulan 532124033

Shaft, Pitman (AYP part number)
(Superseded to 532127501)

$

$

Not available

34

Poulan 532105656

Spindle Assembly, L.H. (AYP part number)
(Superseded to 532156483)

$26.99

$

Usually ships in 3-10 days

0

35

Poulan 817490612

Screw, Hex Washer Head, Thread Forming 3/8 -16 x 3/4 Type TT (AYP part number)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

36

Poulan 873601000

Locknut, Flange 5/8-16 (AYP part number)
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

37

Poulan 532124937

Bearing (AYP part number)
(Superseded to 532003366)

$4.99

$

In Stock, Qty 19

0

39

Poulan 532104757

Cap, Axle (AYP part number)

$4.99

$

In Stock, Qty 20+

0

40

Poulan 532124957

Fitting, Grease (AYP part number)
(Superseded to 532000278)

$6.99

$

Usually ships in 3-10 days

0

41

Poulan 532121748

Washer 25/32 x 1-5/8 x 16 Gauge (AYP part number)

$4.99

$

In Stock, Qty 20+

0

44

Poulan 532105664

Support, Saddle, Front (AYP part number)

$9.49

$

Usually ships in 3-10 days

0

45

Poulan 532105663

Support, Saddle, Rear (AYP part number)

$

$

Not available

46

Poulan 817490508

Screw, Hex Washer Threaded, Rolling 5/16-18), (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

47

Poulan 810040500

Washer, Lock 5/16 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

48

Poulan 532122819

Screw, Special (AYP part number)

$

$

Not available

49

Poulan 532109816

Nyliner, Snap In (AYP part number)

$6.49

$

In Stock, only 2 left!

0

51

Poulan 819111216

Washer 11/32 x 3/4 x 16 Gauge (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

52

Poulan 532121232

Cap, Spindle (AYP part number)

$4.99

$

In Stock, Qty 8

0

Poulan 532127646

Decal, Steering Wheel (AYP part number)

Note: Not Shown.

$

$

Not available
