PP 1338 - Poulan Pro Lawn Tractor Mower Deck Parts Diagram

Lawn Tractor

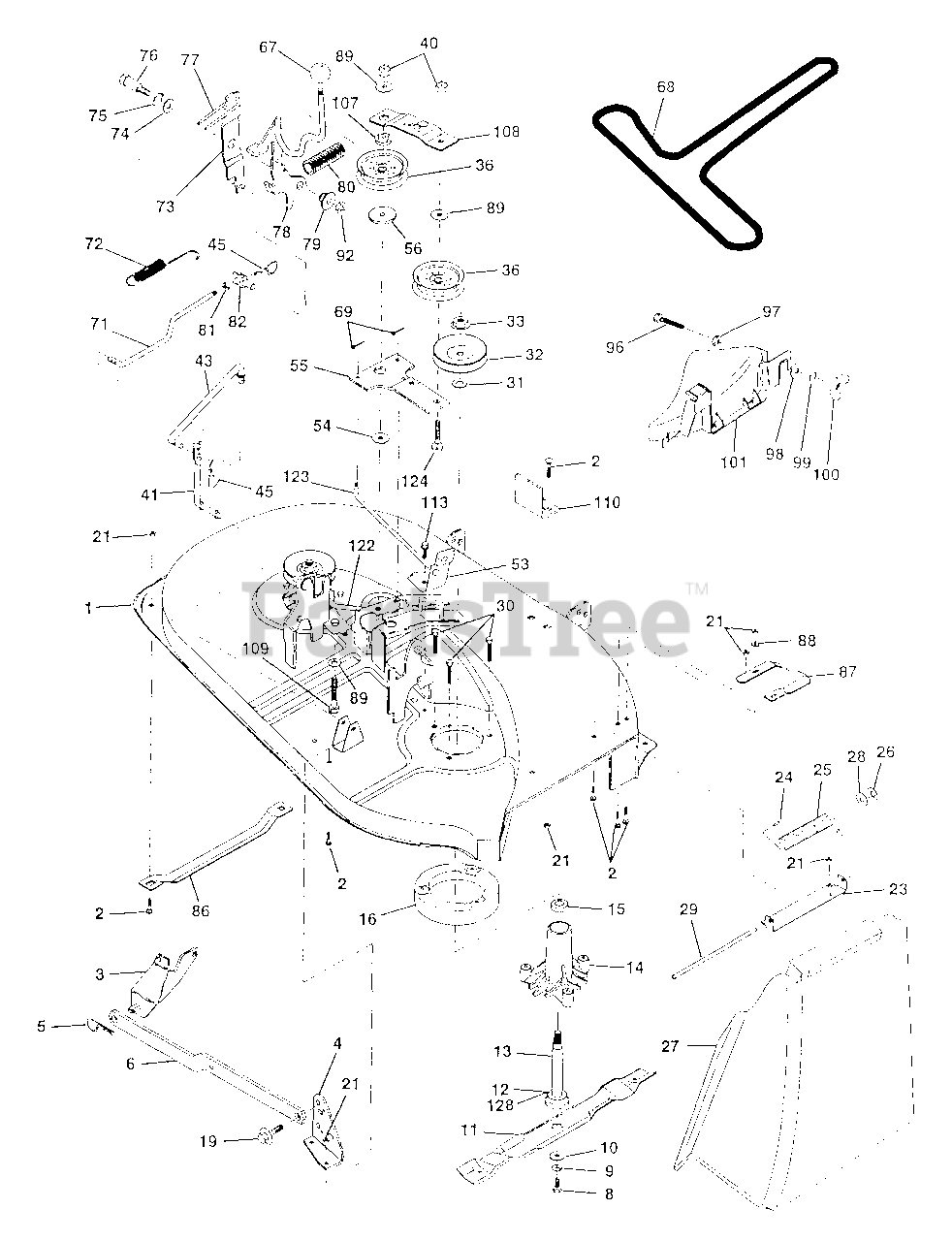

Mower Deck Parts Diagram

  • Title

1

Poulan 142829

Mower Asm 38" welded (AYP part number)

$

$

Not available

2

Poulan 72140506

Bolt Rdhd Sqnk 5/16-18 unc X 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Poulan 138017

Bracket assembly, front
(Superseded to 532138017)

$12.99

$

In Stock, only 1 left!

0

4

Poulan 138440

Bracket assembly, decl
(Superseded to 532138440)

$6.49

$

Usually ships in 3-10 days

0

5

Poulan 4939M

Retaining spring (AYP part number)

$

$

Not available

6

Poulan 130832

Arm, suspension rear (AYP part number)

$

$

Not available

8

Poulan 850857

Bolt 3/8-24 x 1 25 Gr 8 Patched
(Superseded to 532850857)

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 10030600

Washer Lock Hvy 3/8 Unplated (AYP part number)

$

$

Not available

10

Poulan 140296

Washer Hard Blade Mower Vented
(Superseded to 532140296)

$6.99

$

In Stock, only 1 left!

0

11

Poulan 134148

Blade Mulching 38"
(Superseded to 532134148)

$26.99

$

In Stock, only 2 left!

0

12

Poulan 129895

Bearing Ball #6204 (Mandrel)
(Superseded to 532129895)

$17.99

$

In Stock, only 2 left!

0

13

Poulan 137645

Shaft Asm W/lower Bearing (AYP part number)

$

$

Not available

14

Poulan 128774

Housing Mandrel Vented (machd)
(Superseded to 532128774)

$34.99

$

In Stock, only 1 left!

0

15

Poulan 110485X

Bearing Ball Mandrel
(Superseded to 532110485)

$13.99

$

In Stock, Qty 6

0

16

Poulan 140329

Stripper MWR (AYP part number)
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

19

Poulan 132827

Bolt Shoulder
(Superseded to 532132827)

$

$

Not available

21

Poulan 73680500

Nut Crownlock 5/16-18 Unc
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

Poulan 137607

Bracket Deflector Mower
(Superseded to 532137607)

$6.49

$

In Stock, only 2 left!

0

24

Poulan 105304X

Cap Sleeve 80 x 112 Blk Mower
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

25

Poulan 123713X

Spring Deflector
(Superseded to 532123713)

$7.99

$

In Stock, only 3 left!

0

26

Poulan 110452X

Nut Push Phos & Oil
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 106736X

Shield Deflector Mower 38" blk (AYP part number)
(Superseded to 532106736)

$

$

Not available

28

Poulan 19111016

Washer 11/32 X 5/8 X 16 Ga
(Superseded to 819111016)

$3.99

$

In Stock, Qty 18

0

29

Poulan 106735X

Rod Hinge Brt/blk Zinc 9 88 Lg
(Superseded to 532106735)

$10.99

$

In Stock, only 1 left!

0

30

Poulan 138776

Screw Thdrol Hex Head Zinc Mwr (AYP part number)
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Poulan 129963

Washer Spacer Mower Vented (AYP part number)
(Superseded to 532187690)

$4.99

$

In Stock, only 2 left!

0

32

Poulan 153532

Pulley Mandrel 38" (AYP part number)
(Superseded to 532173435)

$22.99

$

In Stock, Qty 8

0

33

Poulan 137266

Nut 9/16 top Lock Flng Cntr
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

36

Poulan 131494

Pulley Idler Flat 3 060 (AYP part number)
(Superseded to 597025001)

$26.99

$

In Stock, Qty 7

0

40

Poulan 73680600

Nut Crownlock 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 133551

Rod Pivot W/nibs
(Superseded to 532133551)

$8.99

$

In Stock, only 1 left!

0

43

Poulan 133504

Rod Clutch Secondary W/nibs
(Superseded to 532133504)

$

$

Not available

45

Poulan 4497H

Spring Retainer 1" Zinc/cad
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

53

Poulan 130840

Brake Asm Mower Vented
(Superseded to 532130840)

$12.99

$

Usually ships in 3-10 days

0

54

Poulan 133943

Washer Hardened (AYP part number)
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

55

Poulan 133840

Arm Idler 38"
(Superseded to 532133840)

$

$

Not available

56

Poulan 122052X

Spacer Retainer Pm Mower
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

67

Poulan 106932X

Knob Round
(Superseded to 532106932)

$7.99

$

In Stock, Qty 5

0

68

Poulan 144200

V-Belt Mower
(Superseded to 532144200)

$45.99

$

Usually ships in 3-10 days

0

69

Poulan 76020312

Pin Cotter 3/32 X 3/4 Cad
(Superseded to 539003145)

$133.99

$

Usually ships in 3-10 days

0

71

Poulan 142427

Rod Clutch Primary 38/42

$

$

Not available

72

Poulan 131870

Spring Return
(Superseded to 532131870)

$18.99

$

In Stock, only 1 left!

0

73

Poulan 127847

Arm Clutch Secondary
(Superseded to 532127847)

$2.99

$

Usually ships in 3-10 days

0

74

Poulan 121748X

Washer 25/32 X 1-5/8 X 16 Ga
(Superseded to 532121748)

$4.99

$

In Stock, Qty 10

0

75

Poulan 12000029

Ring Klip #t5304-75
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

76

Poulan 128903

Bolt Shoulder 3/8-16 Unc 1 44
(Superseded to 532128903)

$6.99

$

In Stock, only 2 left!

0

77

Poulan 127845

Keeper Spring 4 000

$

$

Not available

78

Poulan 154809

Arm Asm Clutch Primary

$

$

Not available

79

Poulan 127498

Bushing 747 Od X 794 Lg Brass
(Superseded to 532127498)

$

$

Not available

80

Poulan 153701

Spring Clutch Mower
(Superseded to 532153701)

$

$

Not available

81

Poulan 73350600

Nut Hex Jam 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

82

Poulan 142028

Trunnion Adj '94
(Superseded to 532142028)

$

$

Not available

86

Poulan 7631J

Runner Mower LH 10 00
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

87

Poulan 128772

Runner RH 38"
(Superseded to 532128772)

$

$

Not available

88

Poulan 19111216

Washer 11/32 X 3/4 X 16 Ga

$0.99

$

Usually ships in 3-10 days

0

89

Poulan 19131612

Washer 13/32 X 1 X 12 Ga
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

92

Poulan 73800600

Nut Lock Hex W/ins. 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

96

Poulan 74930620

Bolt 3/8-16 x 1-1/4 Mulcher
(Superseded to 874930620)

$3.99

$

Usually ships in 3-10 days

0

97

Poulan 73930600

Nut Centerlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

98

Poulan 19132016

Washer 13/32 x 1-1/4 x 16 Ga. (AYP part number)

$

$

Not available

99

Poulan 10040600

Washer Lock Hvy Hlcl Spr. 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

100

Poulan 135651

Nut Wing
(Superseded to 532135651)

$3.99

$

Usually ships in 3-10 days

0

101

Poulan 132803

Cover Asm Mulcher 38"
(Superseded to 532132803)

$66.99

$

Usually ships in 3-10 days

0

107

Poulan 133502

Spacer Arm Idler Upper Hdn 42"
(Superseded to 532133502)

$6.49

$

In Stock, only 1 left!

0

108

Poulan 133503

Stiffener Arm Idler Upper 42"
(Superseded to 532133503)

$6.49

$

Usually ships in 3-10 days

0

109

Poulan 74760640

Bolt Hex Fin 3/8-16 x 2-1/2
(Superseded to 874760640)

$

$

Not available

110

Poulan 142587

Upstop Deck front

$2.49

$

Usually ships in 3-10 days

0

113

Poulan 17490512

Screw Thdrol 5/16-18 X 3/4 TYT
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

122

Poulan 131289

Rod Brake Mandrel LH 4 856
(Superseded to 532131289)

$

$

Not available

123

Poulan 131288

Rod Brake Mandrel RH 10 744
(Superseded to 532131288)

$8.99

$

Usually ships in 3-10 days

0

124

Poulan 72110614

Bolt Rdhd 3/8-16 unc x 1-3/4 Gr 5
(Superseded to 872110614)

$4.99

$

In Stock, only 1 left!

0

128

Poulan 153390

Washer Felt
(Superseded to 532153390)

$6.49

$

In Stock, only 3 left!

0

Poulan 130794

Mandrel Asm Service
(Superseded to 532130794)

Note: Includes Key Nos. 12-15, 8-10, 31 and 33

$56.99

$

In Stock, Qty 7

0

Poulan 142820

Deck Serv 38" mech Vent Eng/FR

$

$

Not available
