PP 1338 D - Poulan Pro Lawn Tractor (2000) Steering Assembly Parts Diagram

Lawn Tractor

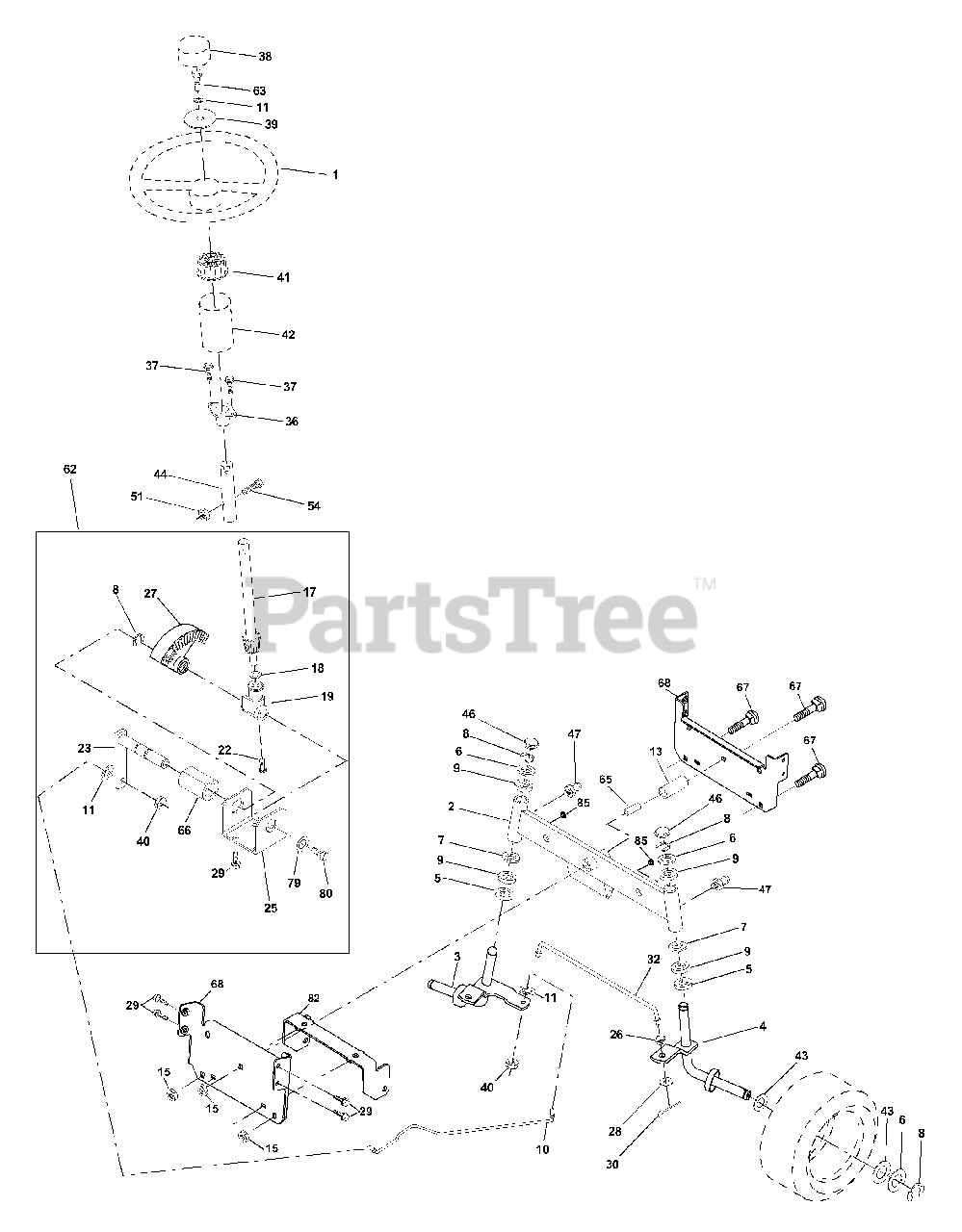

Steering Assembly Parts Diagram

  • Title

1

Electrolux/AYP 121472X

Wheel Steering Auto Black

$

$

Not available

2

Electrolux/AYP 154427

Axle Asm Front
(Superseded to 532418168)

$46.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 169840

Spindle Asm Lh
(Superseded to 596873901)

$18.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 169839

Spindle Asm Rh
(Superseded to 596873801)

$31.99

$

In Stock, only 1 left!

0

5

Electrolux/AYP 6266H

Bearing Race Thrust Harden
(Superseded to 532006266)

$7.49

$

In Stock, Qty 8

0

6

Electrolux/AYP 121748X

Washer 25/32 X 1 5/8 X 16ga
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 19272016

Washer 27/32 X 1 1/4 X 16 Ga
(Superseded to 819272016)

$6.49

$

In Stock, only 2 left!

0

8

Electrolux/AYP 12000029

Ring Klip #t5304-75
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 3366R

Bearing Col Strg Blk
(Superseded to 532003366)

$4.99

$

In Stock, Qty 19

0

10

Electrolux/AYP 169832

Link Drag Extended
(Superseded to 532169832)

$80.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 10040600

Lockwasher
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 136518

Spacer Bearing Axle Front
(Superseded to 532136518)

$9.99

$

Usually ships in 3-10 days

0

15

Murray 145212

Hex Flange Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 156546

Shaft Asm Strg 5/8 X 15 19 Lt
(Superseded to 532156546)

$35.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 57079

Washer Thrust 515x 750x 033
(Superseded to 532057079)

$6.49

$

In Stock, Qty 10

0

19

Electrolux/AYP 160395

Support Shaft
(Superseded to 532160395)

$10.99

$

In Stock, Qty 7

0

22

Electrolux/AYP 165857

Screw Hex Wsh Hd Torx
(Superseded to 532165857)

$6.49

$

In Stock, only 3 left!

0

23

Electrolux/AYP 165851

Shaft Asm Pittman
(Superseded to 532165851)

$22.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 154406

Bracket Steering
(Superseded to 532154406)

$8.99

$

In Stock, only 1 left!

0

26

Electrolux/AYP 126847X

Bushing Rod Tie Blk Lt
(Superseded to 532126847)

$5.99

$

In Stock, only 2 left!

0

27

Electrolux/AYP 136874

Gear Sector
(Superseded to 532136874)

$80.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 19131416

Washer 13/32 X 7/8 X 16ga
(Superseded to 819131414)

$6.49

$

In Stock, only 2 left!

0

29

Electrolux/AYP 17060612

Screw 3/8-16x3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

30

Electrolux/AYP 76020412

Pin
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

32

Electrolux/AYP 130465

Rod Tie Wire Form 19 75 Mech
(Superseded to 532192757)

$34.99

$

In Stock, only 2 left!

0

36

Murray 155099

Bushing Strg 5/8 Id Dash
(Superseded to 532155106)

$10.99

$

In Stock, Qty 12

0

37

Electrolux/AYP 152927

Screw TT #10-32 x 5 x 3/8 Flange
(Superseded to 532152927)

$7.49

$

In Stock, only 2 left!

0

38

Electrolux/AYP 126805X

Insert Cap Strg
(Superseded to 532126805)

$

$

Not available

39

Electrolux/AYP 19133812

Washer 13/32 x 2-3/8 x 12Ga
(Superseded to 583789501)

$

$

Not available

40

Electrolux/AYP 7810H

Locknut Center
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 100711L

Adaptor Wheel Strg 640/ 635id
(Superseded to 587738905)

$9.49

$

In Stock, Qty 6

0

42

Electrolux/AYP 145054X428

Boot Dash Steering
(Superseded to 532169633)

$

$

Not available

43

Electrolux/AYP 121749X

Washer 25/32 X 1 1/4 X 16 Ga
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 153720

Extension Steering Non-Adjust
(Superseded to 532153721)

$

$

Not available

46

Electrolux/AYP 121232X

Cap Spindle Fr Top Blk
(Superseded to 532121232)

$4.99

$

In Stock, Qty 8

0

47

Electrolux/AYP 6855M

Fitting Grease
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

51

Electrolux/AYP 73800500

Nut Lock Hex W/Ins.
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

54

Electrolux/AYP 74780520

Bolt Fin Hex 5/16-18 Unc P
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 167902

Kit Steering Assembly Service
(Superseded to 584371701)

$136.99

$

In Stock, only 1 left!

0

63

Electrolux/AYP 74780616

Bolt Fin Hex 3/8-16unc x Gr. 5
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 160367

Spacer Brace Axle
(Superseded to 532414736)

$6.99

$

In Stock, only 4 left!

0

66

Electrolux/AYP 154404

Bearing Arm Pittman
(Superseded to 532154404)

$6.49

$

In Stock, only 3 left!

0

67

Electrolux/AYP 72140618

Bolt Rdhd Sq 3/8-16 Unc x 2-3/4
(Superseded to 872110618)

$6.49

$

In Stock, only 2 left!

0

68

Electrolux/AYP 169827

Brace Axle
(Superseded to 532169827)

$21.99

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 19132012

Washer 13/32 x 1-1/4 x 12 Ga
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

80

Electrolux/AYP 74950612

Bolt Hex Nylon 3/8-16 x 3/4
(Superseded to 874950612)

$6.49

$

In Stock, only 3 left!

0

82

Electrolux/AYP 169835

Bracket Susp Chassis Front
(Superseded to 532199978)

$15.99

$

Usually ships in 3-10 days

0

85

Electrolux/AYP 133835

Fastener Christmas Tree
(Superseded to 532133835)

$7.49

$

Usually ships in 3-10 days

0
