PP 1338 A - Poulan Pro Lawn Tractor Mower Lift Parts Diagram

Lawn Tractor

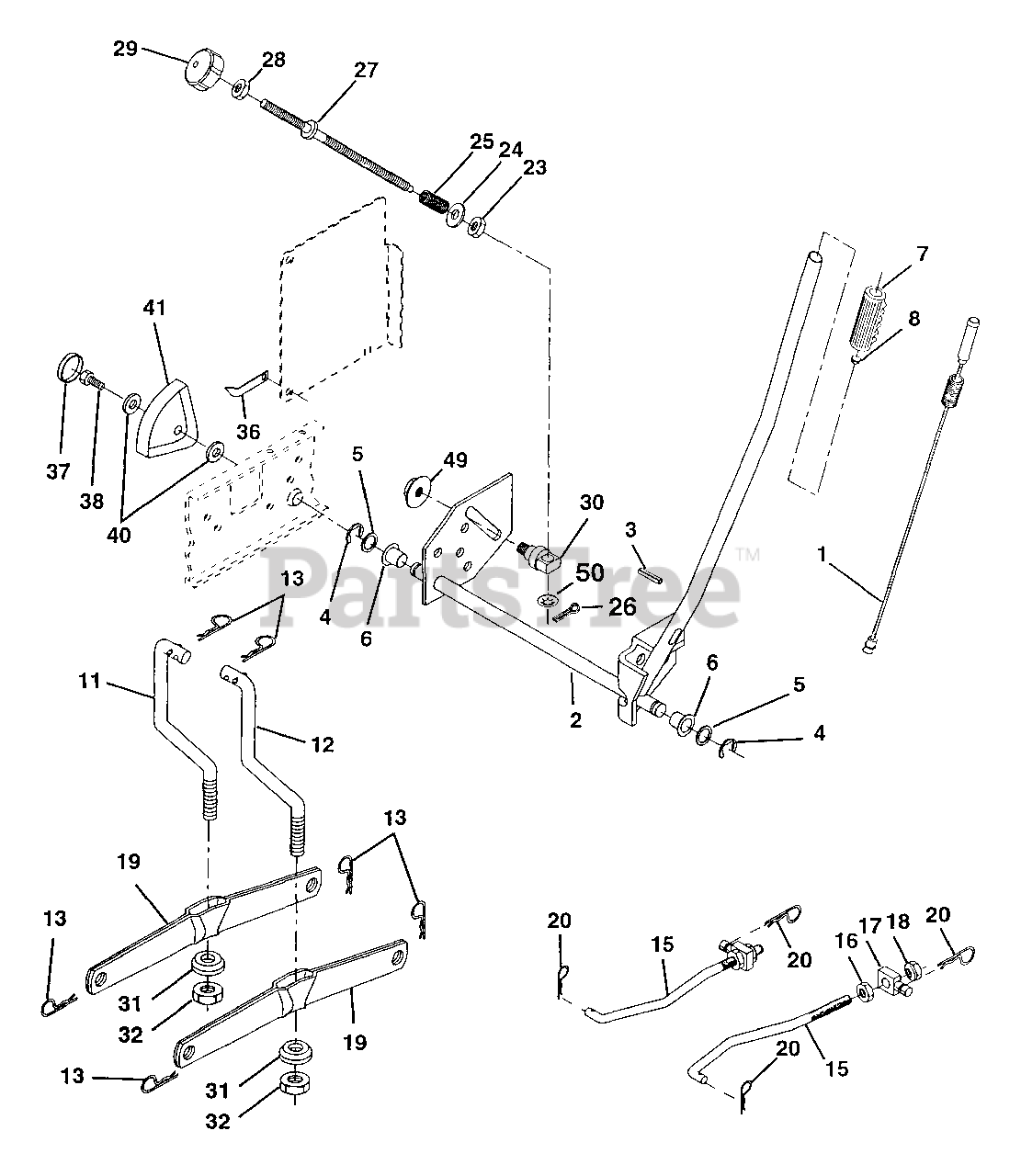

Mower Lift Parts Diagram

  • Title

1

Poulan 159460

Wire Asm Inner W/plunger
(Superseded to 532159460)

$26.99

$

Usually ships in 3-10 days

0

2

Poulan 159471

Shaft Asm Lift RH
(Superseded to 532159471)

$54.99

$

Usually ships in 3-10 days

0

3

Poulan 105767X

Pin Groove 1 500 Zinc
(Superseded to 532105767)

$6.49

$

In Stock, only 3 left!

0

4

Poulan 12000002

E Ring #5133-62 (AYP part number)

$

$

Not available

5

Poulan 19211621

Washer 21/32 X 1 X 21 Ga
(Superseded to 819211621)

$6.49

$

In Stock, only 2 left!

0

6

Poulan 120183X

Bearing Nylon Blk 629 Id
(Superseded to 532120183)

$6.99

$

In Stock, only 4 left!

0

7

Poulan 109413X

Grip Handle Bicycle Matte Blk
(Superseded to 532109413)

$7.99

$

In Stock, only 1 left!

0

8

Poulan 124526X

Button Plunger Black (AYP part number)

$

$

Not available

10

Poulan 122512X

Spring Cprsn 3 750 Oiled (AYP part number)

$

$

Not available

11

Poulan 532139865

Link Lift LH Fixed Length (AYP part number)
(Superseded to 532145537)

$26.99

$

In Stock, only 1 left!

0

12

Poulan 139866

Link Lift RH Fixed Length
(Superseded to 532145536)

$26.99

$

In Stock, only 3 left!

0

13

Poulan 4939M

Retainer Spring (AYP part number)

$

$

Not available

15

Poulan 127218

Link Front
(Superseded to 532127218)

$17.99

$

In Stock, only 4 left!

0

16

Poulan 73350800

Nut Jam Hex 1/2-13 Unc
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

17

Poulan 130171

Trunnion Blk Zinc (AYP part number)
(Superseded to 532175689)

$

$

Not available

18

Poulan 73800800

Nut Lock W/wsh 1/2-13 unc (AYP part number)
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

19

Poulan 139868

Arm Suspension Rear
(Superseded to 532139868)

$15.99

$

Usually ships in 3-10 days

0

20

Poulan 3146R

Retainer Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

23

Poulan 110807X

Nut Special
(Superseded to 532110807)

$

$

Not available

24

Poulan 19131016

Washer 13/32 X 5/8 X 16 Ga
(Superseded to 819131016)

$6.49

$

In Stock, Qty 5

0

25

Poulan 2876H

Spring 2-1/8"
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

26

Poulan 76020308

Pin Cotter 3/32 X 1/2 (AYP part number)

$

$

Not available

27

Poulan 126971X

Rod Adj Lift Zinc 7.49 Wrk Lg (AYP part number)

$

$

Not available

28

Poulan 73350600

Nut Hex Jam 3/8-16 Unc
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

29

Poulan 138057

Knob Inf 3/8-16 Unc Blk W/sym
(Superseded to 532138057)

$8.99

$

Usually ships in 3-10 days

0

30

Poulan 150233

Trunnion Infin Height
(Superseded to 532150233)

$12.99

$

Usually ships in 3-10 days

0

31

Poulan 532140302

Bearing Pvt Lift Spherical (AYP part number)
(Superseded to 532169865)

$

$

Not available

32

Poulan 73540600

Nut Crownlock 3/8 - 24 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

36

Poulan 155097

Pointer Height Indicator
(Superseded to 532155097)

$

$

Not available

37

Poulan 123935X

Plug Hole Blk 1.485/1.515 Dia.
(Superseded to 532123935)

$5.99

$

Usually ships in 3-10 days

0

38

Poulan 17490512

Screw Thdrol 5/16-18 x 3/4
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

40

Poulan 19112410

Washer 11/32 x 1-1/2 10 Ga.
(Superseded to 819112410)

$6.49

$

Usually ships in 3-10 days

0

41

Poulan 123934X

Indicator Height
(Superseded to 532123934)

$

$

Not available

49

Poulan 145212

Nut Hex Flange Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

50

Poulan 110452X

Nut Push Phos & Oil
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0
