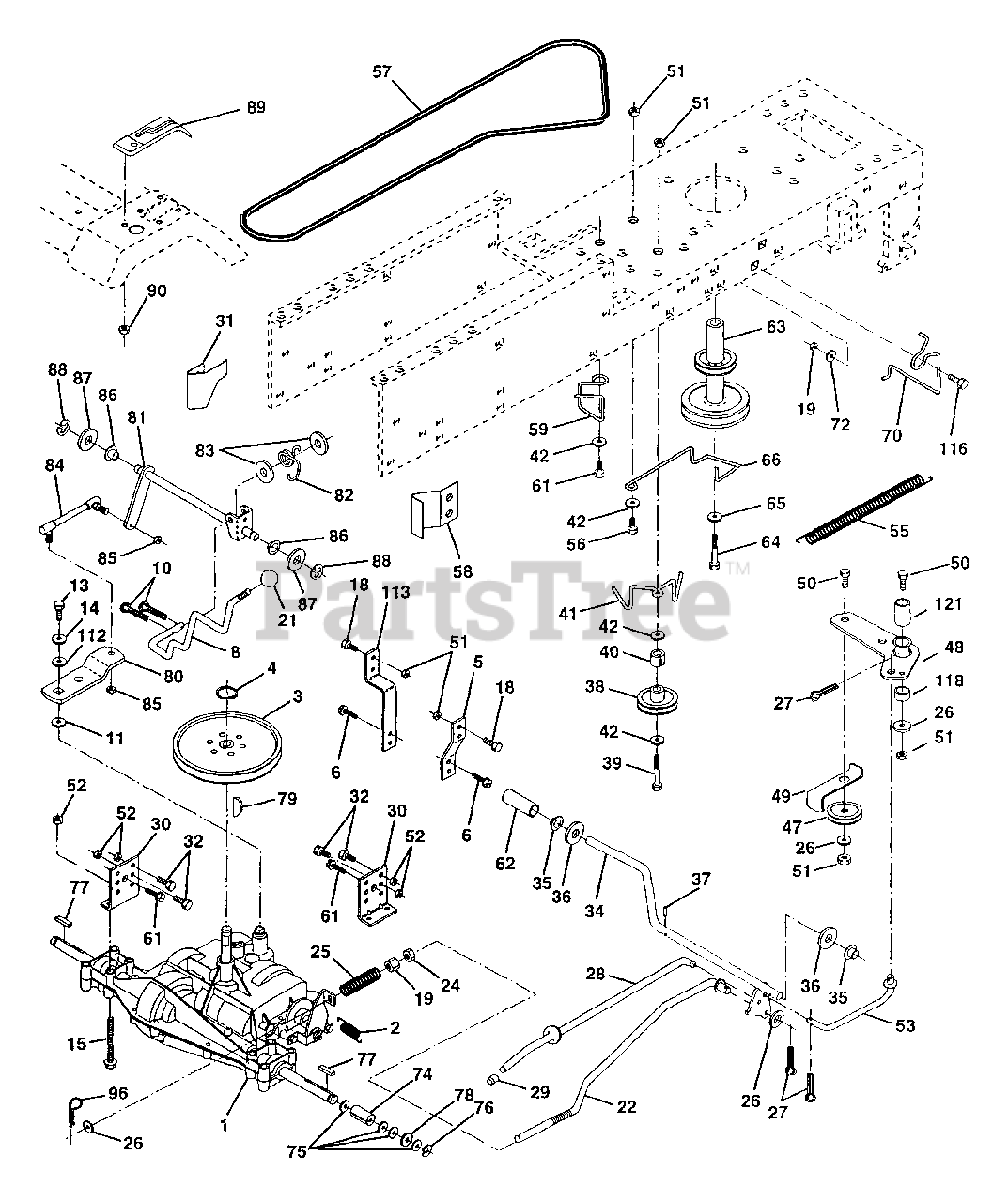

PP 1338 A - Poulan Pro Lawn Tractor Drive Parts Diagram

Lawn Tractor

Drive Parts Diagram

  • Title

1

Transaxle

Note: See "Peerless Transaxle" (Peerless 930-055A) illustration and parts list

$

$

Not available

2

Poulan 146682

Spring Return Brake T/a Zinc
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

3

Poulan 123666X

Pulley Transaxle 18" tires
(Superseded to 532123666)

$45.99

$

In Stock, only 1 left!

0

4

Poulan 12000028

Ring Retainer # 5100-62 (AYP part number)

$0.99

$

Usually ships in 3-10 days

0

5

Poulan 121520X

Strap Torque 30 Degrees
(Superseded to 532121520)

$7.99

$

In Stock, only 3 left!

0

6

Poulan 17490512

Screw Thdrol 5/16-18 X 3/4 TYT
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

8

Poulan 141003

Rod Shifter

$

$

Not available

10

Poulan 76020416

Pin Cotter 1/8 X 1 Cad

$2.99

$

Usually ships in 3-10 days

0

11

Poulan 105701X

Washer Plate Shf 388 Sq Hole
(Superseded to 532105701)

$6.49

$

Usually ships in 3-10 days

0

13

Poulan 74550412

Bolt 1/4-28 Unf Gr 8 W/Patch
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

14

Poulan 10040400

Washer Lock Hvy Helical 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

15

Poulan 74490544

Bolt Hex 5/16-18 Gr. 5
(Superseded to 874490544)

$4.99

$

Usually ships in 3-10 days

0

18

Poulan 74780616

Bolt, Fin Hex 3/8-16 UNC x 1 Gr. 5
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 73800600

Nut Lock 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 106933X

Knob
(Superseded to 532106933)

$7.99

$

In Stock, only 1 left!

0

22

Poulan 130804

Rod Brake Blk Zinc 26 840
(Superseded to 532130804)

$31.99

$

Usually ships in 3-10 days

0

24

Poulan 73350600

Nut Hex Jam 3/8-16 Unc
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Poulan 106888X

Spring Rod Brake 2 00 Zinc
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Poulan 19131316

Washer 13/32 X 13/16 X 16 Ga
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

27

Poulan 76020412

Pin Cotter 1/8 X 3/4 Cad
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

28

Poulan 145204

Rod Brake Parking LT/YT

$

$

Not available

29

Poulan 71673

Cap Brake Parking
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

30

Poulan 130807

Bracket Mtg Transaxle
(Superseded to 532130807)

$3.99

$

Usually ships in 3-10 days

0

31

Poulan 127275X

Keeper Belt LH LT 14 Ga

$

$

Not available

32

Poulan 74760512

Bolt Hex Hd 5/16-18 unc X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

34

Poulan 155071

Shaft Asm Pedal Foot
(Superseded to 532155071)

$

$

Not available

35

Poulan 120183X

Bearing Nylon Blk 629 Id
(Superseded to 532120183)

$6.99

$

In Stock, only 4 left!

0

36

Poulan 19211616

Washer 21/32 X 1 X 16 Ga
(Superseded to 819211616)

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 1572H

Pin Roll 3/16 X 1" (AYP part number)

$

$

Not available

38

Poulan 123674

Pulley Idler Flat (AYP part number)

$

$

Not available

39

Poulan 74760644

Bolt Fin Hex 3/8-16 unc X 2-3/4
(Superseded to 874760644)

$6.49

$

Usually ships in 3-10 days

0

40

Poulan 4470J

Spacer Split 395 X 59 Bzp
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

41

Poulan 154777

Keeper Belt Retainer Idler Foolproof
(Superseded to 532165838)

$

$

Not available

42

Poulan 19131312

Washer 13/32 X 13/16 X 12 Ga
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

47

Poulan 127783

Pulley Idler V Groove Plastic (AYP part number)

$

$

Not available

48

Poulan 154604

Bellcrank Asm
(Superseded to 532154604)

$

$

Not available

49

Poulan 123205X

Retainer Belt Style Spring
(Superseded to 532123205)

$6.49

$

Usually ships in 3-10 days

0

50

Poulan 74760624

Bolt Hex Hd 3/8-16 unc X 1-1/2 (AYP part number)

$

$

Not available

51

Poulan 73680600

Nut Crownlock 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

52

Poulan 73680500

Nut Crownlock 5/16-18 Unc
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

53

Poulan 105710X

Link Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Poulan 532105709

X Spring Return Clutch 6 75 (AYP part number)

$11.99

$

In Stock, only 2 left!

0

56

Poulan 74760620

Bolt Fin Hx 3/8-16 X 1/4
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

57

Poulan 130801

V-Belt Ground Drive 95 25
(Superseded to 532138255)

$39.99

$

In Stock, Qty 7

0

58

Poulan 127274X

Keeper Belt RH LT Pnt/zinc 16g
(Superseded to 532127274)

$4.99

$

Usually ships in 3-10 days

0

59

Poulan 532140312

Keeper Belt Span Ctr (AYP part number)
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

61

Poulan 17490612

Screw Thdrol 3/8-16 x 3/4 Ty-tt
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

62

Poulan 8883R

Cover Pedal Blk Round
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

63

Poulan 140186

Engine Pulley LT/YT
(Superseded to 532140186)

$113.99

$

Usually ships in 3-10 days

0

64

Poulan 71170764

Bolt Hex (AYP part number)
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

65

Poulan 10040700

Washer Lock Hvy Hlcl Spr 7/16
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

66

Poulan 154778

Keeper Belt Engine Foolproof
(Superseded to 532154778)

$12.99

$

Usually ships in 3-10 days

0

70

Poulan 134683

Guide Belt Mower Drive RH
(Superseded to 532134683)

$

$

Not available

72

Poulan 19132012

Washer 13/32 X 1-1/4 X 12 Ga
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

74

Poulan 137057

Spacer Axle
(Superseded to 532137057)

$7.49

$

In Stock, only 3 left!

0

75

Poulan 121749X

Washer 25/32 X 1 1/4 X 16 Ga
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

76

Poulan 12000001

E-ring #5133-75
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

77

Poulan 123583X

Key Square 2 0 X 1845/1865
(Superseded to 532123583)

$4.99

$

In Stock, Qty 7

0

78

Poulan 121748X

Washer 25/32 X 1-5/8 X 16 Ga
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

79

Poulan 2228M

Key Woodruff #9 3/16 x 3/4 (AYP part number)

$

$

Not available

80

Poulan 131486

Arm Shift
(Superseded to 532131486)

$7.99

$

Usually ships in 3-10 days

0

81

Poulan 136932

Shaft Asm Cross 18"t
(Superseded to 584314001)

$21.99

$

Usually ships in 3-10 days

0

82

Poulan 123782X

Spring Torsion T/a
(Superseded to 532123782)

$

$

Not available

83

Poulan 19171216

Washer 17/32 X 3/4 X 16 Ga

$2.99

$

Usually ships in 3-10 days

0

84

Poulan 123793X

Rod Shift
(Superseded to 532166230)

$28.99

$

Usually ships in 3-10 days

0

85

Poulan 150360

Nut Lock Center 1/4-28 FNTHD
(Superseded to 532150360)

$

$

Not available

86

Poulan 71208

Bushing Rod Strg 629/632 Id
(Superseded to 532071208)

$3.99

$

Usually ships in 3-10 days

0

87

Poulan 19212016

Washer 21/32 X 1-1/4 X 16 Ga
(Superseded to 819212016)

$6.49

$

Usually ships in 3-10 days

0

88

Poulan 12000008

Ring Klip #5304-62
(Superseded to 812000008)

$6.49

$

Usually ships in 3-10 days

0

89

Poulan 532139964

Console Shift STLT (AYP part number)

$

$

Not available

90

Poulan 124346X

Nut Self-thd Wsh-hd 1/4 Zinc
(Superseded to 532124346)

$7.99

$

In Stock, only 1 left!

0

96

Poulan 4497H

Retainer Spring 1"
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

112

Poulan 19091210

Washer 9/32 x 3/4 x 10 Ga.
(Superseded to 819091210)

$4.99

$

In Stock, only 2 left!

0

113

Poulan 127285X

Strap Torque LT
(Superseded to 532127285)

$

$

Not available

116

Poulan 72110610

Bolt Rdhd Sq Neck 3/8-16 x 1.25 (AYP part number)
(Superseded to 872140614)

$4.99

$

Usually ships in 3-10 days

0

118

Poulan 154774

Spacer Bellcrank

$

$

Not available

121

Poulan 154419

Nyliner Clutching STL
(Superseded to 532154419)

$

$

Not available
