PP 1338 A - Poulan Pro Lawn Tractor Chassis And Enclosures Parts Diagram

Lawn Tractor

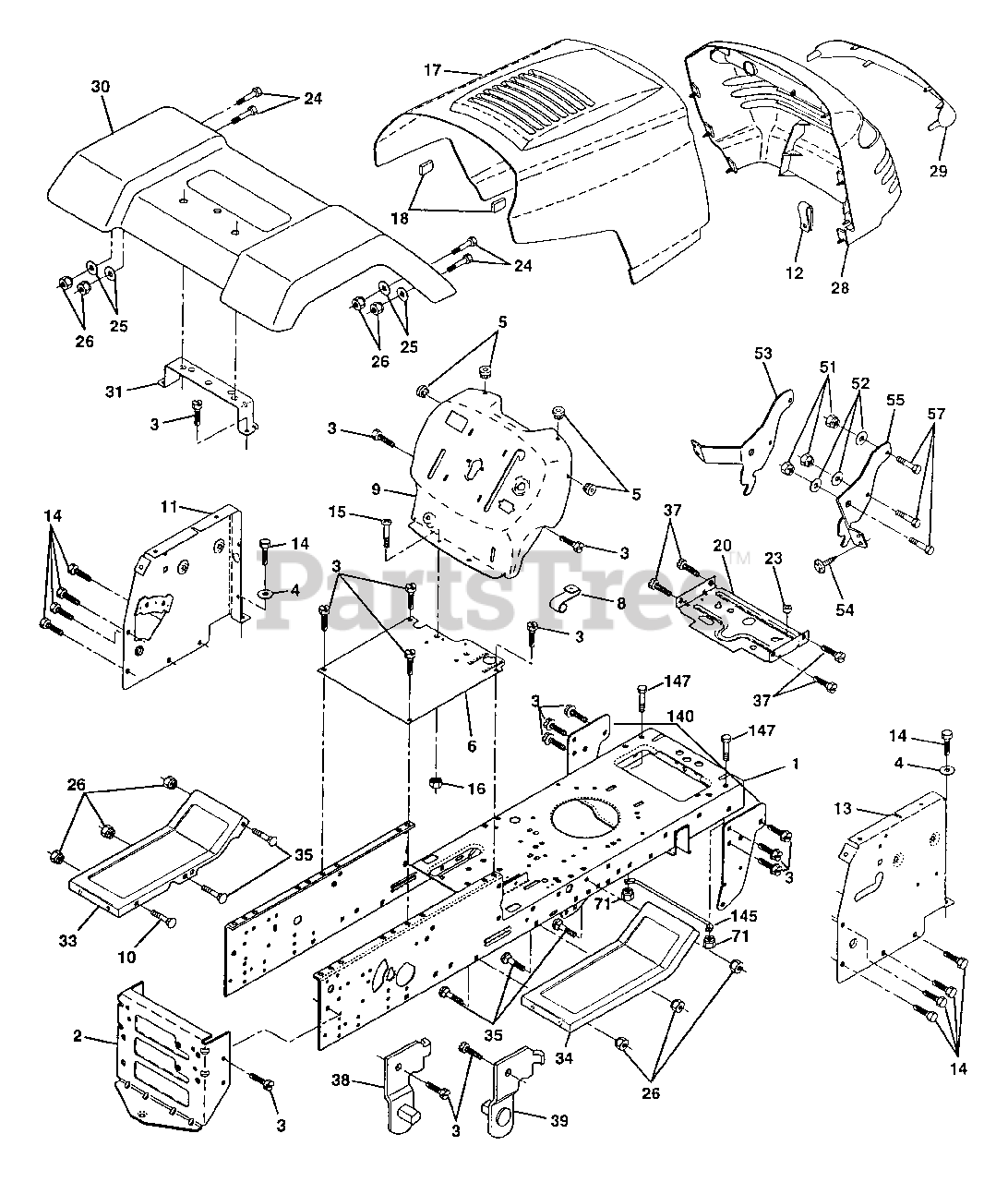

Chassis And Enclosures Parts Diagram

  • Title
1

Poulan 159530

Chassis Weldment (AYP part number)
(Superseded to 160393)

$

$

Not available

2

Poulan 140356

Drawbar, Stretch (AYP part number)

$

$

Not available

3

Poulan 17490612

Screw Thdrol 3/8-16 x 3/4 Ty-tt
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

4

Poulan 19131216

Washer 13/32 x 3/4 x 16 Ga.
(Superseded to 819131216)

$

$

Not available

5

Poulan 155272

Bumper Hood/Dash
(Superseded to 532155272)

$7.49

$

In Stock, only 3 left!

0

6

Poulan 155923

Saddle LT Fender Shift

$7.99

$

Usually ships in 3-10 days

0

8

Poulan 155138

Clip Retainer Slide-On
(Superseded to 532155138)

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 147627X011

Dash Private Label
(Superseded to 584371301)

$21.99

$

Usually ships in 3-10 days

0

10

Poulan 72140608

Bolt Carriage 3/8-16 x 1 (AYP part number)

$

$

Not available

11

Poulan 155927

Panel Dash Lh (AYP part number)
(Superseded to 174996)

$

$

Not available

12

Poulan 145660

Clip Tinnerman
(Superseded to 532145660)

$3.49

$

In Stock, only 1 left!

0

13

Poulan 155936

Panel Dash Rh
(Superseded to 172108)

$

$

Not available

14

Poulan 17490608

Screw Thdrol 3/8-16 x 1/2 Ty-tt
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

15

Poulan 74180512

Screw Mach TRHD 5/16-18 unc X 3/4
(Superseded to 874180512)

$

$

Not available

16

Poulan 73510500

Nut Keps 5/16-18 unc

$2.99

$

Usually ships in 3-10 days

0

17

Poulan 139394X428

Hood LT/PL
(Superseded to 532182408)

$80.99

$

Usually ships in 3-10 days

0

18

Poulan 126938X

Bumper Hood

$

$

Not available

20

Poulan 156437

Plate Mtg Battery Fuel Tank Fr (AYP part number)
(Superseded to 180679)

$11.99

$

Usually ships in 3-10 days

0

23

Poulan 124028X

Bushing (AYP part number)

$

$

Not available

24

Poulan 74780616

Bolt Fin Hex 3/8-16 unc X 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

25

Poulan 19131312

Washer 13/32 X 13/16 X 12 Ga
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

26

Poulan 73800600

Nut Lock Hex W/Ins 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 157373

Grille LT/PL
(Superseded to 532179101)

$

$

Not available

29

Poulan 140273

Lens LT/PL
(Superseded to 532140273)

$

$

Not available

30

Poulan 140001X421

Fender Pnt

$

$

Not available

31

Poulan 136619

Bracket Pnt Fender

$3.49

$

Usually ships in 3-10 days

0

33

Poulan 145244X421

Footrest Pnt Lh

$5.99

$

Usually ships in 3-10 days

0

34

Poulan 145243X421

Footrest Pnt Rh (AYP part number)
(Superseded to 532183080)

$

$

Not available

35

Poulan 72110606

Bolt Rdhd Sht Sqnk 3/8-16 X 3/4
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

37

Poulan 17490508

Screw Thdrol 6/16-18 x 1/2 TYT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

38

Poulan 139886

Bracket, Asm. Pivot, L.H., Mower Rear
(Superseded to 532139886)

$8.99

$

Usually ships in 3-10 days

0

39

Poulan 139887

Bracket, Asm. Pivot, R.H., Mower Rear
(Superseded to 532139887)

$

$

Not available

51

Poulan 73800400

Nut lock Hex W/Ins 1/4-20
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

52

Poulan 19091416

Washer 9/32 x 7/8 x 16 Ga.
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

53

Poulan 144697

Bracjet Grukke Lh
(Superseded to 532144697)

$

$

Not available

54

Poulan 17030814

Screw Lock Spider #8 x 7/8
(Superseded to 532161464)

$

$

Not available

55

Poulan 144696

Bracket Grille Rh
(Superseded to 532144696)

$

$

Not available

57

Poulan 74780412

Bolt Hex 1/4-20 x 3/4 (AYP part number)

$

$

Not available

71

Poulan 73680400

Nut Crownlock 1/4-20 UNC (AYP part number)
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

140

Poulan 158418

Bracket Suspension Front
(Superseded to 532158418)

$

$

Not available

145

Poulan 156524

Rod Pivot Chassis/Hood
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

147

Poulan 74760412

Bolt Hex Hd 1/4-20 UNC x 3/4
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

Poulan 5479J

Plug Btn Blk .359 Dia Ch/Inf.
(Superseded to 532005479)

$5.99

$

Usually ships in 3-10 days

0
