PP 133 - Poulan String Trimmer (2009-01) Shaft Parts Diagram

String Trimmer

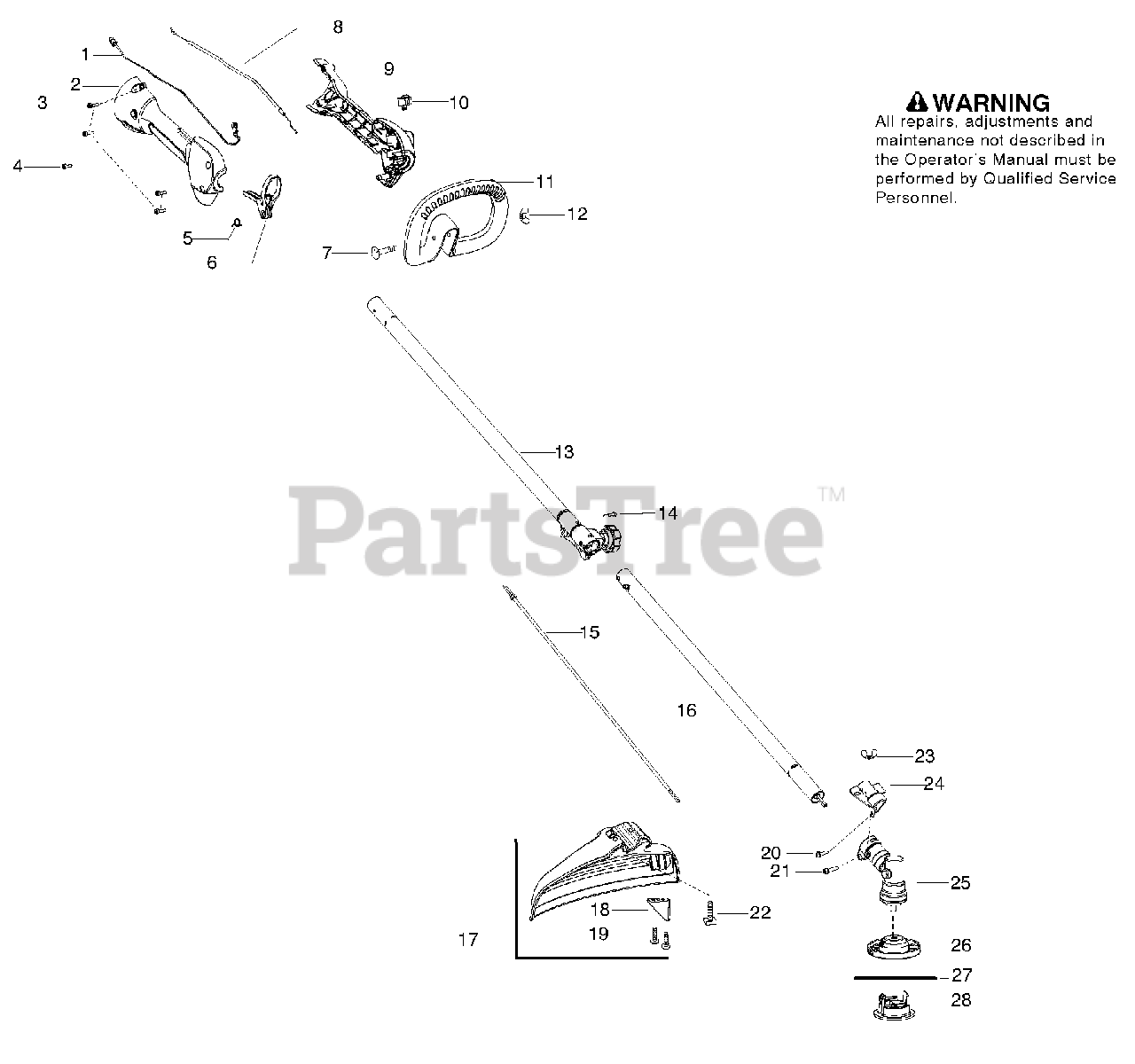

Shaft Parts Diagram

  • Title
1

Electrolux/AYP 545191801

Assy-Switch Wire

$

$

Not available

2

Electrolux/AYP 545187602

Housing-Throttle (RH)

$14.99

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, only 2 left!

0

4

Electrolux/AYP 530015805

Screw 10-14 x 1/2
(Superseded to 530015886)

$6.49

$

In Stock, only 4 left!

0

5

Electrolux/AYP 545190001

Spring-Trigger

$3.49

$

In Stock, Qty 5

0

6

Electrolux/AYP 545008073

Kit - Trigger
(Superseded to 545008077)

Note: (Incl. 5)

$

$

Not available

7

Electrolux/AYP 530015786

Bolt -1/4-20 x 2

$4.99

$

In Stock, only 4 left!

0

8

Electrolux/AYP 545199301

Assy - Throttle Cable

$

$

Not available

9

Electrolux/AYP 545187502

Housing-Throttle (LH)

$14.99

$

In Stock, only 1 left!

0

10

Electrolux/AYP 545008040

Kit-Switch
(Superseded to 545049309)

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 530058583

Assy - Handle Assist

Note: (Incl. 7,12)

$6.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 530016152

Wingnut - 1/4-20
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

13

Electrolux/AYP 545003366

Kit-Driveshaft Upper
(Superseded to 575260201)

Note: (Incl.#14)

$37.99

$

In Stock, only 1 left!

0

14

Electrolux/AYP 530016344

Screw - 12-24 x 480

$6.49

$

Usually ships in 3-10 days

0

$7.49

$

In Stock, only 1 left!

0

16

Electrolux/AYP 545180854

Kit-Driveshaft Lower

Note: (Incl. 15)

$

$

Not available

17

Electrolux/AYP 545003325

Kit-Shield

Note: (Incl. 18,19,22,23)

$27.99

$

Usually ships in 3-10 days

0

18

$

$

Not available

19

Electrolux/AYP 530015814

Screw - 10-14 x 3/4

$6.49

$

In Stock, Qty 17

0

20

Electrolux/AYP 530015775

Screw - 8-16 x .593

$6.49

$

In Stock, only 2 left!

0

21

Electrolux/AYP 530016014

Screw - 12-24 x .960

$6.49

$

In Stock, only 3 left!

0

22

Electrolux/AYP 530015820

Bolt - 1/4-20 x 1-1/4

$4.99

$

In Stock, only 1 left!

0

23

Electrolux/AYP 530016152

Wingnut - 1/4-20
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

24

Electrolux/AYP 545150701

Bracket - Shield

$5.99

$

In Stock, only 2 left!

0

25

Electrolux/AYP 530096099

Assy - Gearbox 1"

$53.99

$

In Stock, only 2 left!

0

26

Electrolux/AYP 545053902

Assy - Fixed Line Head

$37.99

$

In Stock, only 3 left!

0

27

Electrolux/AYP 952711635

Accy - Line (12 pcs )

$

$

Not available

28

Electrolux/AYP 545049501

Cap - Fixed Line

$9.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 545186846

Manual

Note: Not Shown

$6.49

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 545209101

Decal-Shaft Warning (lower)

Note: Not Shown

$

$

Not available

28

Electrolux/AYP 545167716

Decal-Shaft Warning (upper)

Note: Not Shown

$

$

Not available
