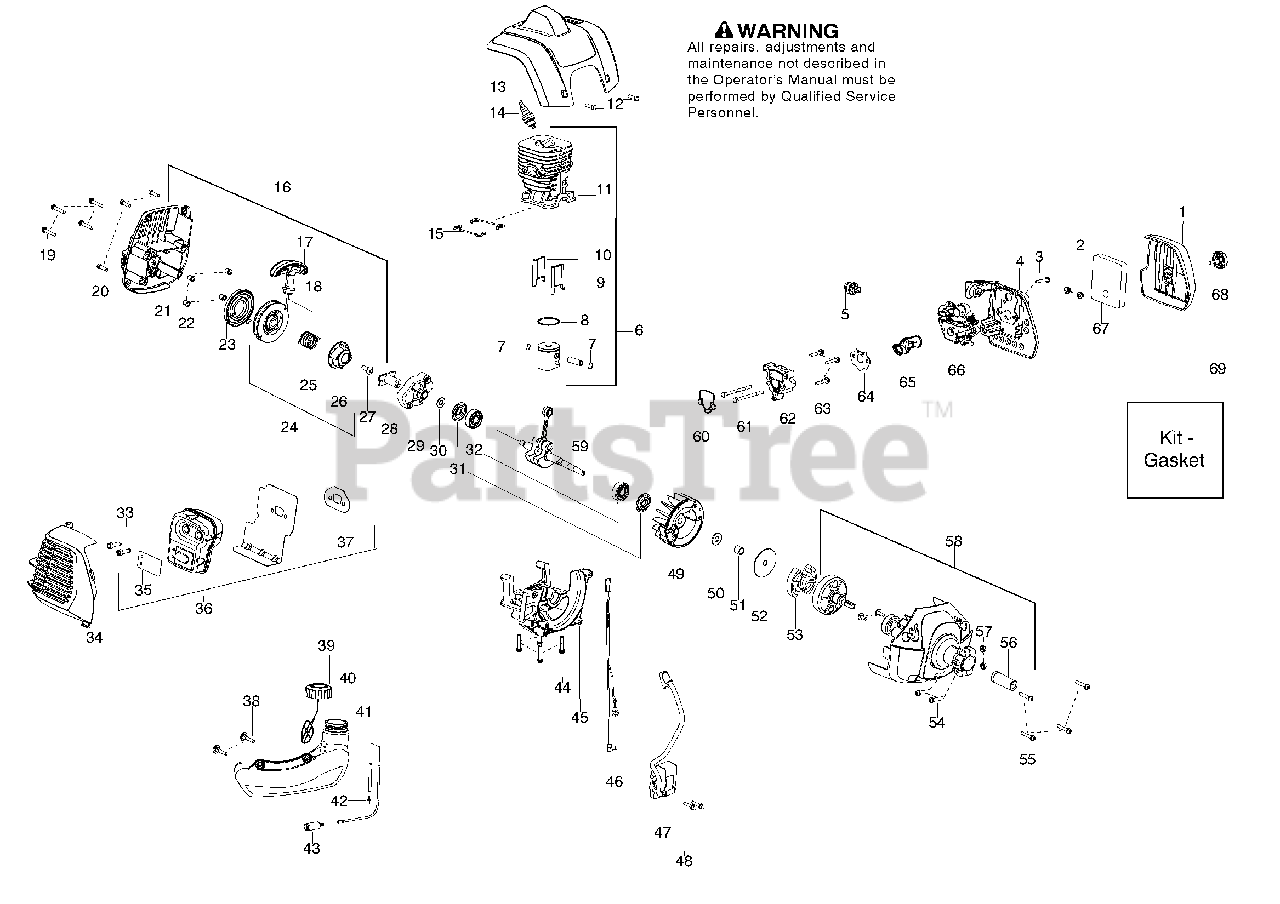

PP 133 - Poulan String Trimmer (2009-01) Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

1

Electrolux/AYP 545177001

Cover-Airbox

$

$

Not available

2

Electrolux/AYP 530016101

Nut-Carb. Screw

$6.49

$

In Stock, only 2 left!

0

3

Electrolux/AYP 530016301

Screw 8-32

$6.49

$

In Stock, only 4 left!

0

4

Electrolux/AYP 545176901

Base-Airbox

$

$

Not available

5

Electrolux/AYP 530047721

Purge Bulb

$9.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 545008046

Kit-Piston/Cyl.

Note: (Incl. 7,8,9,10,11)

$

$

Not available

7

Electrolux/AYP 545194801

Retainer-Piston pin

$3.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 545194601

Ring-Piston

$6.49

$

In Stock, only 2 left!

0

9

Electrolux/AYP 545194901

Insert-Front Transfer Port

$2.49

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 545195001

Insert-Rear Transfer Port

$

$

Not available

11

Electrolux/AYP 545181801

Cylinder-Machined

$

$

Not available

12

Electrolux/AYP 530016449

Screw M4 x 1.75 x 16mm

$6.49

$

In Stock, only 2 left!

0

13

Electrolux/AYP 545156401

Cover-Top

$6.91

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 952030249

Spark Plug (RCJ- 6Y)

$4.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 545008044

Seal-Cylinder (Kit)

$10.99

$

In Stock, only 1 left!

0

16

Electrolux/AYP 545190701

Assy-Shroud Rear

Note: (Incl. 17,18,21,22,23,24,27)

$

$

Not available

17

Electrolux/AYP 545208401

Handle-Starter

$7.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 545029901

Kit-Rope

$14.99

$

In Stock, only 2 left!

0

19

Electrolux/AYP 530015897

Screw M5 x 25mm

$6.49

$

In Stock, Qty 19

0

20

Electrolux/AYP 530016449

Screw M4 x 1.75

$6.49

$

In Stock, only 2 left!

0

21

Electrolux/AYP 545216101

Housing-Starter w/eyelet

$

$

Not available

22

Electrolux/AYP 545185301

Spacer

$3.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 545008013

Kit-Starter Spring

$6.99

$

In Stock, only 4 left!

0

24

Electrolux/AYP 545008049

Kit-Pulley

Note: (Incl 25,26)

$31.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 545188301

Spring-Starter Hub

$6.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 545188001

Hub-Starter

$6.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 545112801

Screw M6

$4.99

$

In Stock, only 3 left!

0

28

Electrolux/AYP 545188201

Coupling-Starter

$3.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 545188701

Assy-Starter Cup

$7.49

$

In Stock, only 3 left!

0

30

Electrolux/AYP 530015828

Washer-Flat

$4.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 545008044

Seal-Crankshaft (kit)

$10.99

$

In Stock, only 1 left!

0

32

Electrolux/AYP 545013401

Bearing-Crankshaft

$10.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 530058982

Bolt-Muffler

$4.99

$

In Stock, Qty 7

0

34

Electrolux/AYP 545156301

Guard-Muffler

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 545008070

Kit-Spark Arrestor
(Superseded to 545224001)

$4.99

$

In Stock, only 1 left!

0

36

Electrolux/AYP 545180701

Assy-Muffler

Note: (Incl. 33,35,37)

$18.99

$

In Stock, only 1 left!

0

37

Electrolux/AYP 545008044

Gasket-Muffler (kit)

$10.99

$

In Stock, only 1 left!

0

38

Electrolux/AYP 530016445

Screw-Tank Retainer

$6.49

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 545215901

Assy-Fuel Cap w/ret.
(Superseded to 578931605)

$9.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 545182101

Assy-Tank
(Superseded to 578942701)

Note: (Incl. 39,41,42,43)

$

$

Not available

41

Electrolux/AYP 530069599

Kit-Fuel line

Note: (Incl. 42)

$7.49

$

In Stock, Qty 5

0

42

Electrolux/AYP 530023877

Fitting-Fuel Line

$5.99

$

In Stock, Qty 18

0

43

Electrolux/AYP 530095646

Assy-Fuel Pickup

$6.99

$

In Stock, Qty 20+

0

44

Electrolux/AYP 530015897

Screw-m5x25mm

$6.49

$

In Stock, Qty 19

0

45

Electrolux/AYP 545181901

Assy-Crankcase

$21.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 545191601

Assy-Leadwire

$4.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 545189701

Module-Ignition

$37.99

$

In Stock, only 1 left!

0

48

Electrolux/AYP 530016357

Screw 8-32

$6.49

$

In Stock, only 4 left!

0

49

Electrolux/AYP 545120401

Assy-Flywheel

$14.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 530016463

Washer

$6.99

$

In Stock, only 3 left!

0

51

Electrolux/AYP 530057852

Spacer-Flywheel

$10.99

$

In Stock, only 2 left!

0

52

Electrolux/AYP 530094189

Washer-Clutch

$6.99

$

In Stock, only 1 left!

0

53

Electrolux/AYP 545008038

Kit-Clutch Assy.
(Superseded to 530055122)

$20.99

$

In Stock, Qty 5

0

54

Electrolux/AYP 530015774

Screw 10-24 x 1"

$6.49

$

In Stock, only 1 left!

0

55

Electrolux/AYP 530015897

Screw M5 x 25mm

$6.49

$

In Stock, Qty 19

0

56

Electrolux/AYP 545186401

Guide-Clutch Drum

$

$

Not available

57

Electrolux/AYP 530015768

Locknut 10-24

$6.49

$

In Stock, only 2 left!

0

58

Electrolux/AYP 545190801

Assy-Fan Hsg

Note: (Incl.54,56,57)

$42.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 545008047

Kit-Crankshaft
(Superseded to 545194001)

$39.22

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 545008044

Seal-Cyl./Adapter (kit)

$10.99

$

In Stock, only 1 left!

0

61

Electrolux/AYP 530016418

Bolt M5 x .80

$4.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 545194501

Adaptor-Carburetor
(Superseded to 575391501)

$10.99

$

In Stock, only 1 left!

0

63

Electrolux/AYP 530016441

Screw .20 x 32

$6.49

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 545008044

Gasket-Carb./Adapter(kit)

$10.99

$

In Stock, only 1 left!

0

65

Electrolux/AYP 545190501

Boot-Carb.

$4.99

$

In Stock, only 1 left!

0

66

Electrolux/AYP 545008042

Kit-Carburetor
(Superseded to 545189502)

$74.99

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 545195901

Filter-Air

$4.99

$

In Stock, only 1 left!

0

68

Electrolux/AYP 545188801

Assy-Airbox Knob

$3.99

$

In Stock, only 1 left!

0

69

Electrolux/AYP 545008044

Kit - Gasket

Note: (Incl. 15,31,37,60,64)

$10.99

$

In Stock, only 1 left!

0
