PP 12R38MI A - Poulan Lawn Tractor (1993) DASH Parts Diagram

Lawn Tractor

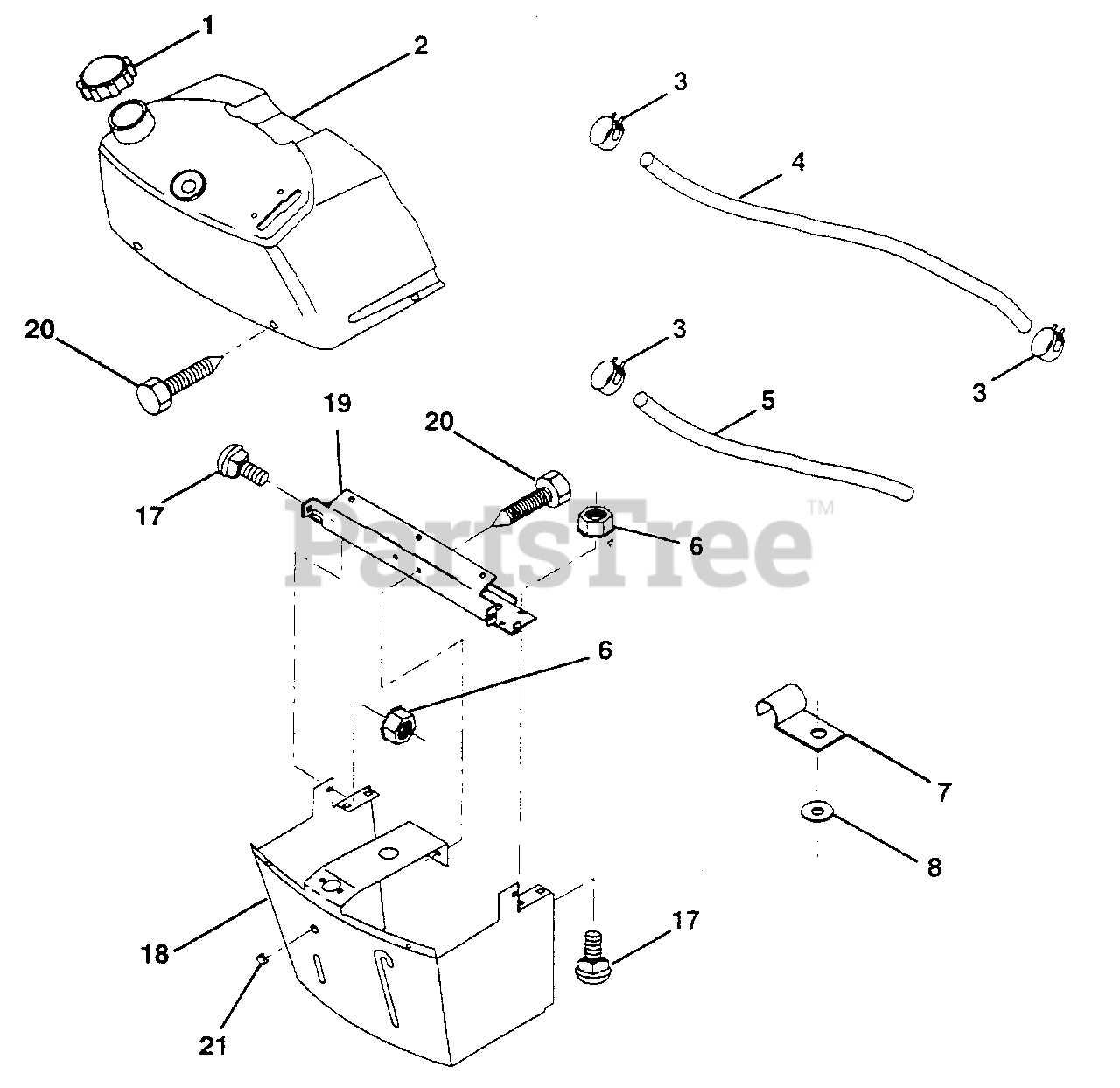

DASH Parts Diagram

  • Title
1

Electrolux/AYP 532132734

Cap, Fuel Tank

$

$

Not available

2

Electrolux/AYP 532138392

Dash and Fuel Tank Assembly

$

$

Not available

3

$7.49

$

In Stock, only 4 left!

0

4

Electrolux/AYP 532008544

Line, Fuel
(Superseded to 532000295)

$

$

Not available

$7.99

$

In Stock, only 1 left!

0

6

Electrolux/AYP 873510400

Nut, Hex, Keps 1/4-20
(Superseded to 873640400)

$

$

Not available

7

Electrolux/AYP 532124996

Clip, Fuel Line
(Superseded to 532002751)

$

$

Not available

8

Electrolux/AYP 819091216

Washer 9/32 x 3/4 x 16 Gauge
(Superseded to 596204201)

$3.99

$

In Stock, only 1 left!

0

17

Electrolux/AYP 872110404

Bolt, Carriage 1/4-20 x 1/2 Grade 5

$9.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 532131886

Support Assembly, Dash

$

$

Not available

19

$

$

Not available

20

Electrolux/AYP 817060408

Screw, Self-Tapping 1/4-20 x 1/2

$5.99

$

In Stock, only 2 left!

0

21

Electrolux/AYP 532134014

Plug, Dome, Black

$

$

Not available
