PP-1260 - Echo Pole Saw (Type 1) Driveshaft, Handle, Harness Parts Diagram

Pole Saw (Type 1)

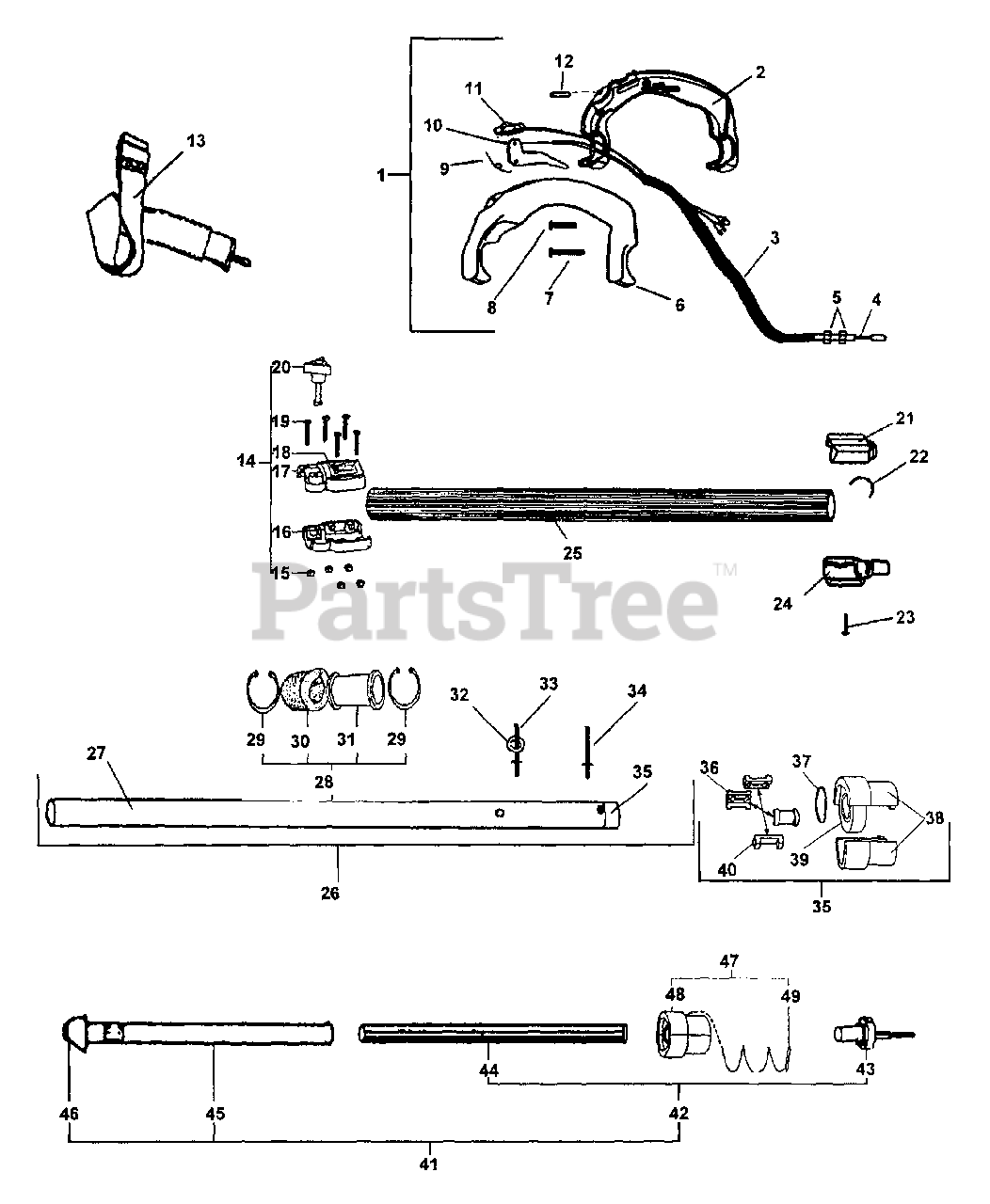

Driveshaft, Handle, Harness Parts Diagram

  • Title

Echo 61020622460

MAIN PIPE ASSY

Note: Includes ITEMS 1-46

$779.99

$

Usually ships in 2-4 days

0

Echo 61060922460

MAIN PIPE ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 21 - 46

$

$

Not available

1

Echo 35150122560

HANDLE ASSY - REAR

Note: INCLUDES ITEMS 2 - 12

$152.99

$

Usually ships in 2-4 days

0

2

Echo 35112922360

HANDLE, REAR - RIGHT
(Superseded to P021004860)

$

$

Not available

3

Echo 17801622360

TUBE, PROTECTIVE - CORRUGATED

$1.49

$

Usually ships in 2-4 days

0

4

Echo 17810022060

CABLE, THROTTLE

Note: Includes ITEM 5

$40.99

$

Usually ships in 2-4 days

0

5

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 2 left!

0

6

Echo 35110122360

HANDLE, REAR - LEFT
(Superseded to P021004860)

$

$

Not available

7

Echo 90005300400

SCREW - 10-24 X 1-1/4"

$0.99

$

In Stock, Qty 15

0

8

Echo 90005300300

SCREW - 10-24 X 7/8"

$0.99

$

Usually ships in 2-4 days

0

9

Echo 17804322360

SPRING, TRIGGER

$1.99

$

In Stock, Qty 13

0

10

Echo 17801005631

TRIGGER, THROTTLE
(Superseded to C450000060)

$1.49

$

In Stock, Qty 20+

0

11

Echo 16340046830

IGNITION SWITCH ASSY
(Superseded to 16340155631)

$8.99

$

In Stock, Qty 7

0

12

Echo 88996022660

PIN - LOCATING

$0.99

$

In Stock, Qty 20+

0

13

Echo 30100022060

SHOULDER STRAP ASSY

$29.99

$

In Stock, Qty 8

0

14

Echo 61029522360

COLLAR ASSY

Note: Includes ITEMS 15-20

$42.99

$

Usually ships in 2-4 days

0

15

Echo 90003150100

LOCKNUT - 10-24

$0.99

$

In Stock, Qty 20+

0

16

Echo 61028222360

COLLAR, MAIN PIPE - LOWER

$27.99

$

In Stock, only 4 left!

0

17

Echo 61028222460

COLLAR, MAIN PIPE - UPPER

$16.99

$

In Stock, only 1 left!

0

18

Echo 89016022360

LABEL - CAUTION
(Superseded to 89007522760)

$7.99

$

Usually ships in 2-4 days

0

19

Echo 90005300400

SCREW - 10-24 X 1-1/4"

$0.99

$

In Stock, Qty 15

0

20

Echo 13040622360

THUMBSCREW

$5.99

$

Usually ships in 2-4 days

0

21

Echo 61081022360

LOWER HSNG ADAPT (TOP)
(Superseded to P021003540)

$11.99

$

In Stock, only 1 left!

0

22

Echo 10491022460

CUSHION

$1.99

$

In Stock, only 3 left!

0

23

Echo 90005300400

SCREW - 10-24 X 1-1/4"

$0.99

$

In Stock, Qty 15

0

24

Echo 61024822360

ADAPTER - LOWER
(Superseded to C510000050)

$25.99

$

In Stock, only 1 left!

0

25

Echo 61022222360

PIPE, MAIN - ORANGE

$117.99

$

Usually ships in 2-4 days

0

26

Echo 61029922460

MAIN PIPE ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 27 - 40

$

$

Not available

27

Echo 61029923960

MAIN PIPE ASSY - BLACK

Note: INCLUDES ITEMS 28 - 31

$123.99

$

Usually ships in 2-4 days

0

28

Echo 43330722360

DRIVESHAFT GUIDE ASSY
(Superseded to 43330722361)

Note: INCLUDES ITEMS 29 - 31

$15.99

$

Usually ships in 2-4 days

0

29

Echo 61033522360

RING, RETAINING

$1.49

$

Usually ships in 2-4 days

0

30

Echo 10429222360

PAD, FOAM

$0.99

$

Usually ships in 2-4 days

0

31

Echo 43334522360

GUIDE, DRIVESHAFT
(Superseded to 43334522361)

$10.99

$

In Stock, only 2 left!

0

32

Echo 40011122360

WASHER - 5

$0.99

$

In Stock, Qty 10

0

33

Echo 89001122360

RIVET

$0.99

$

In Stock, only 3 left!

0

34

Echo 89001122460

RIVET

$1.49

$

In Stock, Qty 7

0

35

Echo 61010522360

BEARING HOLDER KIT

Note: INCLUDES ITEMS 36 - 40

$35.99

$

In Stock, Qty 12

0

36

Echo 43334522460

HOLDER, INNER BEARING - SMALL

$1.49

$

In Stock, Qty 20+

0

37

Echo 17812922360

WASHER - SPRING

$0.99

$

In Stock, only 3 left!

0

38

Echo 61011122360

BEARING HOLDER KIT

$7.49

$

Usually ships in 2-4 days

0

39

Echo 90080206002

BEARING, BALL - 6002

$16.99

$

Usually ships in 2-4 days

0

40

Echo 43334522560

HOLDER, INNER BEARING - LARGE

$1.49

$

In Stock, Qty 7

0

41

Echo 61000622460

DRIVESHAFT ASSY

Note: INCLUDES ITEMS 42 - 46

$328.99

$

Usually ships in 2-4 days

0

42

Echo 61000622060

DRIVESHAFT - LOWER
(Superseded to P021008040)

Note: INCLUDES ITEMS 43 & 44

$98.99

$

Usually ships in 2-4 days

0

43

Echo 61001222360

CONNECTOR, SHAFT
(Superseded to 61001222361)

$35.99

$

In Stock, Qty 9

0

44

Echo 61001122060

DRIVESHAFT - LOWER
(Superseded to 61001122061)

$46.99

$

Usually ships in 2-4 days

0

45

Echo 61001122460

DRIVESHAFT - UPPER

$53.99

$

In Stock, only 1 left!

0

46

Echo 61029822360

ADAPTER, DRIVESHAFT - UPPER

$3.99

$

Usually ships in 2-4 days

0

47

Echo 43330722460

FLOATING BUSHING ASSY

Note: Includes ITEMS 48-49

$13.99

$

In Stock, only 1 left!

0

48

Echo 43334522660

BUSHING, FLOATING

$5.99

$

Usually ships in 2-4 days

0

49

Echo 10494022560

SPRING

$7.49

$

In Stock, only 1 left!

0
