PP 125R38 JA - Poulan Pro Lawn Tractor TRANSAXLE Parts Diagram

Lawn Tractor

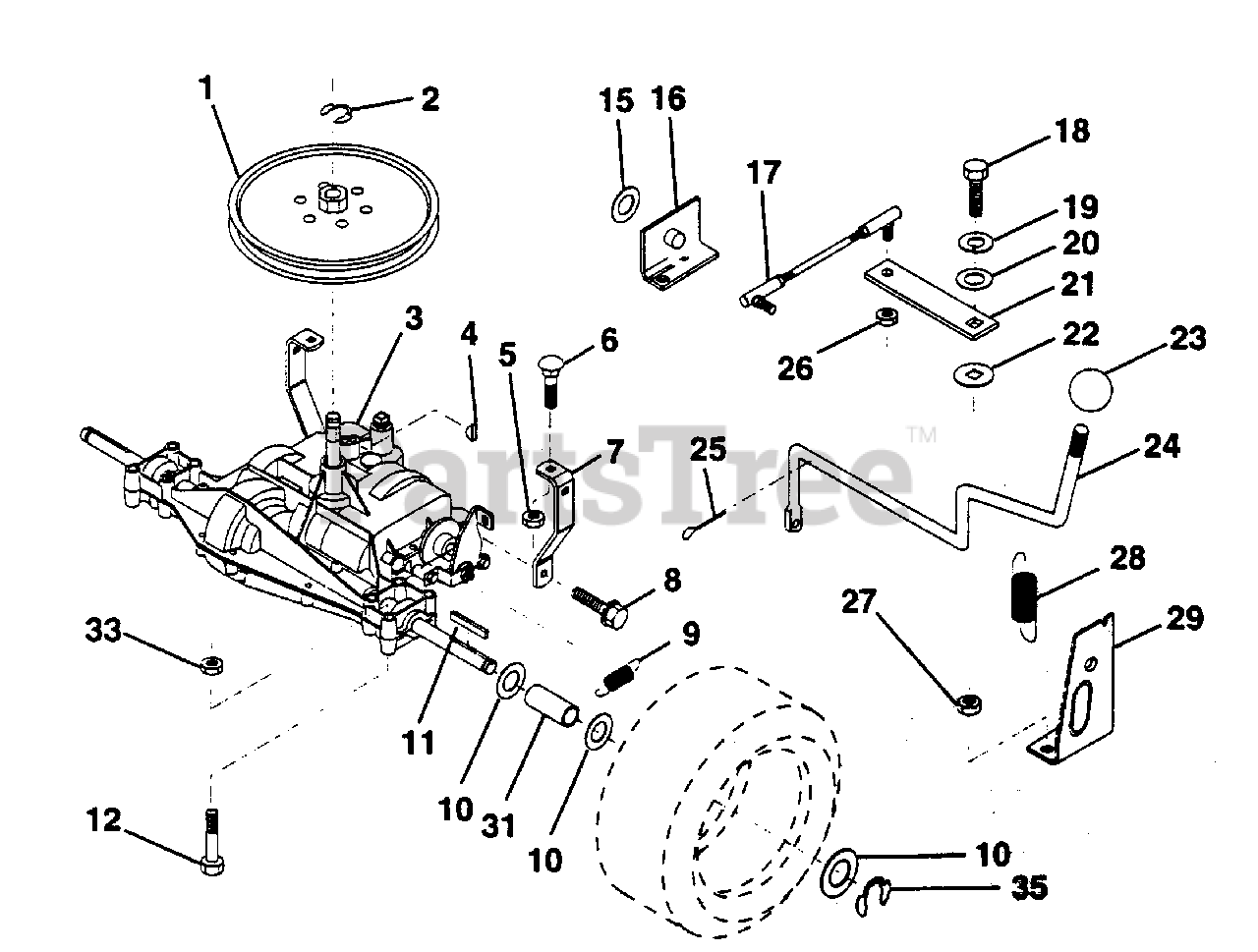

TRANSAXLE Parts Diagram

  • Title

1

Poulan 532123385

Pulley (AYP part number)

$45.99

$

Usually ships in 3-10 days

0

2

Poulan 812000028

Ring, Retainer (AYP part number)
(Superseded to 532002267)

$7.49

$

In Stock, Qty 8

0

3

Poulan 532142603

Transaxle, Dana Model No. 4360-79 (AYP part number)
(Superseded to 532161899)

$

$

Not available

4

Poulan 532125096

Key, Woodruff #9 (AYP part number)

$9.49

$

In Stock, only 1 left!

0

5

Poulan 873800500

Nut,Lock Hex w/Ins 5/16-18 (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

6

Poulan 872140506

Bolt, Carriage 5/16-18 UNC x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

7

Poulan 532123378

Strap, Torque (AYP part number)
(Superseded to 123378X)

$2.49

$

Usually ships in 3-10 days

0

8

Poulan 817490512

Screw 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

9

Poulan 532110422

Spring, Brake (AYP part number)
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

10

Poulan 532121749

Washer 25/32 x 1-1/4 x 16 Gauge (AYP part number)

$3.49

$

Usually ships in 3-10 days

0

11

Poulan 532123583

Key, Square (AYP part number)

$4.99

$

In Stock, only 3 left!

0

12

Poulan 874760644

Bolt, Hex, Fin. 3/8-16 Unc x 2-3/4 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

15

Poulan 819171616

Washer 17/32 x 1 x 16 Gauge (AYP part number)
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

16

Poulan 532124600

Support Handle Shift, LH (AYP part number)

$

$

Not available

17

Poulan 532123632

Link, Shift (AYP part number)

$

$

Not available

18

Poulan 871040412

Bolt, Hex, Fin. 1/4-28 UNF x 3/4 Grade 8 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 810040400

Washer, Lock 1/4 (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

20

Poulan 819091210

Washer 9/32 x 3/4 x 10 Gauge (AYP part number)
(Superseded to 734115441)

$4.99

$

Usually ships in 3-10 days

0

21

Poulan 532123539

Arm, Shift (AYP part number)

$

$

Not available

22

Poulan 532105701

Washer, Shift Plate (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

23

Poulan 532121274

Knob, Duckhead (AYP part number)

$10.99

$

Usually ships in 3-10 days

0

24

Poulan 532128215

Rod Assembly, Shift (AYP part number)

$

$

Not available

25

Poulan 876020416

Pin, Cotter 1/8 x 1 (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

26

Poulan 873810500

Locknut 5/16-24 UNF (AYP part number)
(Superseded to 873610500)

$

$

Not available

27

Poulan 873510500

Nut, Hex, Keps 5/16-18 (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

28

Poulan 532128085

Extension, Spring (AYP part number)

$

$

Not available

29

Poulan 532128084

Support Handle Shift, RH (AYP part number)

$

$

Not available

31

Poulan 532109502

Spacer Split (AYP part number)

$

$

Not available

33

Poulan 873800600

Nut, Lock Hex w/Wsh 3/8-16 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

35

Poulan 812000001

E-Ring (AYP part number)

$4.99

$

Usually ships in 3-10 days

0
