PP 125R38 JA - Poulan Pro Lawn Tractor SEAT Parts Diagram

Lawn Tractor

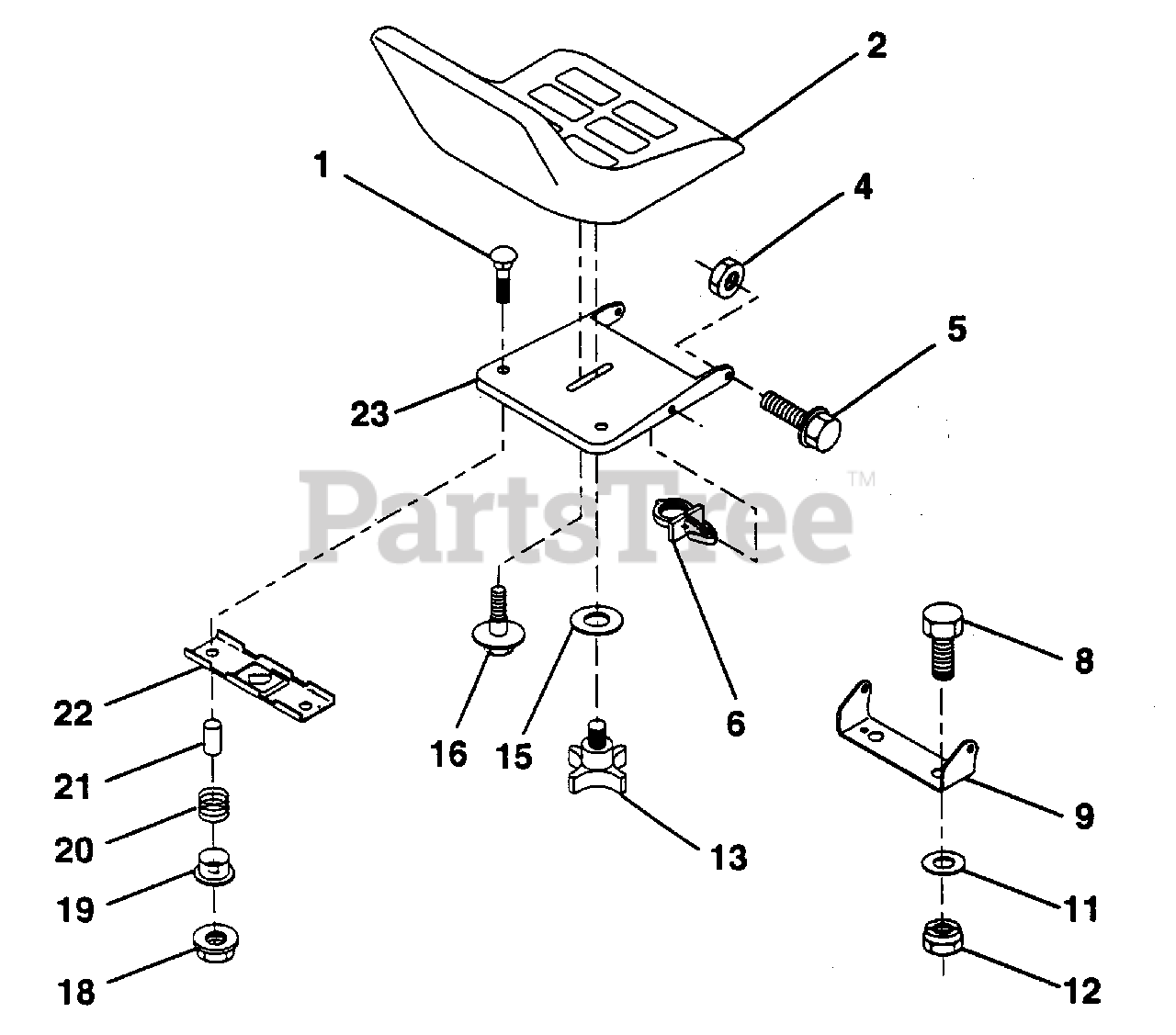

SEAT Parts Diagram

  • Title

1

Poulan 872050411

Bolt, Carriage 1/4-20 x 1-3/8

$

$

Not available

2

Poulan 532127428

Seat (AYP part number)
(Superseded to 532140119)

$206.99

$

Usually ships in 3-10 days

0

4

Poulan 873800500

Nut Lock Hex W/Ins 5/16-18 (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

5

Poulan 532139888

Bolt, Shoulder 5/16-18 UNC (AYP part number)

$6.49

$

In Stock, only 1 left!

0

6

Poulan 532140407

Clip, Insulated (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 874760616

Bolt, Hex, Fin. 3/8-16 UNC x 1 (AYP part number)
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

9

Poulan 532140551

Bracket, Pivot, Seat (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 819133210

Washer 12/32 x 2 x 10 Gauge (AYP part number)
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

12

Poulan 873800600

Nut Lock Hex W/Wsh 3/8-16 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 532120068

Knob, Seat (AYP part number)
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

15

Poulan 819171912

Washer 17/32 x 1-3/16 x 12 Gauge (AYP part number)

$7.49

$

In Stock, only 1 left!

0

16

Poulan 532127018

Bolt, Shoulder (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

18

Poulan 532123976

Nut, Hex, Large, Flange Lock (AYP part number)
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

19

Poulan 532121248

Bushing, Snap (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

20

Poulan 532121250

Spring, Compression (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

21

Poulan 532134300

Spacer, Split, Large .28 ld. x .96 (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

22

Poulan 532121246

Bracket, Switch Mounting (AYP part number)
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

23

Poulan 532140552

Pan, Seat (AYP part number)
(Superseded to 532155925)

$21.99

$

Usually ships in 3-10 days

0
