PP 125R38 JA - Poulan Pro Lawn Tractor FRONT AXLE Parts Diagram

Lawn Tractor

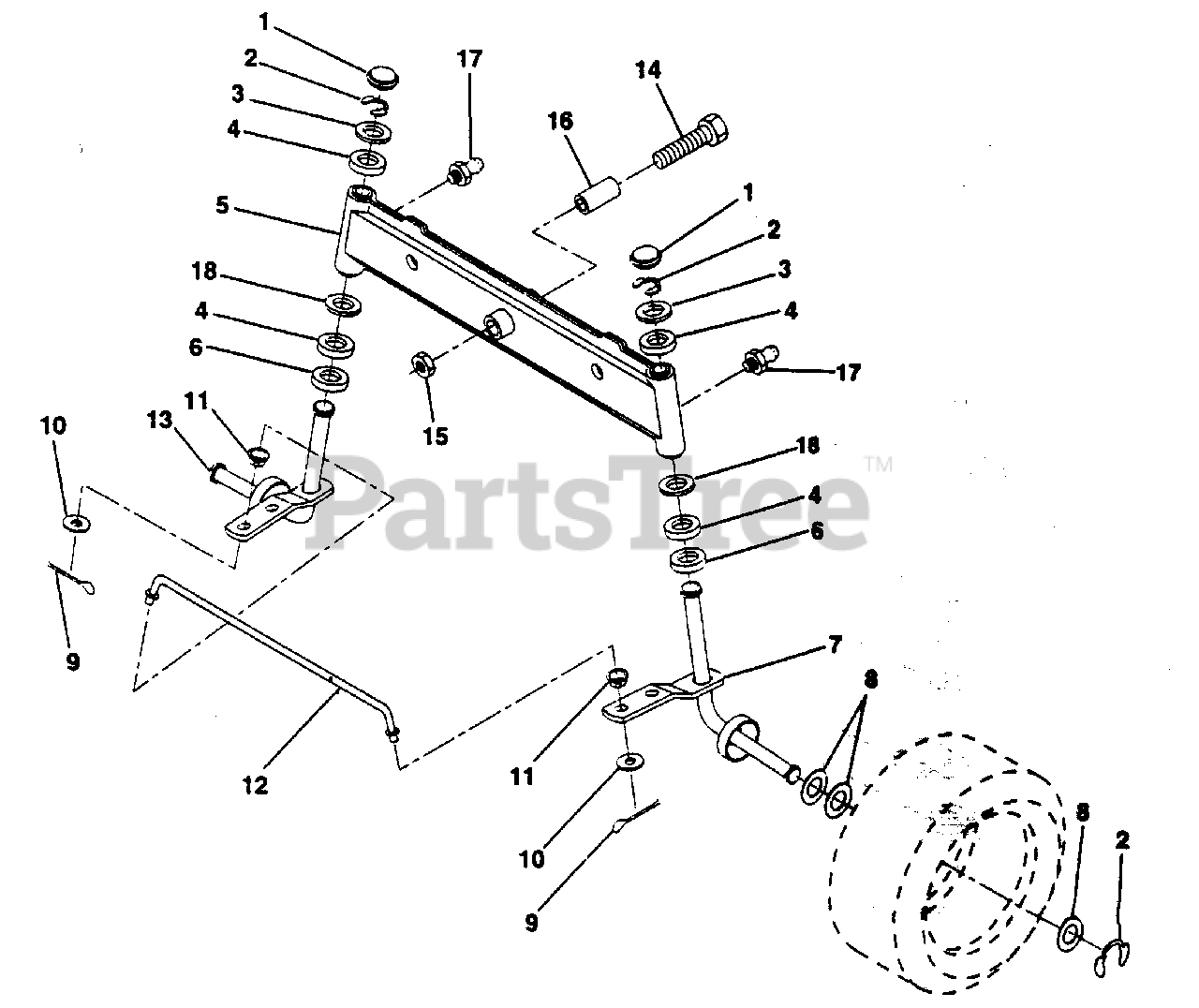

FRONT AXLE Parts Diagram

  • Title

1

Poulan 532121232

Cap, Spindle (AYP part number)

$4.99

$

In Stock, Qty 9

0

2

Poulan 812000029

Ring, Clip (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

3

Poulan 532121748

Washer 25/32 x 1-5/8 x 16 Gauge (AYP part number)

$4.99

$

In Stock, Qty 20+

0

4

Poulan 532124937

Bearing (AYP part number)
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

5

Poulan 532142033

Axle, Front (AYP part number)
(Superseded to 142033)

$

$

Not available

6

Poulan 532124931

Bearing, Thrust (AYP part number)
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

7

Poulan 532137062

Spindle Assembly, R.H.

$

$

Not available

8

Poulan 532121749

Washer 25/32 x 1-1/4 x 16 Gauge (AYP part number)

$3.49

$

Usually ships in 3-10 days

0

9

Poulan 876020412

Pin, Cotter 1/8 x 3/4 (AYP part number)
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

10

Poulan 819131316

Washer 13/32 x 13/16 x 16 Gauge (AYP part number)

$4.99

$

In Stock, Qty 5

0

11

Poulan 532126847

Bushing (AYP part number)

$5.99

$

In Stock, only 2 left!

0

12

Poulan 532130465

Tie Rod (AYP part number)
(Superseded to 532192757)

$34.99

$

In Stock, only 2 left!

0

13

Poulan 532137061

Spindle Assembly, L.H. (AYP part number)

$

$

Not available

14

Poulan 874011056

Bolt Hex 5/8-11 Unc x 3-1/2 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

15

Poulan 873901000

Nut Lock Flange 5/8-11 Unc (AYP part number)
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

16

Poulan 532110438

Spacer Bearing (AYP part number)
(Superseded to 532155134)

$

$

Not available

17

Poulan 532124836

Fitting Grease (AYP part number)
(Superseded to 532006855)

$7.49

$

In Stock, only 2 left!

0

18

Poulan 819272016

Washer 27/32 x 1-1/4 x 16 Ga. (AYP part number)

$6.49

$

In Stock, only 2 left!

0
