PP 125R38 JA - Poulan Pro Lawn Tractor FENDER / CHASSIS Parts Diagram

Lawn Tractor

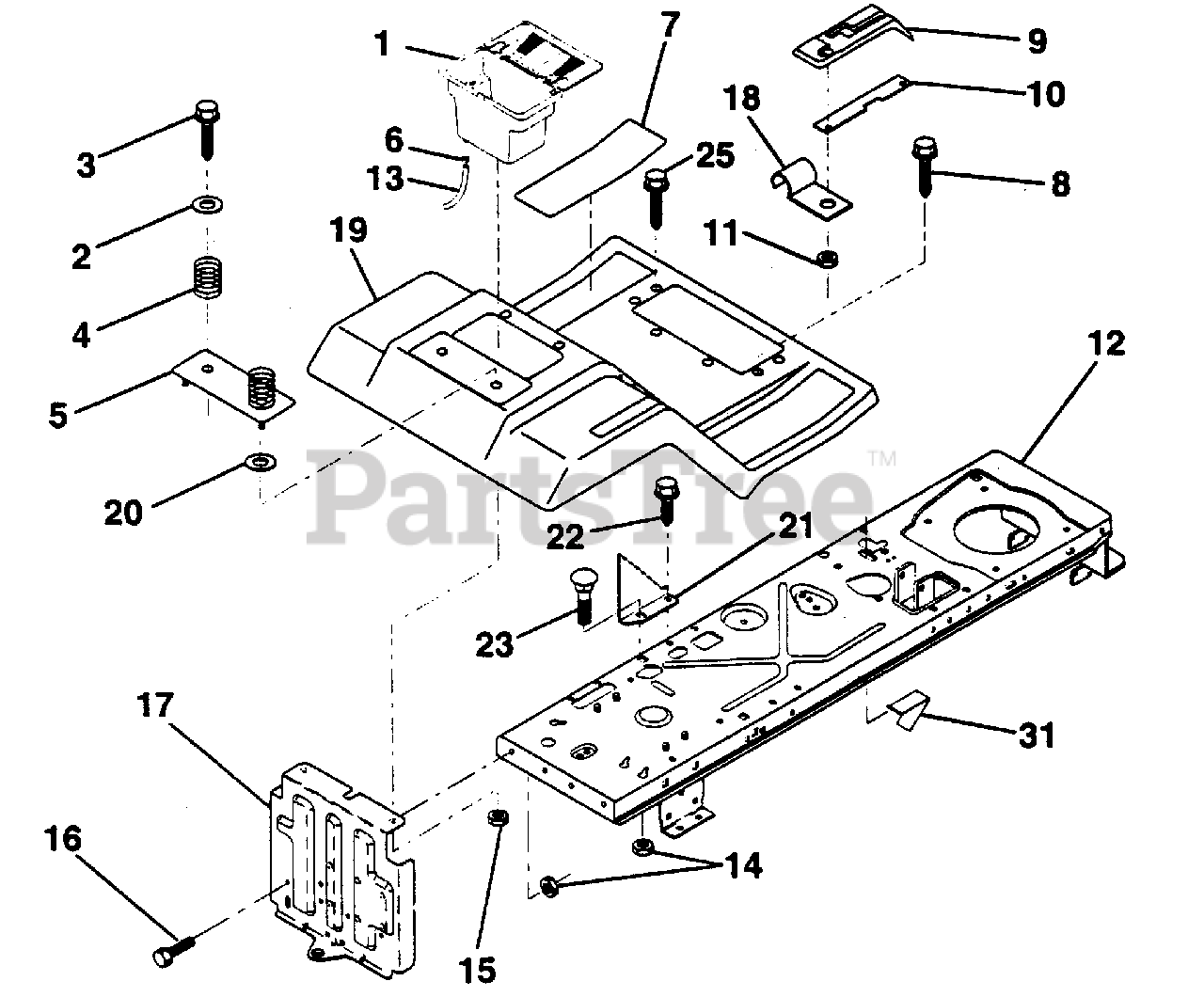

FENDER / CHASSIS Parts Diagram

  • Title

1

Poulan 532129965

Case Asm. Battery (AYP part number)
(Superseded to 532144940)

$

$

Not available

2

Poulan 819132012

Washer 13/32 x 1-1/4 x 12 Ga. (AYP part number)

$1.99

$

Usually ships in 3-10 days

0

3

Poulan 817490612

Screw Thdrol. 3/8-16 x 3/4 (AYP part number)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

4

Poulan 532124181

Spring seat (AYP part number)
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

5

Poulan 532125139

Plate Asm. Pnt Battery Fender (AYP part number)

$

$

Not available

6

Poulan 532109596

Clamp Hose Olive (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

7

Poulan 532134214

Pad Footrest (AYP part number)

$

$

Not available

8

Poulan 817490512

Screw Thdrol. 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

9

Poulan 532126995

Console Shf. 6sp W/Ign. (AYP part number)

$14.99

$

Usually ships in 3-10 days

0

10

Poulan 532139783

Plate Lock Shift (AYP part number)

$

$

Not available

11

Poulan 532124346

Nut Self Thd. Wsh-Hd 1/4 (AYP part number)

$7.99

$

In Stock, only 1 left!

0

12

Poulan 532140784

Chassis Asm. Weldment (AYP part number)

$

$

Not available

13

Poulan 532109238

Tube Plastic (AYP part number)

$

$

Not available

14

Poulan 873800500

Nut Lock Hex W/Ins 5/16-18 (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

15

Poulan 873510400

Nut Keps Hex 1/4-20 (AYP part number)
(Superseded to 873640400)

$

$

Not available

16

Poulan 874760512

Bolt Hex Hd. 5/16-18 x 3/4 (AYP part number)
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

17

Poulan 532140782

Drawbar Asm. (AYP part number)

$

$

Not available

18

Poulan 532126470

Clip Insulated (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 532141471

Fend/Foot Asm. Pnt Shf. Fnd. (AYP part number)
(Superseded to 532125394)

$

$

Not available

20

Poulan 819091413

Washer 9/32 x 7/8 x 13 Ga. (AYP part number)
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

21

Poulan 532140297

Bracket Stop Depth (AYP part number)

$

$

Not available

22

Poulan 817490508

Screw Thdrol 5/16-18 x 1/2 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

23

Poulan 872110506

Bolt Rdhdsqnk. 5/16-18 x 3/4 (AYP part number)

$7.49

$

In Stock, Qty 20+

0

25

Poulan 817490516

Scr-Hex Wsh Rol 5/16-18 x 1 (AYP part number)
(Superseded to 539113226)

$6.49

$

Usually ships in 3-10 days

0

31

Poulan 532141736

Switch Activator (AYP part number)

$

$

Not available
