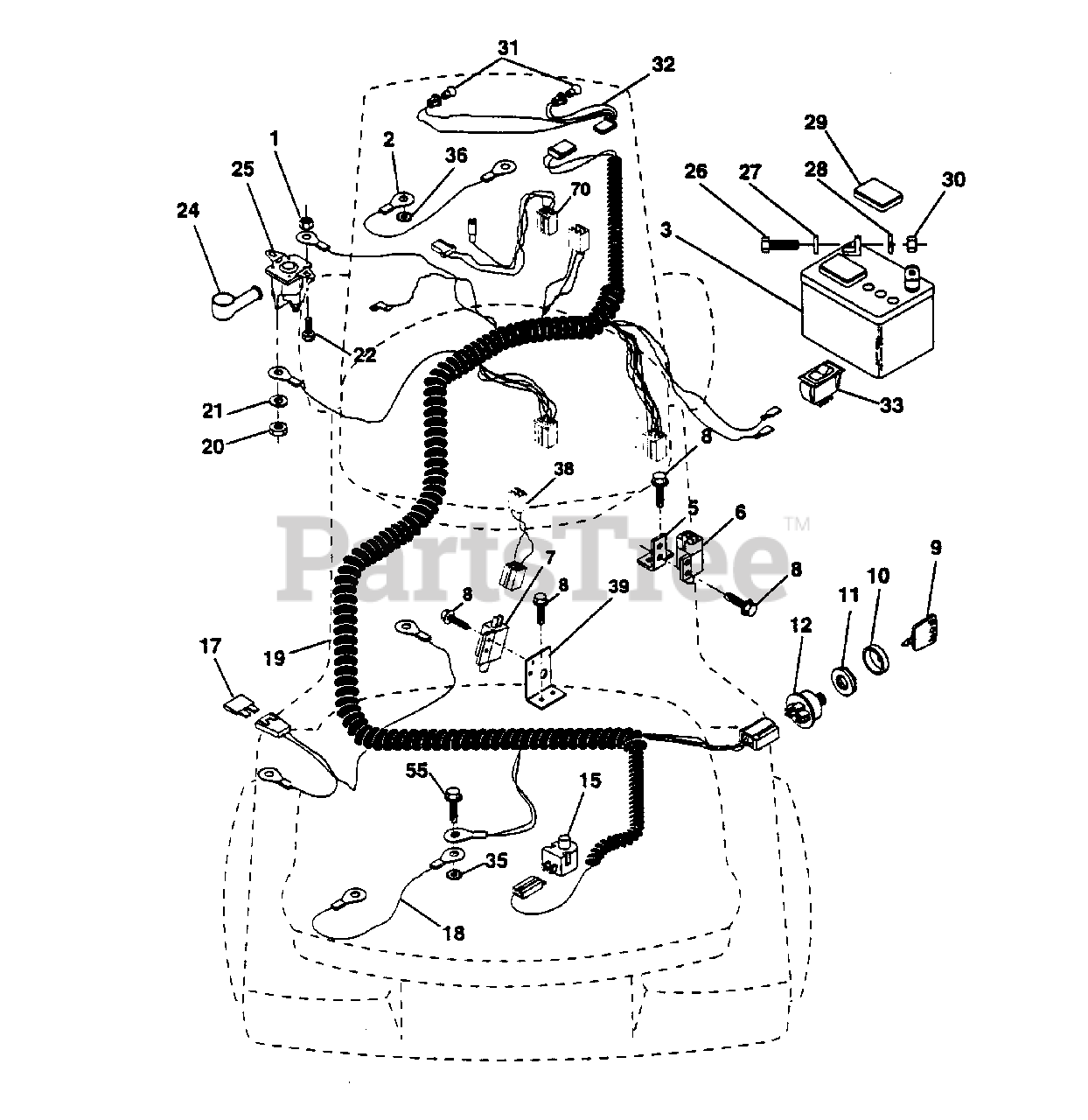

PP 125R38 JA - Poulan Pro Lawn Tractor ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title

1

Poulan 873510400

Nut, Hex, Keps 1/4-20 (AYP part number)
(Superseded to 873640400)

$

$

Not available

2

Poulan 532108423

Assembly, Cable (AYP part number)

$8.99

$

Usually ships in 3-10 days

0

3

Poulan 532133909

Battery (AYP part number)
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

5

Poulan 532108236

Bracket, Switch (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

6

Poulan 532109553

Switch, Interlock, 4 Terminal (AYP part number)
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

7

Poulan 532104445

Switch, Interlock, 2 Terminal (AYP part number)

$17.99

$

In Stock, only 1 left!

0

8

Poulan 817021008

Screw, Hex Head, Self-Tapping #10-24 x 1/2 (AYP part number)

$4.99

$

In Stock, Qty 14

0

9

Poulan 532140401

Key, Molded (AYP part number)

$6.99

$

In Stock, Qty 8

0

10

Poulan 532141226

Cover, Ignition Key (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

11

Poulan 532140400

Nut, Ignition (AYP part number)
(Superseded to 532145774)

$6.49

$

Usually ships in 3-10 days

0

12

Poulan 532140399

Switch, Ignition (AYP part number)
(Superseded to 532144921)

$

$

Not available

15

Poulan 532121305

Switch, Plunger (AYP part number)
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

17

Poulan 532108824

Fuse (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

18

Poulan 532128353

Assembly, Cable (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 532143132

Harness, Ignition (AYP part number)

$

$

Not available

20

Poulan 873350400

Nut, Hex, Jam 1/4-20 (AYP part number)
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

21

Poulan 810090400

Washer, Lock 1/4 (AYP part number)
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

22

Poulan 874780408

Bolt, Hex, Fin. 1/4-20 UNC x 1/2 Grade 5 (AYP part number)
(Superseded to 74780408)

$1.49

$

Usually ships in 3-10 days

0

24

Poulan 532131563

Cover, Terminal (AYP part number)
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

25

Poulan 532138406

Solenoid (AYP part number)
(Superseded to 532109946)

$24.99

$

In Stock, only 2 left!

0

26

Poulan 874760412

Bolt, Hex Head 1/4-20 UNC x 3/4 (AYP part number)

$7.49

$

In Stock, only 1 left!

0

27

Poulan 819091016

Washer 9/32 x 5/8 x 16 Gauge (AYP part number)
(Superseded to 596582301)

$3.99

$

In Stock, Qty 5

0

28

Poulan 810040400

Washer, Lock 1/4 (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

29

Poulan 532121264

Cap, Battery (AYP part number)

$

$

Not available

30

Poulan 873220400

Nut, Hex, Fin. 1/4-20 UNC (AYP part number)
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

31

Poulan 532004152

Bulb, Light (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

32

Poulan 532136850

Harness, Headlight (AYP part number)

$

$

Not available

33

Poulan 532110712

Switch, Light (AYP part number)

$9.49

$

In Stock, only 4 left!

0

35

Poulan 811050500

Washer, Lock, External Tooth 5/16 (AYP part number)
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

36

Poulan 811150400

Washer, Lock, Internal Tooth 1/4 (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

38

Poulan 532140660

Harness Adapter (AYP part number)

$

$

Not available

39

Poulan 532141735

Bracket, Switch Clutch (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

55

Poulan 817490508

Screw Thdrol 5/16-18 x 1/2 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

70

Poulan 532140413

Harness Engine (AYP part number)

$

$

Not available
