PP 125R38 JA - Poulan Pro Lawn Tractor DASH Parts Diagram

Lawn Tractor

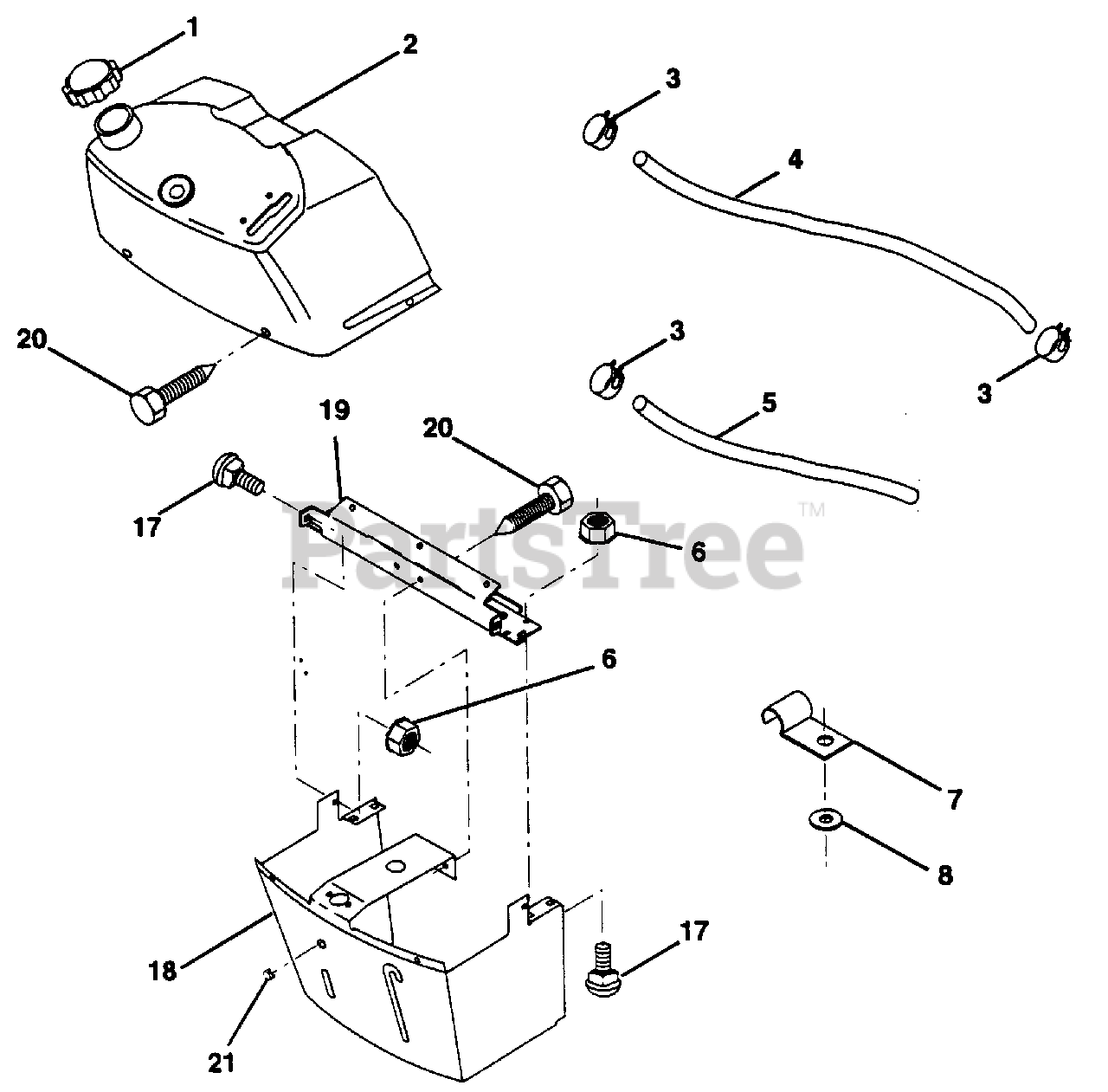

DASH Parts Diagram

  • Title

1

Poulan 532141523

Cap, Fuel Tank (AYP part number)
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

2

Poulan 532138392

Assembly, Dash & Fuel Tank (AYP part number)

$

$

Not available

3

Poulan 532123487

Clamp, Hose (AYP part number)

$7.49

$

In Stock, only 1 left!

0

4

Poulan 532008544

Line, Fuel (AYP part number)
(Superseded to 532000295)

$

$

Not available

5

Poulan 532008548

Line, Fuel (AYP part number)

$7.99

$

In Stock, only 1 left!

0

6

Poulan 873510400

Nut, Hex, Keps 1/4-20 (AYP part number)
(Superseded to 873640400)

$

$

Not available

7

Poulan 532124996

Clip, Fuel Line (AYP part number)
(Superseded to 532002751)

$

$

Not available

8

Poulan 819091216

Washer 9/32 x 3/4 x 16 Gauge (AYP part number)
(Superseded to 596204201)

$3.99

$

In Stock, only 1 left!

0

17

Poulan 872110404

Bolt, Carriage 1/4-20 x 1/2 Grade 5 (AYP part number)

$9.49

$

Usually ships in 3-10 days

0

18

Poulan 532131886

Support Assembly, Dash (AYP part number)

$

$

Not available

19

Poulan 532134744

Brace, Cross (AYP part number)

$

$

Not available

20

Poulan 817060408

Screw, Self-Tapping 1/4-20 x 1/2 (AYP part number)

$5.99

$

In Stock, only 2 left!

0

21

Poulan 532134014

Plug, Dome, Black (AYP part number)

$

$

Not available
