PP 125R38 J - Poulan Pro Lawn Tractor STEERING WHEEL Parts Diagram

Lawn Tractor

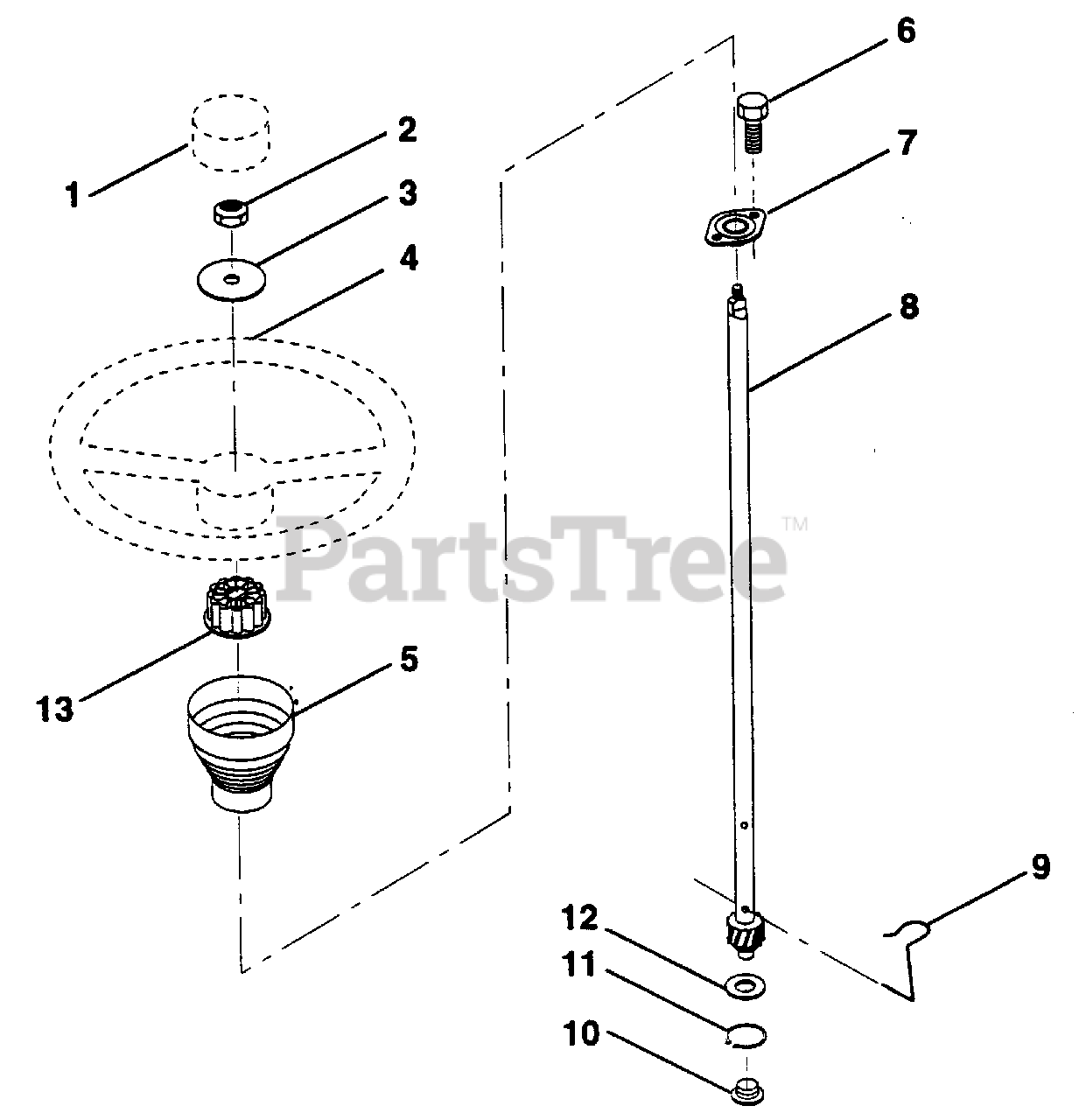

STEERING WHEEL Parts Diagram

  • Title

1

Poulan 532126805

Insert, Steering Wheel (AYP part number)
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

2

Poulan 532124701

Locknut 3/8-24 UNF (AYP part number)
(Superseded to 532007810)

$3.99

$

Usually ships in 3-10 days

0

3

Poulan 819133808

Washer 12/32 x 2-3/8 x 8 Gauge (AYP part number)
(Superseded to 583789501)

$

$

Not available

4

Poulan 532121472

Steering Wheel (AYP part number)
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

5

Poulan 532121897

Sleeve, Steering (AYP part number)
(Superseded to 583666401)

$3.99

$

Usually ships in 3-10 days

0

6

Poulan 817431008

Screw, Hex Head #10-16 x 1/2 (AYP part number)
(Superseded to 98000165)

$2.99

$

Usually ships in 3-10 days

0

7

Poulan 532102803

Bushing, Steering (AYP part number)
(Superseded to 532155107)

$7.99

$

Usually ships in 3-10 days

0

8

Poulan 532123651

Shaft, Steering (AYP part number)
(Superseded to 532148966)

$

$

Not available

9

Poulan 532124210

Clip, Steering (AYP part number)

$

$

Not available

10

Poulan 532123438

Bushing, Lower, Steering (AYP part number)

$6.99

$

In Stock, only 2 left!

0

11

Poulan 812000045

Ring, Retaining (AYP part number)

$7.49

$

In Stock, only 4 left!

0

12

Poulan 819211616

Washer 21/32 x 1 x 16 Gauge (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

13

Poulan 532104820

Adaptor, Steering Wheel (AYP part number)

$17.99

$

Usually ships in 3-10 days

0
