PP 125H42 JA - Poulan Pro Lawn Tractor ENGINE Parts Diagram

Lawn Tractor

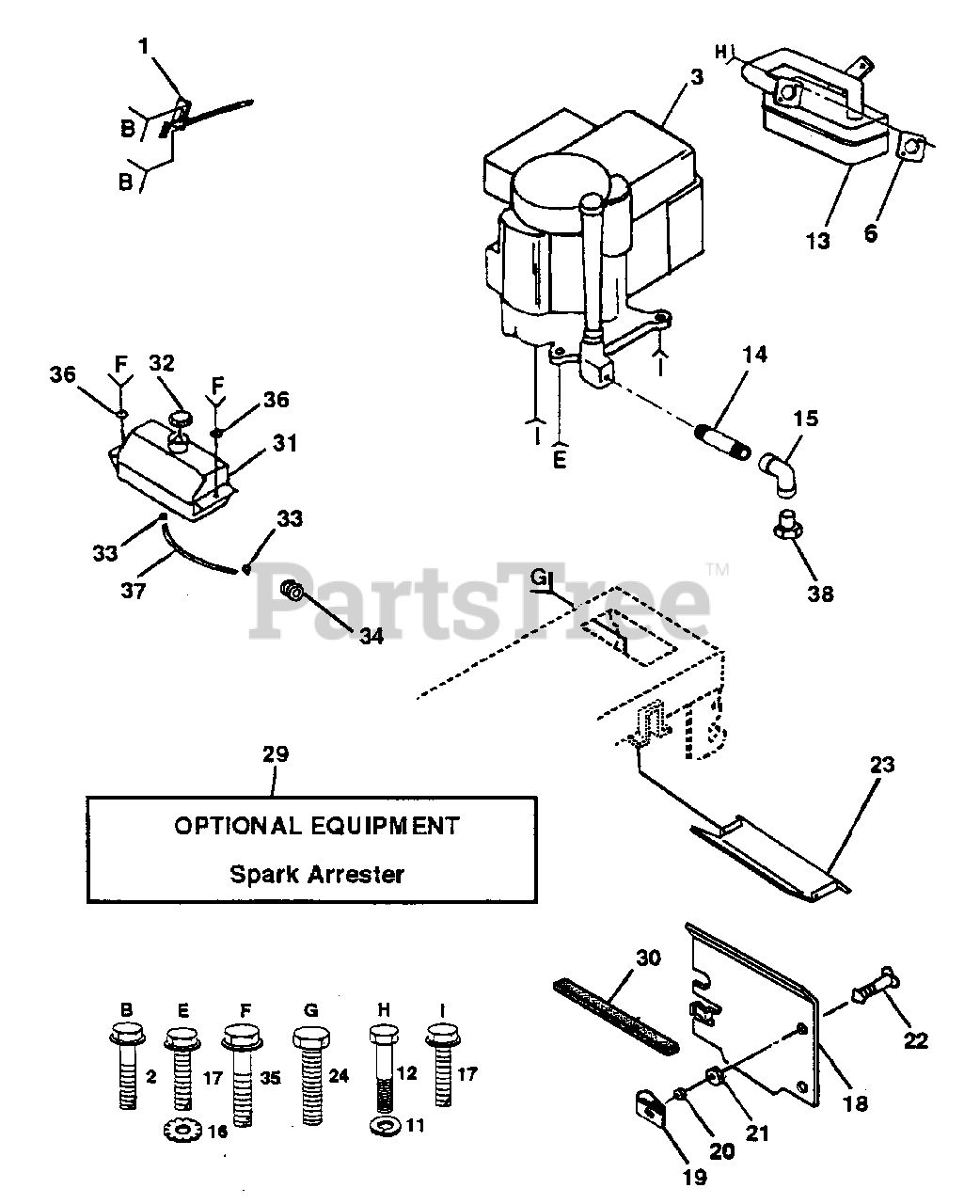

ENGINE Parts Diagram

  • Title

1

Poulan 532140310

Control Th/ch RH Blk Tee Eec (AYP part number)
(Superseded to 532170551)

$37.99

$

Usually ships in 3-10 days

0

2

Poulan 817720410

Screw Hex Thd Cut 1/4-20x5/8 T (AYP part number)
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

6

Poulan 532125593

Gasket Eng 1 313 Id Tin Plated (AYP part number)
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

11

Poulan 810040500

Washer Lock Hvy Hlcl Spr 5/16 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

12

Poulan 871070512

Screw Hexhd Cap 5/16-18x3/4 (AYP part number)
(Superseded to 532192334)

$

$

Not available

13

Poulan 532137348

Muffler LT B&s 12/12.5 HP (AYP part number)

$102.99

$

In Stock, only 1 left!

0

14

Poulan 813280324

Nipple Pipe 3/8 Npt X 3" (AYP part number)

$

$

Not available

15

Poulan 813200300

Elbow Std 90 Degree 3/8-18 Npt (AYP part number)
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

16

Poulan 811050600

Washer Lock Ext Tooth 3/8 (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

17

Poulan 817490620

Screw Thdrol 3/8-16x1-1/4 TYTT (AYP part number)
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

18

Poulan 532136718

Shield Heat LT (AYP part number)

$

$

Not available

19

Poulan 532105839

Receptacle 1/4 Turn dacrotized (AYP part number)

$3.99

$

In Stock, only 1 left!

0

20

Poulan 532105838

Retainer 1/4 Turn 365 OD x .222 ID (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

21

Poulan 819091016

Washer 9/32 x 5/8 x 16 Ga (AYP part number)
(Superseded to 596582301)

$3.99

$

In Stock, Qty 7

0

22

Poulan 532123650

Stud 1/4 Turn (replaces 105751)

$6.49

$

Usually ships in 3-10 days

0

23

Poulan 532128953

Shield Heat Browning LT/YT (AYP part number)

$

$

Not available

24

Poulan 817021008

Screw Tap Hex #10-24unc X 1/2 (AYP part number)

$4.99

$

In Stock, Qty 14

0

29

Poulan 532131780

Kit Spark Arrestor 1 25

$

$

Not available

30

Poulan 532127057

Pinch Weld Hood Black 2.00

$

$

Not available

31

Poulan 532140280

Tank Fuel Front 2.00 (AYP part number)
(Superseded to 532161911)

$

$

Not available

32

Poulan 532140527

Cap Asm Fuel W/sym Vented (AYP part number)
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Poulan 532123487

Clamp Hose Blk (AYP part number)

$7.49

$

In Stock, only 4 left!

0

34

Poulan 532110436

Bushing Snap Nyl Blk Fuel Line (AYP part number)
(Superseded to 532009151)

$

$

Not available

35

Poulan 817490412

Screw Hexwsh Thdrol 1/4-20x3/4 (AYP part number)
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

36

Poulan 819091416

Washer 9/32 X 7/8 X 16ga (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 532137040

Line Fuel 9 20" (AYP part number)

$6.49

$

Usually ships in 3-10 days

0
