PP 125H42 J - Poulan Pro Lawn Tractor MOWER DECK 42" Parts Diagram

Lawn Tractor

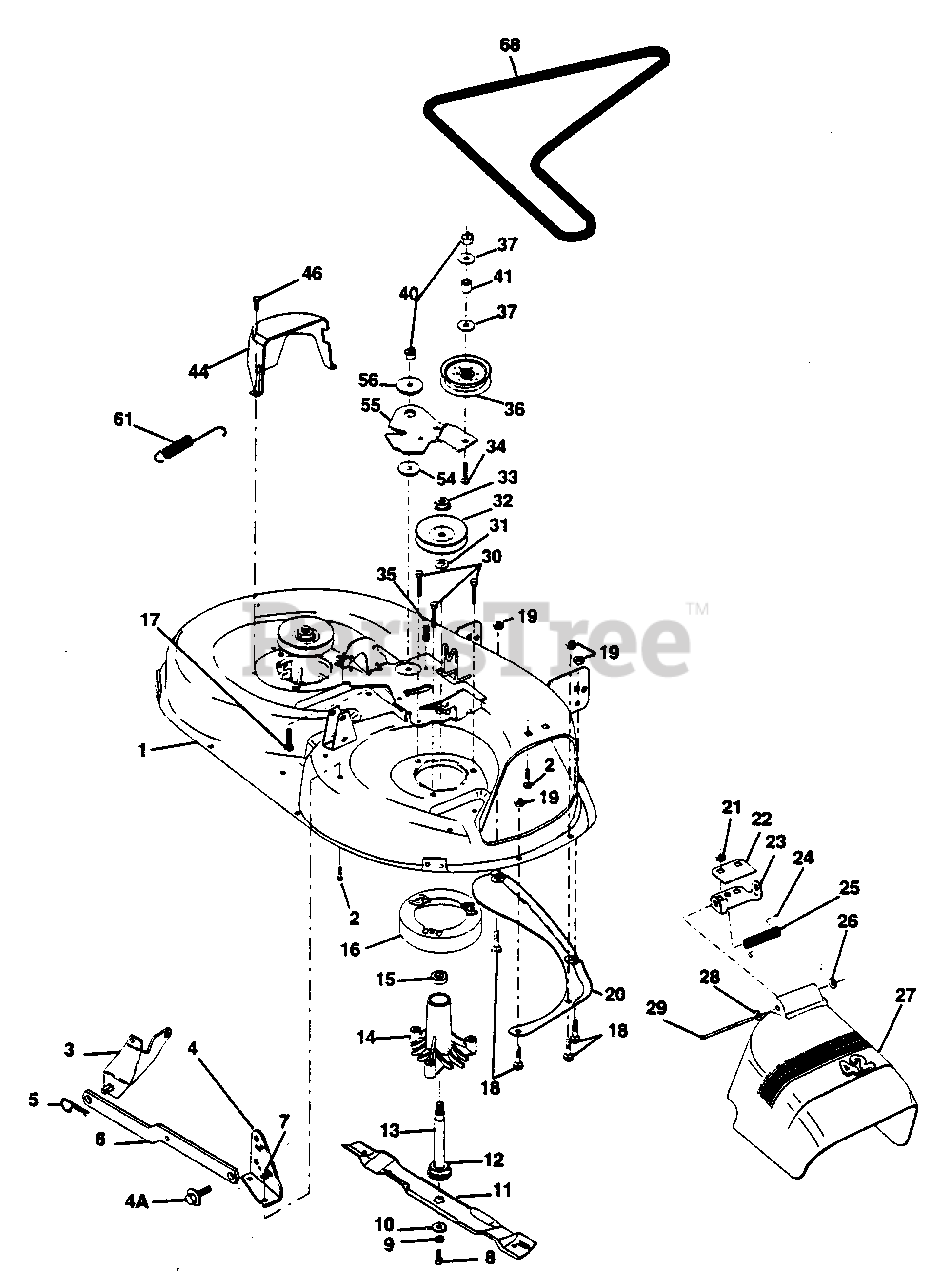

MOWER DECK 42" Parts Diagram

  • Title

1

Poulan 532140081

Deck Asm Mower 42" (AYP part number)
(Superseded to 532176031)

$319.99

$

Usually ships in 3-10 days

0

2

Poulan 872140506

Bolt Rdhd Sqnk 5/16-18unc X3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Poulan 532138017

Bracket Asm Fr Sway Bar (AYP part number)

$12.99

$

Usually ships in 3-10 days

0

4

Poulan 532138440

Bracket Asm Deck Sway Bar 42" (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

4a

Poulan 532132827

Bolt Shoulder 5/16 - 18 (AYP part number)

$

$

Not available

5

Poulan 532124670

Retainer Spring (AYP part number)
(Superseded to 532085902)

$

$

Not available

6

Poulan 532130832

Arm Suspension Rear (AYP part number)
(Superseded to 532130833)

$8.99

$

In Stock, only 4 left!

0

7

Poulan 873800500

Locknut Hex W/Ins 5/16 - 18 (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

8

Poulan 532850857

Bolt 3/8-24x1 25 Gr8 Patched (AYP part number)

$4.99

$

In Stock, only 1 left!

0

9

Poulan 810030600

Washer Lock Hvy 3/8 Unplated (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

10

Poulan 532140296

Washer Hard Blade Mower Vented (AYP part number)

$6.99

$

In Stock, only 2 left!

0

11

Poulan 532134149

Blade

$

$

Not available

12

Poulan 532129895

Bearing Ball #6204 (Mandrel) (AYP part number)
(Superseded to 738220419)

$17.99

$

In Stock, only 2 left!

0

13

Poulan 532137645

Shaft Asm W/lower Bearing
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

14

Poulan 532128774

Housing Mandrel Vented(machd)

$34.99

$

Usually ships in 3-10 days

0

15

Poulan 532110485

Bearing Ball Mandrel (AYP part number)

$13.99

$

In Stock, Qty 11

0

16

Poulan 532140329

Stripper Mower Vented (AYP part number)
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

17

Poulan 872110610

Bolt Rdhd Sqnk 3/8-16 X 1-1/4
(Superseded to 872140614)

$4.99

$

Usually ships in 3-10 days

0

18

Poulan 872140505

Bolt Rdhd Sqnk 5/16-18 X 5/8 (AYP part number)
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Poulan 873800500

Locknut-hex W/ins 5/16-18unc P (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

20

Poulan 532136888

Baffle Vortex 42 (AYP part number)
(Superseded to 532159770)

$

$

Not available

21

Poulan 873800500

Nut Lock Hx w/Ins 5/16-18 (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

22

Poulan 532134753

Stiffener Bracket 42" deck (AYP part number)
(Superseded to 532177563)

$

$

Not available

23

Poulan 532131267

Bracket Deflector Mower 42" (AYP part number)
(Superseded to 532177563)

$

$

Not available

24

Poulan 532105304

Cap Sleeve 80x 112 Blk Mower (AYP part number)

$4.99

$

In Stock, Qty 20+

0

25

Poulan 532123713

Spring Torsion Deflector 2 52 (AYP part number)

$7.99

$

In Stock, only 1 left!

0

26

Poulan 532110452

Nut Push Phos & Oil (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 532130968

Shield Deflector Mower 42" Blk" (AYP part number)

$39.99

$

In Stock, Qty 9

0

28

Poulan 819111016

Washer 11/32 X 5/8 X 16 Ga (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

29

Poulan 532131491

Rod Hinge 42" 6 75 Wlg (AYP part number)
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Poulan 532138776

Screw Thdrol Hex Head (AYP part number)
(Superseded to 532157722)

$4.99

$

In Stock, Qty 16

0

31

Poulan 532129963

Washer Spacer Mower Vented (AYP part number)
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

32

Poulan 532129861

Pulley Mandrel 42" (AYP part number)
(Superseded to 532153535)

$17.99

$

In Stock, Qty 20+

0

33

Poulan 532137266

Nut Flg Top Lock Cntr B 9/16
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

34

Poulan 872110622

Bolt Rdhd 3/8-16uncx1-3/4 Gr5 (AYP part number)

$4.99

$

In Stock, Qty 10

0

35

Poulan 532133835

Fastner Christmas Tree (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

36

Poulan 532131494

Pulley Idler Flat 3 060 (AYP part number)
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

37

Poulan 819131316

Washer 13/32 X 13/16 X 16 Ga (AYP part number)

$4.99

$

In Stock, Qty 5

0

40

Poulan 873800600

Nut Lock Hx w/Wsh 3/8-16 Unc (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 532132823

Spacer Spring Stop Idler

$7.49

$

Usually ships in 3-10 days

0

44

Poulan 532140088

Guard Mandrel LH Black (AYP part number)

$34.99

$

In Stock, Qty 10

0

46

Poulan 532137729

Screw Hex Thd Cut 1/4-20x5/8 T (AYP part number)

$4.99

$

In Stock, Qty 20+

0

54

Poulan 532133943

Washer Hardened (AYP part number)
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

55

Poulan 532140084

Arm Idler 42" mower LT/YT (AYP part number)
(Superseded to 532151785)

$40.99

$

In Stock, only 1 left!

0

56

Poulan 532122052

Spacer Retainer Pm Mower (AYP part number)
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

61

Poulan 532131950

Spring Ext. Elect. Clutch 38/42"

$9.49

$

In Stock, Qty 5

0

68

Poulan 532140067

V-Belt Mower 42" 82 625 (AYP part number)
(Superseded to 581982501)

$42.99

$

In Stock, only 1 left!

0

Poulan 532130794

Mandrel Asm Service (AYP part number)

Note: Not Shown.

$56.99

$

In Stock, only 4 left!

0

Poulan 532140476

Deck Serv 42" mech Vent Multi-Lang (AYP part number)
(Superseded to 532145452)

Note: Not Shown.

$789.99

$

Usually ships in 3-10 days

0
