PP 125H38K A - Poulan Lawn Tractor (1995) TRANSAXLE HYDROGEAR, MODEL NO. 310-0500 Parts Diagram

Lawn Tractor

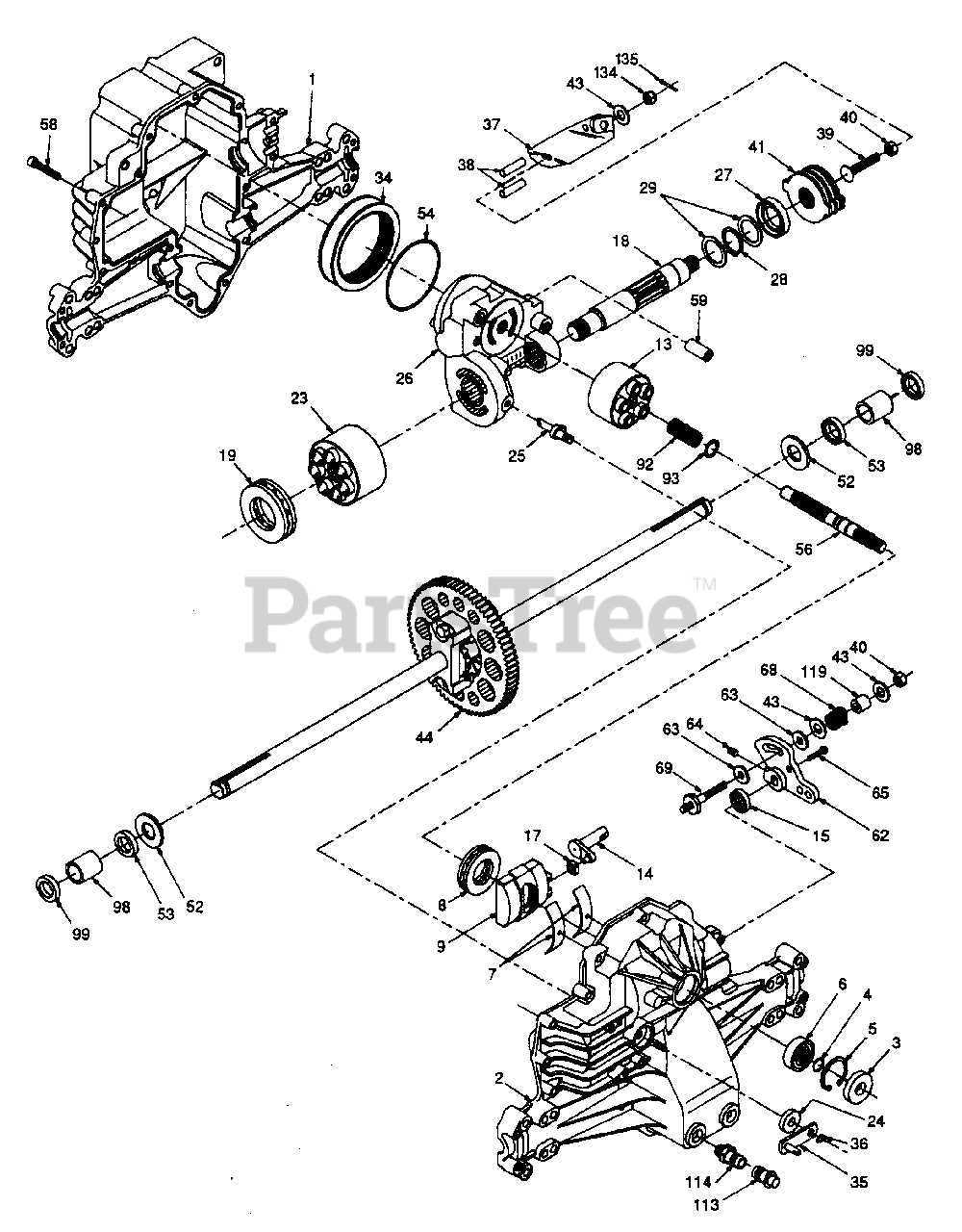

TRANSAXLE HYDROGEAR, MODEL NO. 310-0500 Parts Diagram

  • Title

1

Electrolux/AYP 532142986

Housing, Lower

$

$

Not available

2

Electrolux/AYP 532142987

Assembly, Upper Housing

$132.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 532142932

Seal, Lip

$

$

Not available

4

Electrolux/AYP 532142928

Ring, Wire Retaining

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 532142933

Ring, Retaining

$6.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 532142934

Bearing, Shaft Ball

$60.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 532142935

Bearing, Cradle

$30.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 532142936

Bearing, Thrust 30 x 52 x 13
(Superseded to 532122770)

$36.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532142937

Swashplate, Variable

$160.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532142938

Block, Cylinder Assembly
(Superseded to 532169898)

$145.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 532142939

Arm, Trunnion

$218.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 532142940

Seal, Lip

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532142941

Guide, Slot

$7.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 532142988

Shaft, Motor
(Superseded to 532150772)

$

$

Not available

19

Electrolux/AYP 532142943

Bearing, Thrust 42 x 68 x 16

$157.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 532142944

Block, Cylinder Assembly

$

$

Not available

24

Electrolux/AYP 532142945

Seal, Lip 10 x 25 x 7

$

$

Not available

25

Electrolux/AYP 532142946

Actuator, Bypass

$18.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 532142947

Center Section Assembly Kit

$283.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 532142948

Seal, Lip 26 x 42 x 8

$

$

Not available

28

Electrolux/AYP 532142949

Ring, Retaining

$6.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532142950

Washer 26 x 35 x 1

$3.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 532142951

Oil Filter Element
(Superseded to 532169893)

$125.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 532142952

Arm, Bypass

$21.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 532142953

Ring, Retaining

$6.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 532142954

Arm, Actuating
(Superseded to 532122660)

$12.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 532142955

Pin, Actuating

$10.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 532142956

Bolt 5/16-24 x 1-3/4

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 532142957

Locknut, Hex 5/16-24 UNJC

$

$

Not available

41

Electrolux/AYP 532142958

Brake Rotor/Stator Kit

$103.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 532142884

Washer 7/16 x 7/8 x .060
(Superseded to 532122660)

$12.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 532142990

Differential Assembly

$

$

Not available

52

Electrolux/AYP 532142991

Washer 3/4 x 1.5 x .13

$7.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 532142961

Seal .75 x 1.25 x .250

$10.99

$

In Stock, only 2 left!

0

54

Electrolux/AYP 532142962

O-Ring .103 x 2.987 ID

$

$

Not available

56

Electrolux/AYP 532142963

Shaft, Input

$157.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 532142964

Bolt 1/4-20 x 1.38

$6.49

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 532142965

Pin .5 OD x .43 ID x .750

$10.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 532142966

Arm, Control

$40.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 532142967

Puck, Dampener

$7.49

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 532142920

Set Screw

$9.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 532142968

Bolt #8-32 x .875

$

$

Not available

68

Electrolux/AYP 532142969

Spring
(Superseded to 142969)

$

$

Not available

69

Electrolux/AYP 532144610

Stud 5/16-24

$9.99

$

Usually ships in 3-10 days

0

92

Electrolux/AYP 532142977

Spring, Block

$6.49

$

Usually ships in 3-10 days

0

93

Electrolux/AYP 532142978

Washer, Block Thrust

$7.49

$

Usually ships in 3-10 days

0

98

Electrolux/AYP 532142993

Sleeve Bearing

$14.99

$

In Stock, only 2 left!

0

99

Electrolux/AYP 532142976

Seal, Wiper
(Superseded to 532169054)

$20.99

$

In Stock, only 2 left!

0

113

Electrolux/AYP 532142917

Cap, Vent Assembly
(Superseded to 532142578)

$46.99

$

Usually ships in 3-10 days

0

114

Electrolux/AYP 532142918

Fitting, O-Ring Assembly

$

$

Not available

119

Electrolux/AYP 532142980

Spacer
(Superseded to 584282801)

$4.99

$

Usually ships in 3-10 days

0

134

Electrolux/AYP 532144607

Nut, Castle 5/16-24
(Superseded to 532122658)

$6.49

$

Usually ships in 3-10 days

0

135

Electrolux/AYP 532144608

Pin, Cotter
(Superseded to 532122656)

$

$

Not available
