PP 125H38K A - Poulan Lawn Tractor (1995) MOWER DECK Parts Diagram

Lawn Tractor

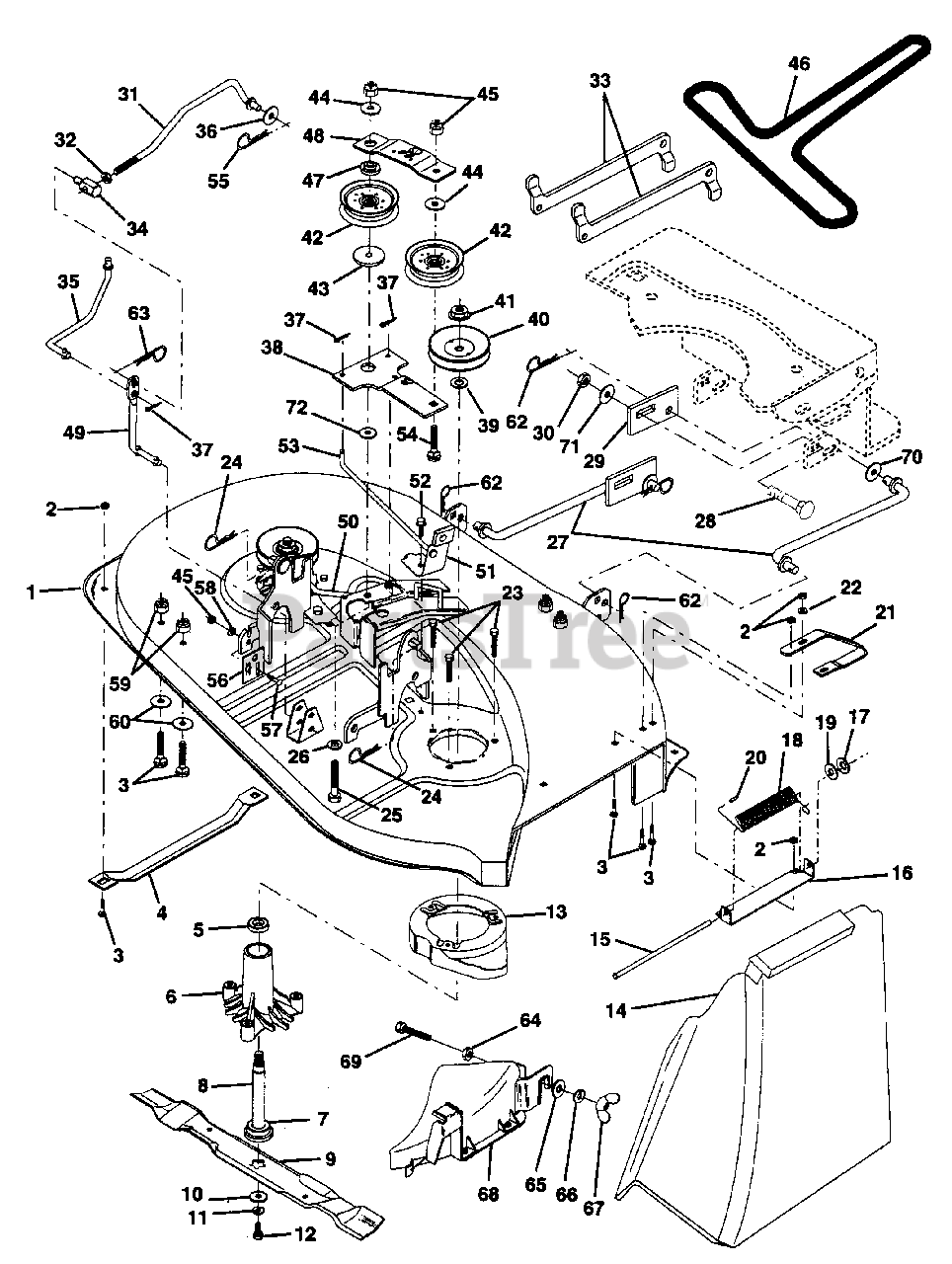

MOWER DECK Parts Diagram

  • Title

1

Electrolux/AYP 532142830

Mower Deck Assembly
(Superseded to 532188249)

$303.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 873680500

Nut, Lock Hx w/Ins 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 872140506

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

4

Electrolux/AYP 532125074

Runner, L.H.
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 532110485

Bearing

$13.99

$

In Stock, Qty 11

0

6

Electrolux/AYP 532128774

Housing, Mandrel

$34.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 532129895

Bearing
(Superseded to 738220419)

$17.99

$

In Stock, only 2 left!

0

8

Electrolux/AYP 532137645

Shaft and Bearing Assembly, Mandrel (Inc.7)
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

9

Electrolux/AYP 532134148

Blade

$26.99

$

In Stock, only 2 left!

0

10

Electrolux/AYP 532140296

Washer, Hardened

$6.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP 810030600

Washer, Lock 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 532850857

Bolt, Hex 3/8-24 x 1-1/4 Grade 8

$4.99

$

In Stock, only 1 left!

0

13

Electrolux/AYP 532140329

Stripper, Mower, Vented
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 532106736

Shield, Deflector

$

$

Not available

15

Electrolux/AYP 532106735

Rod, Hinge

$10.99

$

In Stock, only 1 left!

0

16

Electrolux/AYP 532137607

Bracket Assembly, Deflector

$6.49

$

In Stock, only 2 left!

0

17

Electrolux/AYP 532110452

Pushnut

$3.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 532123713

Spring, Deflector

$7.99

$

In Stock, only 1 left!

0

19

Electrolux/AYP 819111016

Washer 11/32 x 5/8 x 16 Gauge
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 532105304

Cap, Sleeve

$4.99

$

In Stock, Qty 20+

0

21

Electrolux/AYP 532128772

Runner, R.H.

$

$

Not available

22

Electrolux/AYP 819111216

Washer 11/32 x 3/4 x 16 Gauge
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 532138776

Screw Thdrol Hex Head Zinc MWR
(Superseded to 532157722)

$4.99

$

In Stock, Qty 16

0

24

Electrolux/AYP 532124670

Retainer, Spring
(Superseded to 532085902)

$

$

Not available

25

Electrolux/AYP 874600636

Bolt Hex 3/8-16 x 2-1/4
(Superseded to 874760636)

$6.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 819131612

Washer 13/32 x 1 x 12 Gauge

$6.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 532139756

Link Assembly, Front

$

$

Not available

28

Electrolux/AYP 872140608

Bolt RDHD SQNK 3/8 - 16 x 1
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532139757

Plate Slide Link
(Superseded to 139757)

$

$

Not available

30

Electrolux/AYP 873800600

Nut, Lock Hex w/washer 3/8 - 16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 532140915

Clutch Rod, Primary

$14.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 873350600

Nut, Hex, Jam 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

33

Electrolux/AYP 532132559

Arm, Suspension, Rear

$

$

Not available

34

Electrolux/AYP 532133604

Trunnion 3/8-16

$17.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 532132554

Clutch Rod, Secondary

$

$

Not available

36

Electrolux/AYP 819131316

Washer 13/32 x 13/16 x 16 Gauge

$4.99

$

In Stock, Qty 5

0

37

Electrolux/AYP 876020312

Pin, Cotter 3/32 x 3/4
(Superseded to 876020308)

$

$

Not available

38

Electrolux/AYP 532133840

Idler Arm

$

$

Not available

39

Electrolux/AYP 532129963

Washer .150 Thick
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

40

Electrolux/AYP 532129206

Pulley, Mandrel
(Superseded to 532153532)

$22.99

$

In Stock, only 2 left!

0

41

Electrolux/AYP 532137266

Nut, Flangelock 9/16
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

42

Electrolux/AYP 532121316

Pulley, Flat Idler

$51.99

$

In Stock, only 4 left!

0

43

Electrolux/AYP 532122052

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

44

Electrolux/AYP 819131612

Washer 13/32 x 1 x 12 Gauge

$6.49

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 873680600

Nut, Crownlock 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

46

Electrolux/AYP 532126520

Belt
(Superseded to 532419271)

$60.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 532133502

Spacer, Idler Arm

$6.49

$

In Stock, only 1 left!

0

48

Electrolux/AYP 532133503

Stiffener, Idler Arm

$6.49

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 532133551

Rod, Pivot

$8.99

$

In Stock, only 1 left!

0

50

Electrolux/AYP 532131289

Rod, Brake, L.H.

$

$

Not available

51

Electrolux/AYP 532130840

Brake Assembly

$12.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 817490512

Screw, Hex Washer Head, Thd., Roll. 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

53

Electrolux/AYP 532131288

Rod, Brake, R.H.

$8.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 872110614

Bolt, Carriage 3/8-16 x 1-3/4 Grade 5
(Superseded to 596136201)

$4.99

$

In Stock, only 1 left!

0

55

Electrolux/AYP 532124961

Spring, Retainer
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

56

Electrolux/AYP 532136782

Adjustment Plate, Rear Link, L.H.

$2.99

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 872140608

Bolt, Carriage 3/8-16 x 1
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 819131212

Washer 13/32 x 3/4 x 12 Gauge
(Superseded to 19131212)

$

$

Not available

59

Electrolux/AYP 873800500

Locknut, Hex, with Washer Insert 5/16-18
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

60

Electrolux/AYP 819111112

Washer 11/32 x 11/16 x 12 Gauge

$4.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 532124660

Retainer Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

63

Electrolux/AYP 532124788

Retainer Spring
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

64

Electrolux/AYP 873930600

Nut, Centerlock 3/8 - 16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 819132016

Washer 13/32 x 1-1/4 x 16 Ga.
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 810040600

Washer Lock 3/8
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 532135651

Nut Wing

$3.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 532132803

Cover Asm Mulching

$66.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 874930620

Bolt 3/8 - 16 x 1-1/4

$3.99

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 819162016

Washer 1/2 x 1-1/4 x 16 Ga.

$

$

Not available

71

Electrolux/AYP 819131610

Washer Flat 13/32 x 1 x 10 Ga.

$6.49

$

In Stock, Qty 7

0

72

Electrolux/AYP 532133943

Washer Hardened
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 532130794

Mandrel Ass'y

Note: (Inc. 5-8, 10-12, 39 & 41); Not Shown.

$56.99

$

In Stock, only 2 left!

0

Electrolux/AYP 532142836

Mower Deck, Compl. (Std. Deck
(Superseded to 532142862)

Note: Order Mulcher Plate Components Separately Key Nos. 64-69); Not Shown.

$

$

Not available
