PP 125H38K A - Poulan Lawn Tractor (1995) GROUND DRIVE Parts Diagram

Lawn Tractor

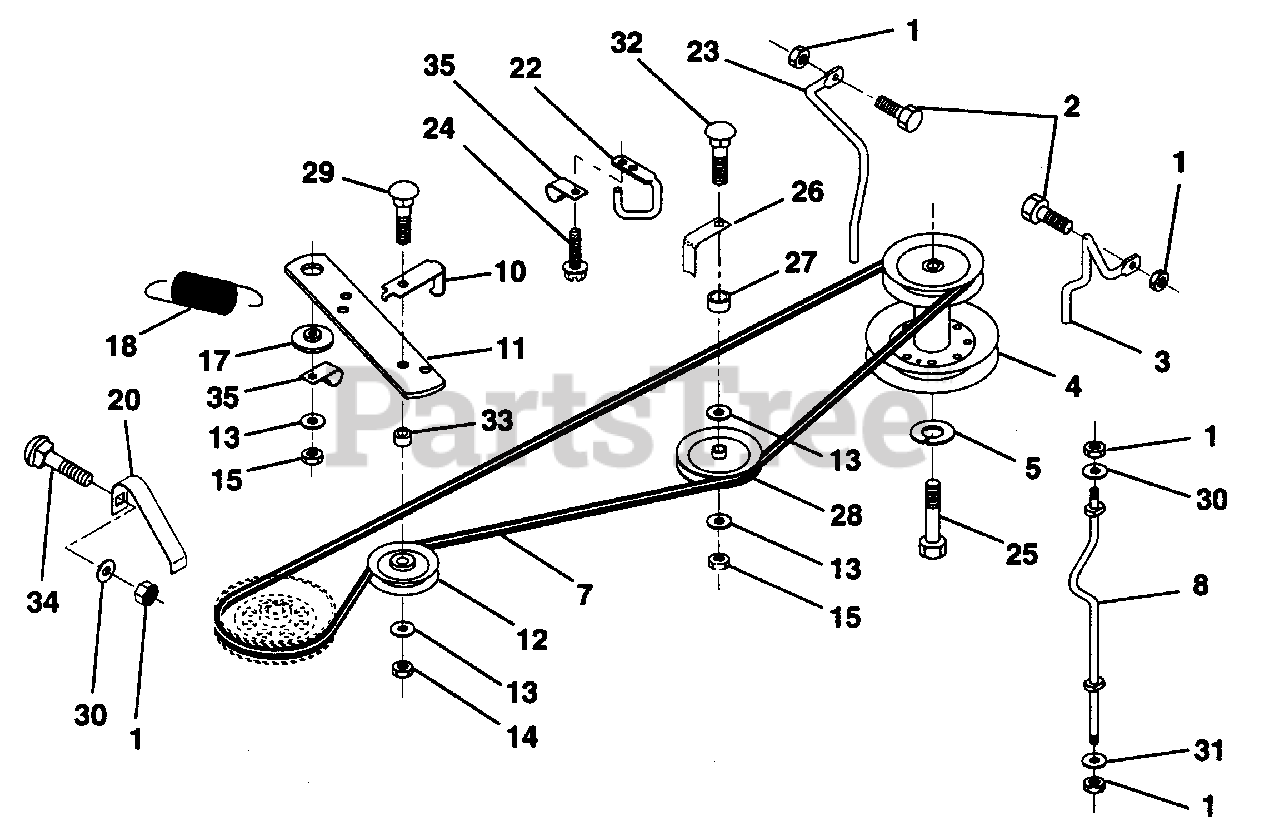

GROUND DRIVE Parts Diagram

  • Title

1

Electrolux/AYP 873800500

Nut, Lock Hx w/Ins 5/16-18
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

2

Electrolux/AYP 874760512

Bolt, Hex Head 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 532140917

Keeper, Belt RH Front

$4.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 532138029

Pulley, Engine

$

$

Not available

5

Electrolux/AYP 810040700

Washer, Lock 7/16
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 532140910

V-Belt

$72.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 532140785

Keeper, Belt RH

$

$

Not available

10

Electrolux/AYP 532140780

Keeper, Belt, Idler Pulley

$

$

Not available

11

Electrolux/AYP 532140911

Arm, Idler

$

$

Not available

12

Electrolux/AYP 532123674

Idler, Flat

$31.99

$

In Stock, only 1 left!

0

13

Electrolux/AYP 819131316

Washer 13/32 x 13/16 x 16 Gauge

$4.99

$

In Stock, Qty 5

0

14

Electrolux/AYP 873930600

Nut, Centerlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 873680600

Nut, Hex, Lock Hex w/wsh 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

17

Electrolux/AYP 532122052

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 532131459

Spring, Extension

$

$

Not available

20

Electrolux/AYP 532140909

Keeper, Belt LH

$

$

Not available

22

Electrolux/AYP 532123404

Keeper Frame Ground Drive Belt

$

$

Not available

23

Electrolux/AYP 532142240

Keeper, Belt LH Front

$

$

Not available

24

Electrolux/AYP 817720408

Screw, Thd. Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 871170744

Bolt, Hex 7/16-20

$2.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 532140913

Keeper, Belt

$5.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 532140914

Spacer

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 532139123

Pulley, V-Idler

$37.99

$

In Stock, only 1 left!

0

29

Electrolux/AYP 872140618

Bolt, RDHD SQ 3/8-16 x 2-1/4
(Superseded to 872110618)

$6.49

$

In Stock, only 2 left!

0

30

Electrolux/AYP 819111116

Washer, Nut Lock Hex w/Ins. 5/6-18
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 819111216

Washer 11/32 x 3/4 x 16 Ga.
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 872140620

Carriage Bolt
(Superseded to 596337801)

$5.99

$

In Stock, Qty 11

0

33

Electrolux/AYP 532000160

Spacer

$

$

Not available

34

Electrolux/AYP 872140506

Carriage Bolt
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

35

Electrolux/AYP 532126472

Clip Insulator

$

$

Not available
