PP 125H38 KA - Poulan Pro Lawn Tractor MOWER LIFT LEVER Parts Diagram

Lawn Tractor

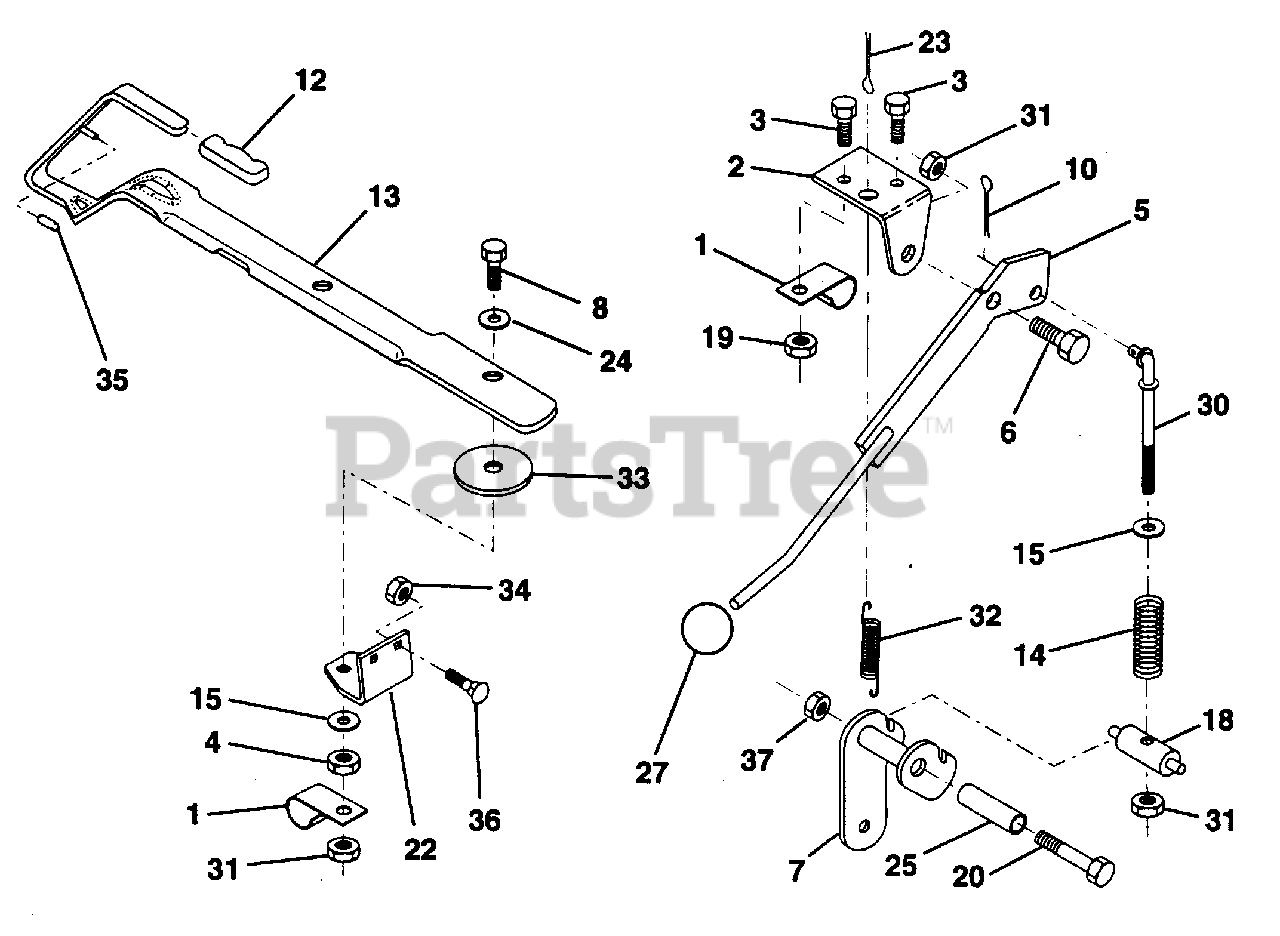

MOWER LIFT LEVER Parts Diagram

  • Title

1

Poulan 532126470

Clip, Insulated (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

2

Poulan 532122018

Bracket, Mower Clutch (AYP part number)

$

$

Not available

3

Poulan 871110408

Bolt, Hex Head, Fin. 1/4-20 UNC x 1/2 Grade 5 (AYP part number)
(Superseded to 71110408)

$2.99

$

Usually ships in 3-10 days

0

4

Poulan 873930600

Nut, Centerlock (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 532145187

Assembly, Clutch Lever (AYP part number)

$

$

Not available

6

Poulan 532106451

Bolt, Shoulder (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

7

Poulan 532141435

Assembly, Mower Clutch Arm (AYP part number)

$

$

Not available

8

Poulan 874930624

Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number)

$7.99

$

Usually ships in 3-10 days

0

10

Poulan 876020412

Pin, Cotter 1/8 x 3/4 (AYP part number)
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

12

Poulan 532122027

Handle, Lift Lever (AYP part number)

$

$

Not available

13

Poulan 532136658

Assembly, Lift Handle (AYP part number)

$

$

Not available

14

Poulan 532133939

Spring, Compression (AYP part number)

$

$

Not available

15

Poulan 819131616

Washer 13/32 x 1 x 11 Gauge (AYP part number)
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

18

Poulan 532135107

Trunnion, Threaded 3/8-16 (AYP part number)

$

$

Not available

19

Poulan 873680400

Nut, Crownlock 1/4-20 (AYP part number)
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

20

Poulan 874760644

Bolt, Hex Head, Fin. 3/8-16 UNC x 2-3/4 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

22

Poulan 532132561

Bracket, Lift Lever (AYP part number)

$

$

Not available

23

Poulan 876020312

Pin, Cotter 3/32 x 3/4 (AYP part number)
(Superseded to 876020308)

$

$

Not available

24

Poulan 532007672

Washer 25/64 x 1-1/4 x 12 Gauge (AYP part number)

$

$

Not available

25

Poulan 532121933

Tube, Spacer (AYP part number)

$

$

Not available

27

Poulan 532106932

Knob (AYP part number)

$7.99

$

In Stock, Qty 5

0

30

Poulan 532135039

Rod, Tension, Clutch (AYP part number)

$

$

Not available

31

Poulan 873800600

Nut Lock Hex w/wsh 3/8 - 16 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

32

Poulan 532133435

Spring, Extension, Return (AYP part number)

$

$

Not available

33

Poulan 532062333

Washer .390 x 1.437 x .074 (AYP part number)

$

$

Not available

34

Poulan 873800500

Nut, Lock Hx w/Ins 5/16-18 (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

35

Poulan 532133603

Cap, Vinyl, Red (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

36

Poulan 872140506

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

37

Poulan 873680600

Nut Crownlock 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0
