PP 12542 JA - Poulan Pro Lawn Tractor MOWER DECK Parts Diagram

Lawn Tractor

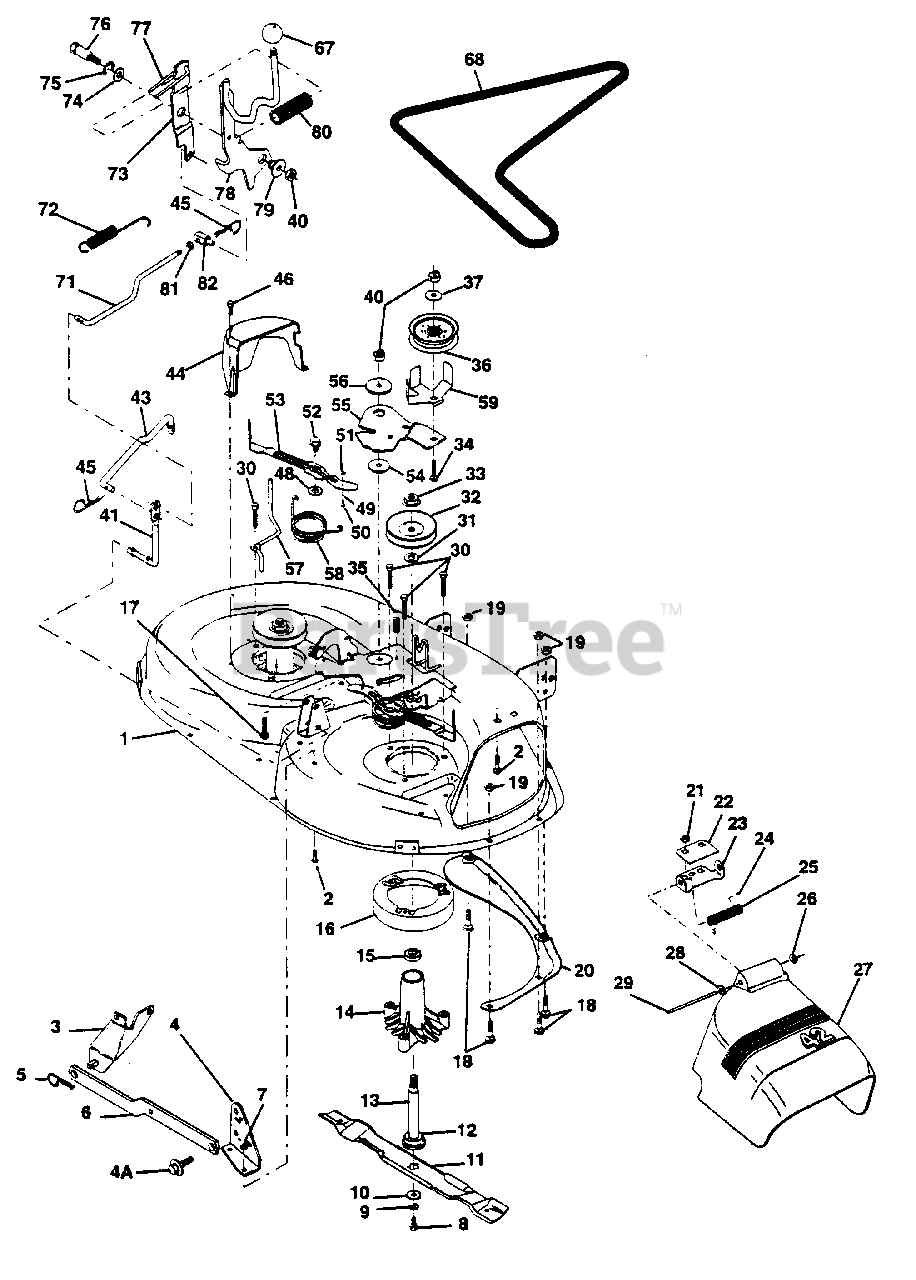

MOWER DECK Parts Diagram

  • Title

1

Poulan 532140081

Deck Asm MWR 42"weldment (AYP part number)
(Superseded to 532176031)

$319.99

$

Usually ships in 3-10 days

0

2

Poulan 872140506

Bolt Rdhd Sqnk 5/16-18unc X3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Poulan 532138017

Bracket Asm Fr Sway Bar 38/42 (AYP part number)

$12.99

$

Usually ships in 3-10 days

0

4

Poulan 532138440

Bracket Asm Deck 42"sway Bar (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

4A

Poulan 532132827

Bolt Shoulder (AYP part number)

$

$

Not available

5

Poulan 532124670

Retainer Spring (AYP part number)
(Superseded to 532085902)

$

$

Not available

6

Poulan 532130832

Arm Suspension Rear (AYP part number)
(Superseded to 532130833)

$8.99

$

In Stock, only 4 left!

0

7

Poulan 873800500

Locknut-hex W/ins 5/16-18unc P (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

8

Poulan 532850857

Bolt 3/8 - 24 X 1.25 Gr 8 (AYP part number)

$4.99

$

In Stock, only 1 left!

0

9

Poulan 810030600

Washer Lock Hvy 3/8 (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

10

Poulan 532140296

Washer Hard Blade Mower Vented (AYP part number)

$6.99

$

In Stock, only 2 left!

0

11

Poulan 532134149

Blade Mower Mulching 42"

$

$

Not available

12

Poulan 532129895

Bearing Ball #6024 (Mandrel) (AYP part number)
(Superseded to 738220419)

$17.99

$

In Stock, only 2 left!

0

13

Poulan 532137645

Shaft Asm W/lower Bearing
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

14

Poulan 532128774

Housing Mandrel Vented

$34.99

$

Usually ships in 3-10 days

0

15

Poulan 532110485

Bearing Ball Mandrel (AYP part number)

$13.99

$

In Stock, Qty 11

0

16

Poulan 532140329

Stripper Mower Vented (AYP part number)
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

17

Poulan 872110610

Bolt Rdhd Sqnk 3/8-16 X 1-1/4
(Superseded to 872140614)

$4.99

$

Usually ships in 3-10 days

0

18

Poulan 872140505

Bolt Rdhd Sqnk 5/16-18 X 5/8 (AYP part number)
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Poulan 873800500

Locknut-hex W/ins 5/16-18unc P (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

20

Poulan 532136888

Baffle Vortex 42 (AYP part number)
(Superseded to 532159770)

$

$

Not available

21

Poulan 873800500

Nut Lock Hex W/Ins 5/16-18 (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

22

Poulan 532134753

Stiffener Bracket 42"deck (AYP part number)
(Superseded to 532177563)

$

$

Not available

23

Poulan 532131267

Bracket Deflector Mower 42" (AYP part number)
(Superseded to 532177563)

$

$

Not available

24

Poulan 532105304

Cap Sleeve 80x 112 Blk Mower (AYP part number)

$4.99

$

In Stock, Qty 20+

0

25

Poulan 532123713

Spring Torsion Deflector 2 52 (AYP part number)

$7.99

$

In Stock, only 1 left!

0

26

Poulan 532110452

Nut Push Phos & Oil (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 532130968

Shield Deflector Mower 42" Blk (AYP part number)

$39.99

$

In Stock, Qty 9

0

28

Poulan 819111016

Washer 11/32 X 5/8 X 16 Ga (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

29

Poulan 532131491

Rod Hinge 42"6 75 Wlg (AYP part number)
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Poulan 532138776

Screw Thdrol Hex Head Zinc Mwr (AYP part number)
(Superseded to 532157722)

$4.99

$

In Stock, Qty 20+

0

31

Poulan 532129963

Washer Spacer Mower Vented (AYP part number)
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

32

Poulan 532129861

Pulley Mandrel 42" (AYP part number)
(Superseded to 532153535)

$17.99

$

In Stock, Qty 20+

0

33

Poulan 532137266

Nut 9/16 Toplock Flng Oil Dip
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

34

Poulan 872110614

Bolt Rdhd 3/8-16uncx1-3/4 Gr5 (AYP part number)
(Superseded to 596136201)

$4.99

$

In Stock, only 1 left!

0

35

Poulan 532133835

Fastner Christmas Tree (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

36

Poulan 532131494

Pulley Idler Flat 3 060 (AYP part number)
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

37

Poulan 819131316

Washer 13/32 X 13/16 X 16 (AYP part number)

$4.99

$

In Stock, Qty 5

0

40

Poulan 873800600

Nut Lock Hex W/Ins 3/8-16 Unc (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 532133551

Rod Pivot W/nibs (AYP part number)

$8.99

$

In Stock, only 1 left!

0

43

Poulan 532140083

Rod Clutch Secondary W/nibs (AYP part number)

$

$

Not available

44

Poulan 532140088

Guard Mandrel LH Black (AYP part number)

$34.99

$

In Stock, Qty 10

0

45

Poulan 532124788

Spring Retainer 1" Zinc/cad (AYP part number)
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

46

Poulan 532137729

Screw Hex Thd Cut 1/4-20x5/8 T (AYP part number)

$4.99

$

In Stock, Qty 19

0

48

Poulan 532133944

Washer Hardened Smaller (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

49

Poulan 532133940

Roller Asm Cam Follower 42"dec (AYP part number)
(Superseded to 532155066)

$10.99

$

In Stock, only 4 left!

0

50

Poulan 532131340

Bolt Shldr 10-24 Zinc Gr 5 42" (AYP part number)
(Superseded to 131340)

$

$

Not available

51

Poulan 532069180

Nut Lock #10-24 Unc (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

52

Poulan 532139888

Bolt Shoulder 5/16-18 Unc Blkz (AYP part number)

$6.49

$

In Stock, only 1 left!

0

53

Poulan 532131845

Arm Asm Pad Brake (AYP part number)
(Superseded to 532184907)

$14.99

$

Usually ships in 3-10 days

0

54

Poulan 532133943

Washer Hardened (AYP part number)
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

55

Poulan 532140084

Arm Idler 42"mower LT/YT (AYP part number)
(Superseded to 532151785)

$40.99

$

In Stock, only 1 left!

0

56

Poulan 532122052

Spacer Retainer Pm Mower (AYP part number)
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

57

Poulan 532140090

Keeper Belt LH Front (AYP part number)

$

$

Not available

58

Poulan 532140086

Spring Torsion Brakes (AYP part number)

$6.49

$

In Stock, only 1 left!

0

59

Poulan 532141043

Guard TUV Idler (AYP part number)

$

$

Not available

67

Poulan 532106933

Knob Rd 1/2-13 Plstc Thds Blk (AYP part number)

$7.99

$

In Stock, only 1 left!

0

68

Poulan 532140067

V-Belt Mower 42" 82 625 (AYP part number)
(Superseded to 581982501)

$42.99

$

In Stock, only 1 left!

0

71

Poulan 532142427

Rod Clutch Primary 38/42 (AYP part number)
(Superseded to 532142655)

$

$

Not available

72

Poulan 532131870

Spring Return (AYP part number)

$18.99

$

In Stock, only 1 left!

0

73

Poulan 532127847

Arm Clutch Secondary (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

74

Poulan 532121748

Washer 25/32 X 1-5/8 X 16 Ga (AYP part number)

$4.99

$

In Stock, Qty 20+

0

75

Poulan 812000029

Ring Klip #t5304-75 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

76

Poulan 532128903

Bolt Shoulder 3/8-16 Unc 1 44 (AYP part number)

$6.99

$

In Stock, only 2 left!

0

77

Poulan 532127845

Keeper Spring 4 000 (AYP part number)

$

$

Not available

78

Poulan 532140179

Arm Asm Clutch Primary (AYP part number)
(Superseded to 140179)

$

$

Not available

79

Poulan 532127498

Bushing 747 Od X 794 Lg Brass (AYP part number)

$

$

Not available

80

Poulan 532128759

Spring Clutch Mower 2 750 Zinc (AYP part number)
(Superseded to 532153701)

$

$

Not available

81

Poulan 873350600

Nut Hex Jam 3/8-16 (AYP part number)
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

82

Poulan 532142028

Trunnion Adj 94 (AYP part number)

$

$

Not available

Poulan 532140475

Deck Serv 42"mch S Bar Mult-Lang (AYP part number)
(Superseded to 532164963)

Note: Not Shown.

$728.99

$

Usually ships in 3-10 days

0

Poulan 532130794

Mandrel Asm Service (Includes Key Nos. 8-10, 12-15, 31 and 33) (AYP part number)

Note: Not Shown.

$56.99

$

In Stock, Qty 5

0
