PP 12538 - Poulan Pro Lawn Tractor TRANSAXLE AND REAR WHEEL Parts Diagram

Lawn Tractor

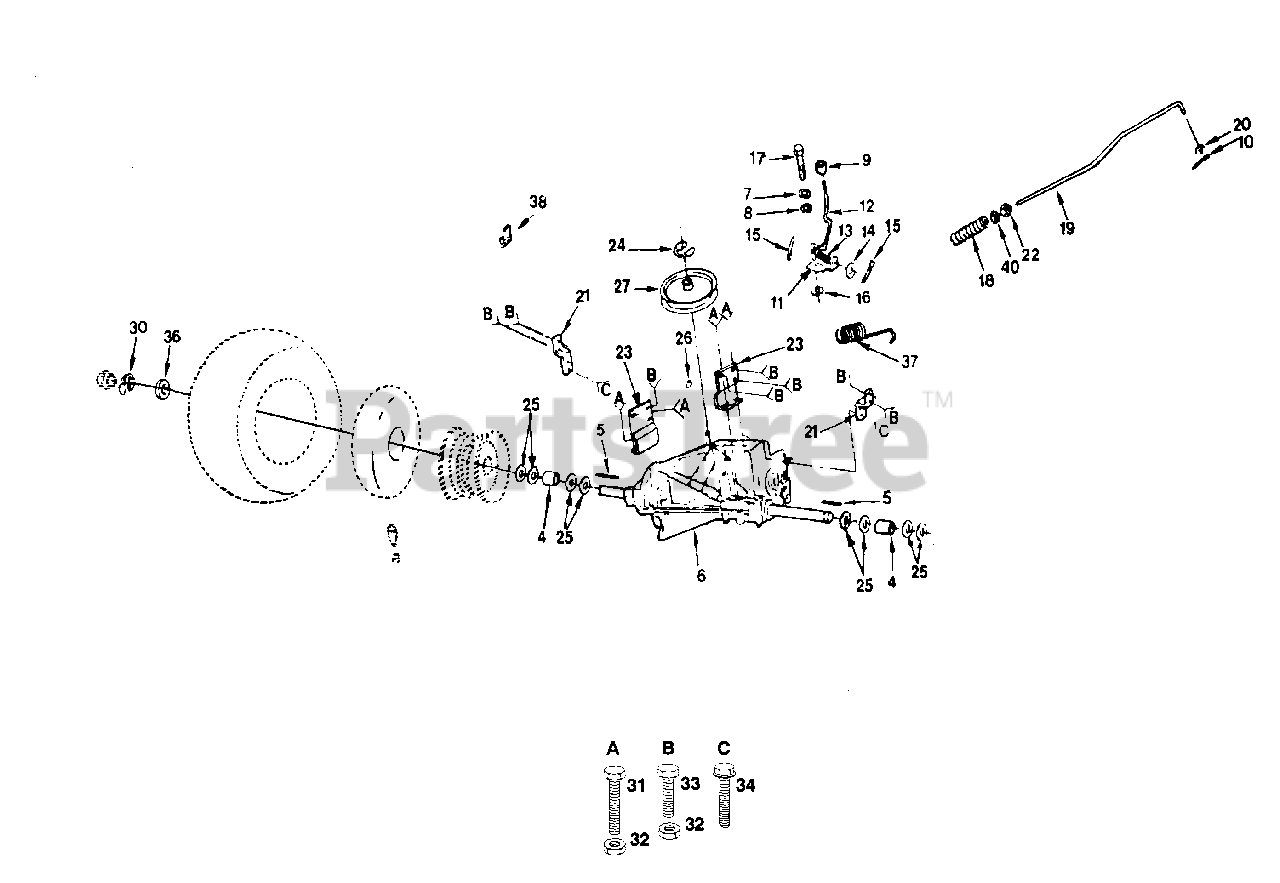

TRANSAXLE AND REAR WHEEL Parts Diagram

  • Title

4

Poulan 532109502

Spacer, Split (AYP part number)

$

$

Not available

5

Poulan 532123583

Key, Square 3/16 x 2 (AYP part number)

$4.99

$

In Stock, only 3 left!

0

6

Poulan 532120898

Transaxle, Foote, 6 speed (AYP part number)

$

$

Not available

7

Poulan 810040400

Washer, Lock 1/4 (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

8

Poulan 819091210

Washer 9/32 x 3/4 x 10 Ga. (AYP part number)
(Superseded to 734115441)

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 532106933

Knob, Control (AYP part number)

$7.99

$

In Stock, only 1 left!

0

10

Poulan 876020412

Pin, Cotter 1/8 x 3/4 (AYP part number)
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 532106919

Plate, Rod, Shift (AYP part number)

$

$

Not available

12

Poulan 532124461

Rod, Shifter (AYP part number)

$

$

Not available

13

Poulan 532105700

Spring, Torsion (AYP part number)

$

$

Not available

14

Poulan 819151216

Washer 15/32 x 3/4 x 16 Ga. (AYP part number)
(Superseded to 19151216)

$

$

Not available

15

Poulan 876020416

Pin, Cotter 1/8 x 1 (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

16

Poulan 532105701

Washer, Shift Plate (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

17

Poulan 871040412

Bolt, Hex 1/4-28 x 3/4 Grade 8 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

18

Poulan 532106888

Spring, Rod, Brake (AYP part number)
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

19

Poulan 532131876

Rod, Brake (AYP part number)

$

$

Not available

20

Poulan 819131316

Washer 13/32 x 13/16 x 16 Ga. (AYP part number)

$4.99

$

In Stock, Qty 5

0

21

Poulan 532121520

Strap, Torque (AYP part number)

$7.99

$

In Stock, only 3 left!

0

22

Poulan 873350600

Nut, Hex Jam 3/8-16 (AYP part number)
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

23

Poulan 532109167

Bracket, Transaxle (AYP part number)

$

$

Not available

24

Poulan 812000028

Ring, Retainer (AYP part number)
(Superseded to 532002267)

$7.49

$

In Stock, Qty 8

0

25

Poulan 532121749

Washer 25/32 x 1-1/4 x 16 Ga. (AYP part number)

$3.49

$

Usually ships in 3-10 days

0

26

Poulan 532125096

Woodruff Key 3/16 x 3/4 (AYP part number)

$9.49

$

In Stock, only 1 left!

0

27

Poulan 532123666

Pulley, Input Transaxle (AYP part number)

$45.99

$

In Stock, only 1 left!

0

30

Poulan 812000001

E-Ring (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

31

Poulan 874760644

Bolt, Hex 3/8-16 x 2-3/4 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

32

Poulan 873680600

Locknut 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, Qty 9

0

33

Poulan 874760612

Bolt, Hex 3/8-16 x 3/4 (AYP part number)

$4.99

$

In Stock, only 2 left!

0

34

Poulan 817490512

Screw, Hex Washer Hd. Thd. Form. Type TT 5/16-18 UNC x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

36

Poulan 532121748

Washer 25/32 x 1-5/8 x 16 Ga. (AYP part number)

$4.99

$

In Stock, Qty 10

0

37

Poulan 532110422

Spring, Brake Return (AYP part number)
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

38

Poulan 532124996

Clip, Line, Fuel (AYP part number)
(Superseded to 532002751)

$

$

Not available

40

Poulan 873800600

Locknut, Hex w/Washer 3/8-16 UNC (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0
