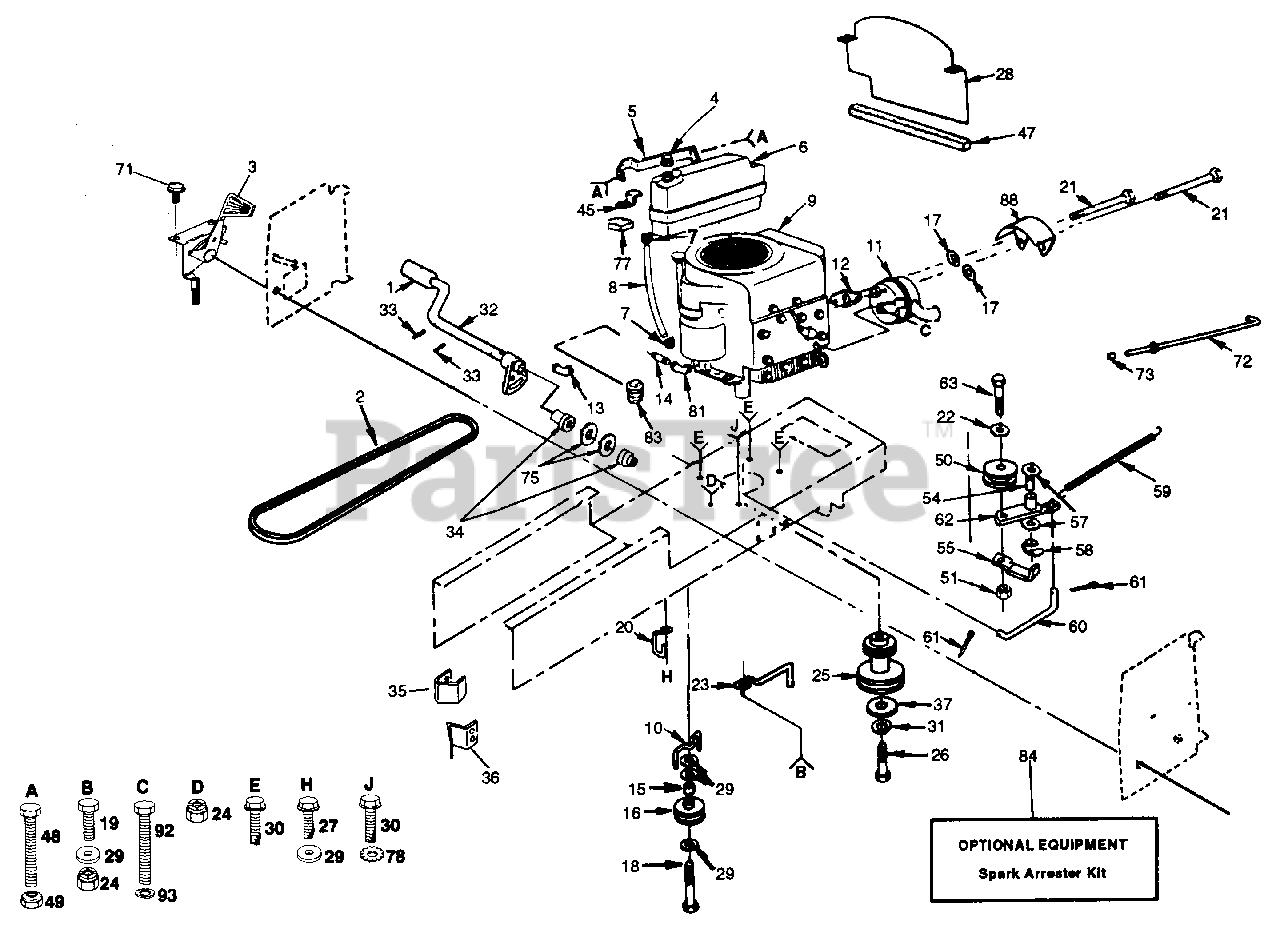

PP 12538 - Poulan Pro Lawn Tractor POWER & MECHANICAL GROUP Parts Diagram

Lawn Tractor

POWER & MECHANICAL GROUP Parts Diagram

  • Title

1

Poulan 532124872

Cover, Pedal (AYP part number)
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

2

Poulan 532125907

V-Belt, Drive (AYP part number)

$39.99

$

In Stock, Qty 9

0

3

Poulan 532121275

Control, Throttle (AYP part number)

$

$

Not available

4

Poulan 532124912

Cap, Fuel (AYP part number)
(Superseded to 532008504)

$

$

Not available

5

Poulan 532121281

Support, Tank, Fuel (AYP part number)

$

$

Not available

6

Poulan 532121280

Tank, Fuel (AYP part number)

$

$

Not available

7

Poulan 532123487

Clamp, Hose (AYP part number)

$7.49

$

In Stock, only 4 left!

0

8

Poulan 532124923

Line, Fuel (AYP part number)
(Superseded to 532007833)

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 532109070

Belt, Keeper (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 532121304

Muffler (AYP part number)

$

$

Not available

12

Poulan 532125593

Gasket, Exhaust (AYP part number)
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

13

Poulan 813240300

90ø Street Elbow 3/8 NPT (AYP part number)

$7.99

$

Usually ships in 3-10 days

0

14

Poulan 813280328

Std. Pipe Nipple 3/8-18 NPT x 3-1/2 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

15

Poulan 532124965

Spacer (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

16

Poulan 532131494

Idler, Flat (AYP part number)
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

17

Poulan 819151616

Washer 15/32 x 1 x 16 Gauge (AYP part number)
(Superseded to 734117801)

$

$

Not available

18

Poulan 874760644

Bolt, Hex 3/8-16 x 2-3/4 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 874760616

Bolt, Hex 3/8-16 x 1 (AYP part number)
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

20

Poulan 532104777

Retainer, Belt, Chassis, L.H. (AYP part number)
(Superseded to 532136715)

$

$

Not available

21

Poulan 532121744

Bolt, Shoulder 5/16-18 (AYP part number)

$

$

Not available

22

Poulan 819131316

Washer 13/32 x 13/16 x 16 Gauge (AYP part number)

$4.99

$

In Stock, Qty 5

0

23

Poulan 532129921

Keeper, Belt, Engine (AYP part number)

$

$

Not available

24

Poulan 873680600

Nut, Crownlock 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

25

Poulan 532131002

Pulley, Engine (AYP part number)
(Superseded to 532136004)

$

$

Not available

26

Poulan 871170768

Bolt, Hey 7/16-20 x 4-1/4 Grade 5 (AYP part number)
(Superseded to 532173937)

$4.99

$

In Stock, only 1 left!

0

27

Poulan 817490612

Screw, Hex Washer Thread Rolling 3/8-16 x 3/4 (AYP part number)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

28

Poulan 532109623

Baffle, Verticle (AYP part number)

$

$

Not available

29

Poulan 819131312

Washer 13/32 x 13/16 x 12 Gauge (AYP part number)
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

30

Poulan 817490620

Screw, Hex, Washer Head, Thread Rolling 3/8-16 x 1 x 1/4, Type TT (AYP part number)
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

31

Poulan 810040700

Washer, Lock (AYP part number)
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

32

Poulan 532122424

Shaft, Pedal Foot (AYP part number)

$

$

Not available

33

Poulan 532124963

Pin, Roll 3/16 x 1 (AYP part number)
(Superseded to 532002882)

$

$

Not available

34

Poulan 532120183

Bearing, Nylon (AYP part number)

$6.99

$

In Stock, only 4 left!

0

35

Poulan 532127275

Keeper, Belt, L.H. (AYP part number)

$

$

Not available

36

Poulan 532127274

Keeper, Belt, R.H. (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

37

Poulan 532126197

Washer (AYP part number)

$8.99

$

In Stock, only 3 left!

0

45

Poulan 532104799

Brace, Tank (AYP part number)

$

$

Not available

47

Poulan 532104915

Strip, Foam (AYP part number)
(Superseded to 532105037)

$

$

Not available

48

Poulan 874780512

Bolt, Hex 5/16-18 x 3/4 Grade 5 (AYP part number)
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

49

Poulan 873680500

Locknut 5/16-18 Grade 8
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

50

Poulan 532127783

Pulley, Idler
(Superseded to 532139245)

$37.99

$

In Stock, only 2 left!

0

51

Poulan 873680600

Locknut 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

54

Poulan 532105706

Bearing (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

55

Poulan 532123205

Retainer, Belt (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

57

Poulan 532110812

Washer, Hardened (AYP part number)
(Superseded to 110812X)

$

$

Not available

58

Poulan 812000039

Ring, Klip (AYP part number)

$6.49

$

In Stock, Qty 7

0

59

Poulan 532105709

Spring, Return, Clutch (AYP part number)

$11.99

$

In Stock, only 4 left!

0

60

Poulan 532105710

Link, Clutch (AYP part number)
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

61

Poulan 876020412

Pin, Cotter 1/8 x 3/4 (AYP part number)
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

62

Poulan 532123789

Bellcrank Assembly (Inc. Key No. 54) (AYP part number)

$

$

Not available

63

Poulan 874760624

Bolt, Hex 3/8-16 x 1-1/2 (AYP part number)
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

71

Poulan 817720410

Screw, Hex Thread Cutting 1/4-20 x 5/8 (AYP part number)
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

72

Poulan 532125637

Rod, Brake, Park (AYP part number)
(Superseded to 532133261)

$

$

Not available

73

Poulan 532071673

Cap, Plunger (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

75

Poulan 819211616

Washer 21/32 x 1 x 16 Gauge (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

77

Poulan 532006431

Pad, Spacer (AYP part number)

$

$

Not available

78

Poulan 811050600

Washer, Lock, External Tooth 3/8 (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

81

Poulan 813310300

45ø Street Elbow (AYP part number)

$8.99

$

Usually ships in 3-10 days

0

84

Poulan 532122083

Kit, Arrester, Spark (AYP part number)

$

$

Not available

88

Poulan 532121742

Shield, Heat, Muffler (AYP part number)

$

$

Not available

92

Poulan 874780408

Bolt, Hex 1/4-20 x 1/2 Grade 5 (AYP part number)
(Superseded to 74780408)

$1.49

$

Usually ships in 3-10 days

0

93

Poulan 810040400

Washer, Lock 1/4 (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0
