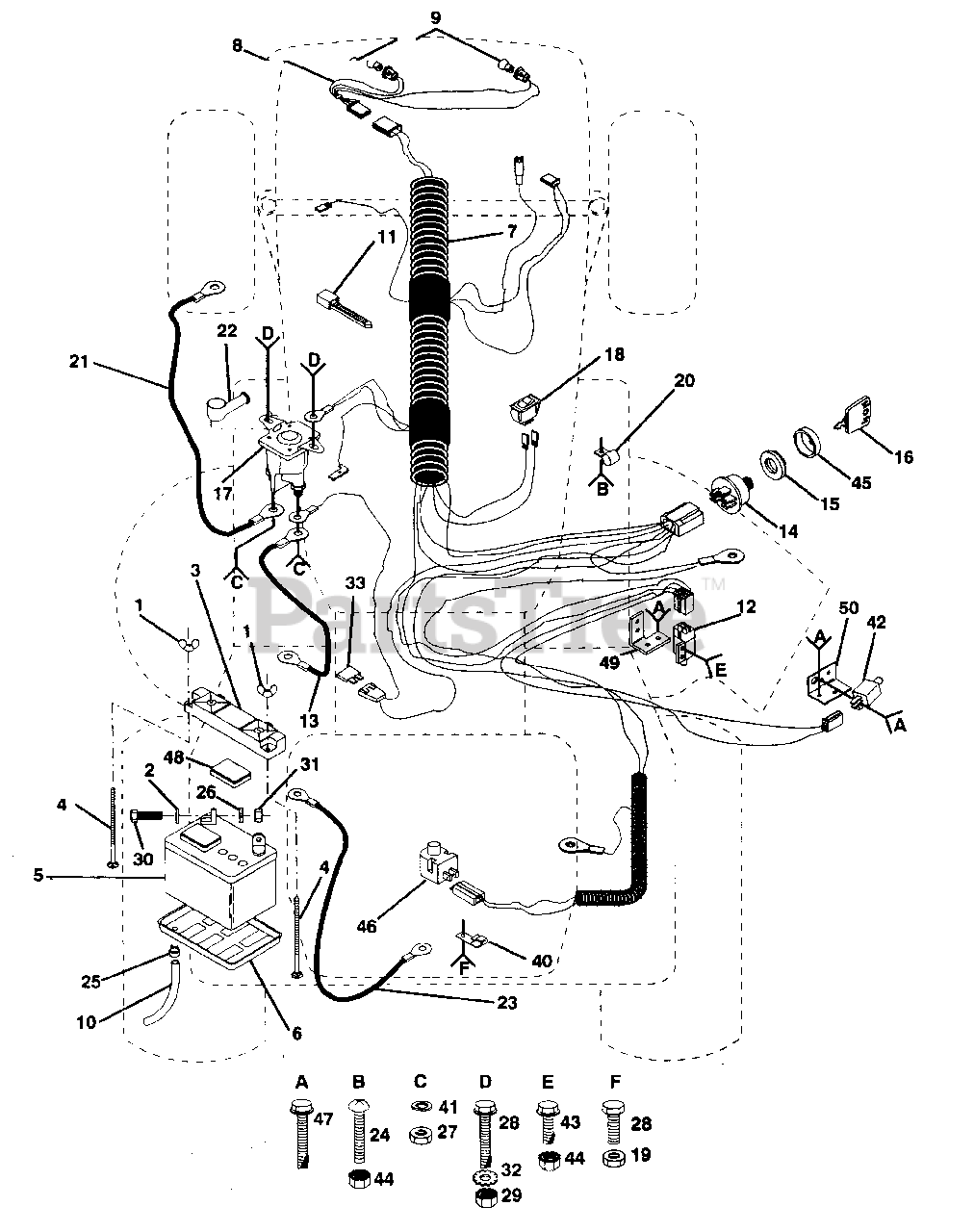

PP 12538 - Poulan Pro Lawn Tractor ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title

1

Poulan 532123198

Nut, Wing 1/4-20 (AYP part number)
(Superseded to 532146525)

$

$

Not available

2

Poulan 819091016

Washer 9/32 x 5/8 x 16 Gauge (AYP part number)
(Superseded to 596582301)

$3.99

$

In Stock, Qty 5

0

3

Poulan 532102476

Guard, Terminal (AYP part number)
(Superseded to 532150109)

$

$

Not available

4

Poulan 872240460

Bolt, Carriage 1/4-20 x 7-1/2 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

5

Poulan 532121265

Battery (AYP part number)
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

6

Poulan 532124886

Tray, Battery (AYP part number)
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

7

Poulan 532133482

Harness, Ignition

$

$

Not available

8

Poulan 532127441

Harness, Socket, Light (AYP part number)
(Superseded to 532136850)

$

$

Not available

9

Poulan 532124893

Bulb, Light (AYP part number)
(Superseded to 532007662)

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 532124924

Tube, Tray, Battery (AYP part number)
(Superseded to 532007604)

$

$

Not available

11

Poulan 532124756

Tie, Cable (AYP part number)
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

12

Poulan 532109553

Switch, Clutch, Attachment, Interlock (AYP part number)
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

13

Poulan 532124770

Cable, Battery (AYP part number)
(Superseded to 532185464)

$10.99

$

Usually ships in 3-10 days

0

14

Poulan 532125104

Switch, Ignition (AYP part number)
(Superseded to 532365402)

$31.99

$

In Stock, only 4 left!

0

15

Poulan 532124211

Nut, Ignition (AYP part number)

$5.99

$

In Stock, only 1 left!

0

16

Poulan 532122147

Key (AYP part number)

$

$

Not available

17

Poulan 532109081

Solenoid (AYP part number)
(Superseded to 532109946)

$24.99

$

In Stock, only 2 left!

0

18

Poulan 532110712

Switch, Light (AYP part number)

$9.49

$

In Stock, only 4 left!

0

19

Poulan 873680400

Nut, Hex 1/4-20 (AYP part number)
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

20

Poulan 532124967

Clip, Wire (AYP part number)

$

$

Not available

21

Poulan 532124780

Cable, Battery (AYP part number)
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

22

Poulan 532131563

Cover, Terminal (AYP part number)
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

23

Poulan 532124773

Cable, Battery (AYP part number)
(Superseded to 532420700)

$8.99

$

Usually ships in 3-10 days

0

24

Poulan 874641008

Screw #10/32 x 1/2 Pan Head UNF (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

25

Poulan 532109596

Clamp, Hose (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

26

Poulan 810040400

Washer, Lock Heavy Helical 1/4 (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

27

Poulan 873350400

Nut, Hex Jam 1/4-20 (AYP part number)
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

28

Poulan 874780408

Bolt, Hex 1/4-20 x 1/2 Grade 5 (AYP part number)
(Superseded to 74780408)

$1.49

$

Usually ships in 3-10 days

0

29

Poulan 873510400

Nut, Keps, Hex 1/4-20 (AYP part number)
(Superseded to 873640400)

$

$

Not available

30

Poulan 874760412

Bolt, Hex 1/4-20 x 3/4 (AYP part number)

$7.49

$

In Stock, only 1 left!

0

31

Poulan 873220400

Nut, Hex 1/4-20 (AYP part number)
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

32

Poulan 811050400

Washer, Lock External Tooth 1/4 (AYP part number)
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

33

Poulan 532108824

Fuse (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

40

Poulan 532124995

Clip, Insulated (AYP part number)

$

$

Not available

41

Poulan 810090400

Washer, Lock 1/4 (AYP part number)
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

42

Poulan 532104445

Switch, Interlock, Clutch Pedal (AYP part number)

$17.99

$

In Stock, only 1 left!

0

43

Poulan 871031008

Screw, Hex Washer Head (AYP part number)
(Superseded to 874641008)

$2.99

$

Usually ships in 3-10 days

0

44

Poulan 873951000

Nut, Keps #10-32 UNF (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

45

Poulan 532123620

Bezel, Ignition (AYP part number)
(Superseded to 532141226)

$5.99

$

Usually ships in 3-10 days

0

46

Poulan 532121305

Switch, Plunger (AYP part number)
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

47

Poulan 817021008

Screw, Hex Tapping #10-24 x 1/2 (AYP part number)

$4.99

$

In Stock, Qty 14

0

48

Poulan 532121264

Caps, Battery (Set) (AYP part number)

$

$

Not available

49

Poulan 532108236

Bracket, Switch, Interlock (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

50

Poulan 532130890

Bracket, Switch (AYP part number)

$

$

Not available
