PP-1250 - Echo Pole Saw (Type 1) Crankcase, Engine, Fan Case Parts Diagram

Pole Saw (Type 1)

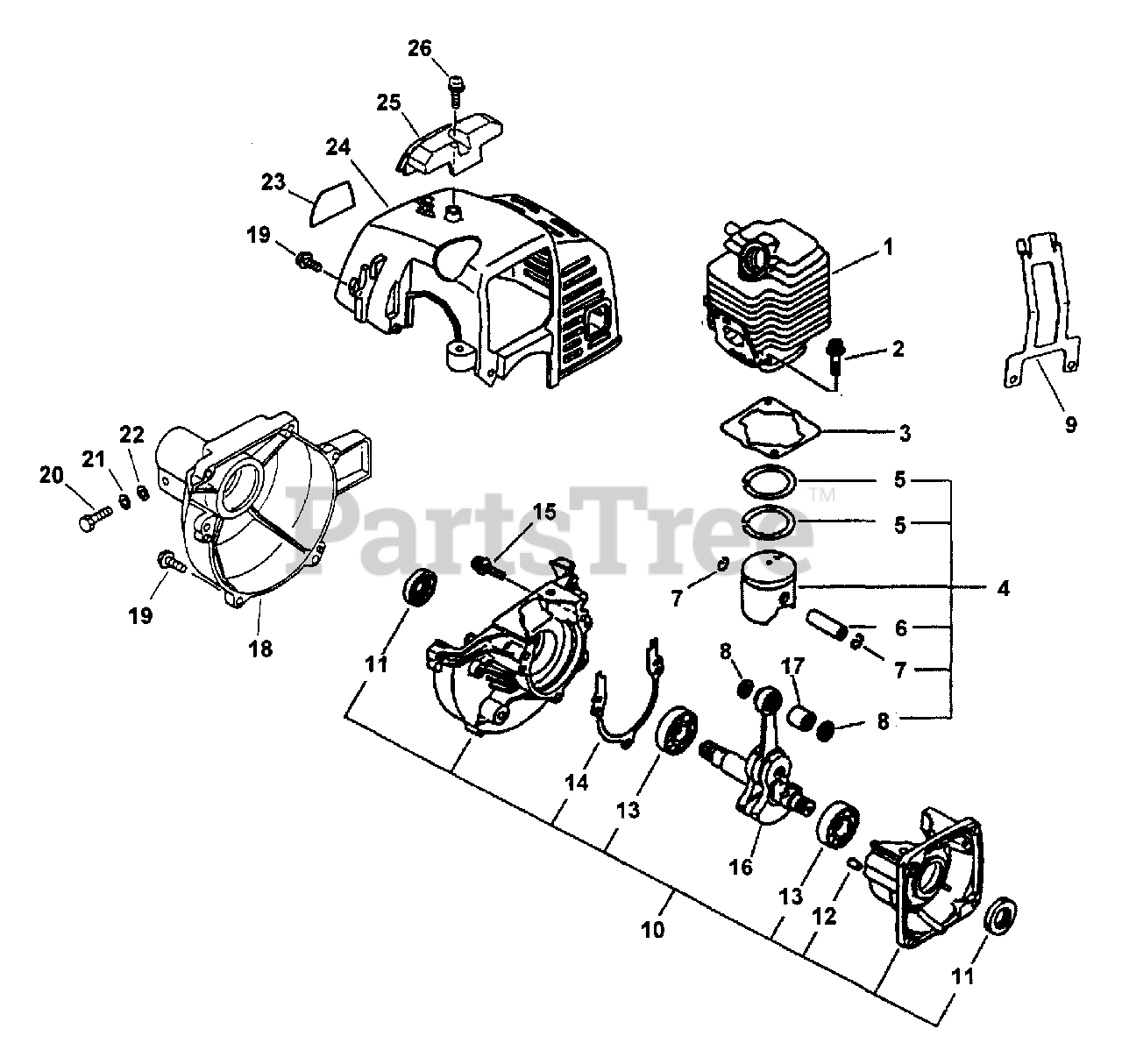

Crankcase, Engine, Fan Case Parts Diagram

  • Title

1

Echo 10101109560

CYLINDER
(Superseded to 10101108960)

Note: S/N 001001 - 007683

$

$

Not available

1

Echo 10101108960

CYLINDER
(Superseded to 10100308960)

Note: S/N 007684 - 024270 and S/N 001001 & UP; Model TYPE 1E

$

$

Not available

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

3

Echo 10101044332

GASKET, CYLINDER

Note: INCLUDED IN KIT 88900005960

$3.99

$

In Stock, Qty 6

0

4

Echo 10000009561

PISTON KIT
(Superseded to 10000009562)

Note: S/N 001001 - 005589 INCLUDES ITEMS 5 - 8

$70.99

$

In Stock, only 1 left!

0

4

Echo 10000009562

PISTON KIT
(Superseded to 10000009563)

Note: S/N 005590 - 024270 and S/N 001001 & UP; INCLUDES ITEMS 5 - 8; Model TYPE 1E

$70.99

$

In Stock, only 1 left!

0

5

Echo 10001109560

RING, PISTON

$8.49

$

Usually ships in 2-4 days

0

6

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

8

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

9

Echo 10158746730

GUARD, ENGINE

$3.99

$

Usually ships in 2-4 days

0

10

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

Note: Includes ITEMS 11-15

$140.99

$

Usually ships in 2-4 days

0

11

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 11

0

12

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

13

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

14

------------------

GASKET, CRANKCASE

Note: INCLUDED IN KIT 88900005960

$

$

Not available

15

Echo 90016205028

SCREW - 5X28

Note: S/N 001001 - 007683; INCLUDES ITEM 17

$1.99

$

In Stock, Qty 20+

0

16

Echo 10010052131

CRANKSHAFT ASSY
(Superseded to 10010052132)

$147.99

$

Usually ships in 2-4 days

0

16

Echo 10010044732

CRANKSHAFT ASSY
(Superseded to 10010044733)

Note: S/N 007684 & UP and S/N 001001 & UP; INCLUDES ITEM 17; Model TYPE 1E

$155.99

$

In Stock, only 1 left!

0

17

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$9.99

$

In Stock, only 2 left!

0

18

Echo 10151144630

CASE, FAN - ORANGE

$43.99

$

Usually ships in 2-4 days

0

19

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

20

Echo 90015105025

BOLT - 5X25

$0.99

$

Usually ships in 2-4 days

0

21

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

22

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

23

Echo 89014044530

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

24

Echo 10151444531

COVER, ENGINE - ORANGE

$20.99

$

In Stock, only 1 left!

0

25

Echo 15991244530

GUARD, TOP - BLACK

$6.99

$

In Stock, only 1 left!

0

26

Echo 90025305016

SCREW - 5X16 -- TAPPING

$0.99

$

In Stock, Qty 20+

0

Echo SB1027

SHORT BLOCK -- SB1027
(Superseded to Discontinued)

$

$

Not available

Echo 88900005960

GASKET KIT
(Superseded to Discontinued)

Note: INCLUDES THE FOLLOWING ITEMS

$

$

Not available

Echo 10101044332

GASKET, CYLINDER

$3.99

$

In Stock, Qty 6

0

Echo 14586642031

GASKET, EXHAUST

$2.49

$

In Stock, Qty 5

0

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 16

0

------------------

GASKET, CRANKCASE

$

$

Not available

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, only 2 left!

0

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo 13001005960

GASKET, INTAKE

$1.99

$

In Stock, only 2 left!

0

Echo 61041401260

GASKET, GEAR CASE

$1.49

$

In Stock, Qty 12

0
