PP 125 - Poulan Pro String Trimmer, Type 2 Cutting Equipment Type 2 Parts Diagram

String Trimmer, Type 2

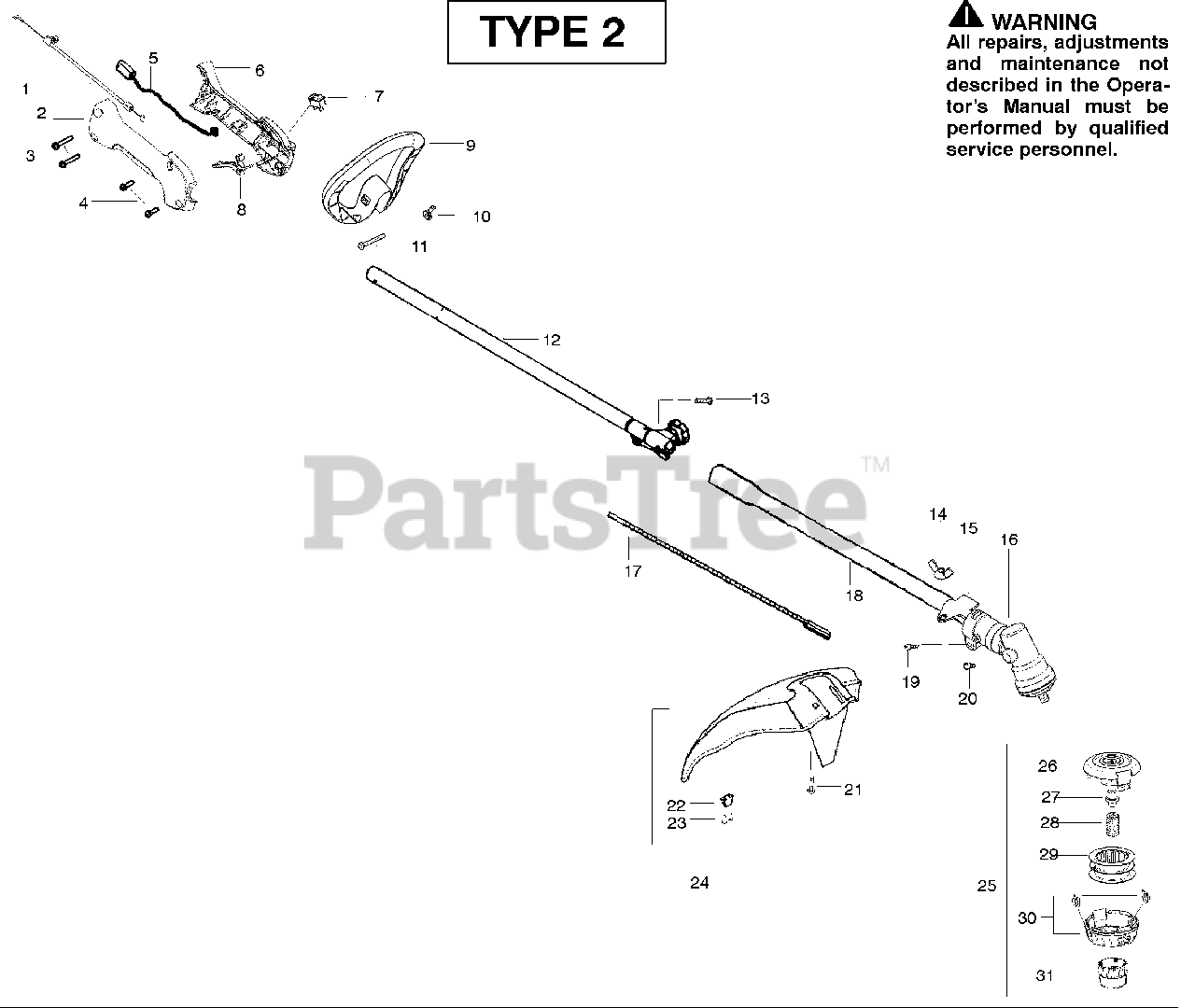

Cutting Equipment Type 2 Parts Diagram

  • Title
2

Poulan 530059759

Assy-Throttle Cable

$17.99

$

Usually ships in 3-10 days

0

2

Poulan 530057541

Hsg.-Throttle (RH)

$12.99

$

In Stock, only 2 left!

0

$6.49

$

In Stock, only 1 left!

0

$6.49

$

In Stock, Qty 16

0

5

Poulan 530054183

Assy.-Wire

$8.99

$

In Stock, only 1 left!

0

6

Poulan 530059760

Hsg. Throttle (LH)

$9.99

$

In Stock, only 1 left!

0

7

Poulan 545030601

Kit-Switch
(Superseded to 545049301)

$10.99

$

In Stock, Qty 10

0

8

Poulan 545077601

Trigger-Throttle
(Superseded to 530049107)

$

$

Not available

9

Poulan 530057546

Handle-Assist
(Superseded to 530058583)

$6.99

$

Usually ships in 3-10 days

0

10

Poulan 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

$4.99

$

In Stock, only 4 left!

0

12

Poulan 530071791

Kit-Upper Shaft
(Superseded to 575260201)

Note: (Incl. flex, clamp & 13)

$37.99

$

In Stock, only 1 left!

0

13

$

$

Not available

14

Poulan 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

15

Poulan 530057554

Bracket-Shield

$6.49

$

In Stock, only 2 left!

0

16

$53.99

$

In Stock, only 2 left!

0

17

Poulan 530096218

Flexshaft-lower
(Superseded to 545173003)

$10.99

$

In Stock, only 2 left!

0

18

Poulan 530071789

Kit-Lower Shaft

$26.99

$

Usually ships in 3-10 days

0

19

$6.49

$

In Stock, only 3 left!

0

20

$6.49

$

In Stock, only 2 left!

0

$4.99

$

In Stock, only 1 left!

0

22

Poulan 530052286

Limiter-Line

$

$

Not available

23

$6.49

$

In Stock, Qty 16

0

24

Poulan 530071997

Kit-Shield Assy.

Note: (Incl. 22,23)

$20.99

$

Usually ships in 3-10 days

0

25

Poulan 537419202

Assy-TNG7
(Superseded to 596585805)

Note: (Incl. 26, 27,28,29,30,31,32)

$31.99

$

In Stock, only 1 left!

0

26

$11.99

$

In Stock, only 2 left!

0

27

$8.99

$

In Stock, only 1 left!

0

28

Poulan 537338801

Spring P25

$6.49

$

In Stock, only 2 left!

0

29

Poulan 952711631

Assy-Wound Spool

$10.99

$

In Stock, only 1 left!

0

30

Poulan 545003365

Kit-Cover and Eyelet

$9.49

$

In Stock, only 1 left!

0

31

Poulan 537419601

Knob P25

$6.99

$

In Stock, Qty 20+

0

31

Poulan 545177328

Operator Manual

Note: Not Shown

$

$

Not available

31

Poulan 545209101

Decal-Shaft Warning

Note: Not Shown

$

$

Not available

31

Poulan 545167703

Decal-Upper Shaft

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0
