PP 1242 - Poulan Lawn Tractor (1993) ENGINE Parts Diagram

Lawn Tractor

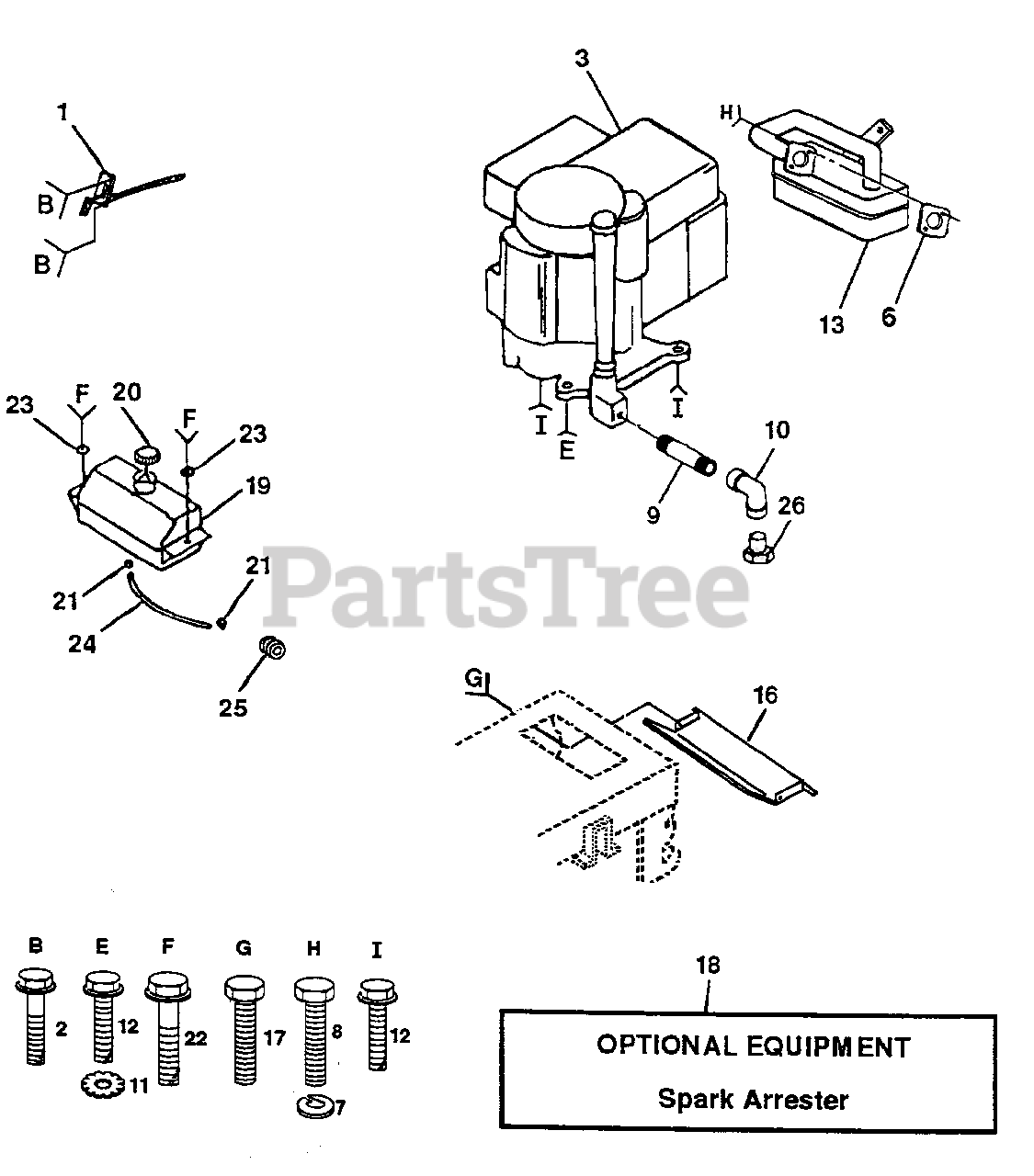

ENGINE Parts Diagram

  • Title
1

Electrolux/AYP 532132771

Control Th/ch RH Blk Tee 15 10
(Superseded to 132771)

$

$

Not available

2

Electrolux/AYP 817720410

Screw Hex Thd Cut 1/4-20x5/8 T
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

6

Electrolux/AYP 532125593

Gasket Eng 1 313 Id Tin Plated
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 810040500

Washer Lock Hvy HlcI Spr 5/16

$4.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 871070512

Screw Hexhd Cap 5/16-18x 3/4
(Superseded to 532192334)

$

$

Not available

9

Electrolux/AYP 813280324

Nipple Pipe 3/8 Npt X 3"

$

$

Not available

10

Electrolux/AYP 813200300

Elbow Std 90 Degree 3/8-18 Npt
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

11

Electrolux/AYP 811050600

Washer Lock Ext Tooth 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 817490620

Screw Thdrol 3/8-16x1-1/4 TYTT
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532137348

Muffler LT B&S 12/12 5 HP

$102.99

$

In Stock, only 1 left!

0

16

Electrolux/AYP 532128953

Shield Heat Browning LT/YT

$

$

Not available

17

Electrolux/AYP 817021008

Screw Tap Hex #10-24unc X 1/2

$4.99

$

In Stock, Qty 14

0

18

Electrolux/AYP 532137180

Kit Spark Arrestor (Flat Scrn)
(Superseded to 532121851)

$

$

Not available

19

Electrolux/AYP 532109202

Tank Fuel Front 1 25
(Superseded to 532184900)

$45.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 532123549

Cap Asm Fuel W/sym Vented
(Superseded to 532158990)

$26.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 532123487

Clamp Hose Blk

$7.49

$

In Stock, only 4 left!

0

22

Electrolux/AYP 817490412

Screw Hexwsh Thdrol 1/4-20x3/4
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

23

Electrolux/AYP 819091416

Washer 9/32 X 7/8 X 16 Ga

$6.49

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 532008548

Line Fuel 13"

$7.99

$

In Stock, only 1 left!

0

25

Electrolux/AYP 532124028

Bushing Snap Nyl Blk Fuel Line

$5.99

$

In Stock, only 3 left!

0
