PP 1242 A - Poulan Pro Lawn Tractor TRANSAXLE DANA - MODEL NUMBER 4360-48 Parts Diagram

Lawn Tractor

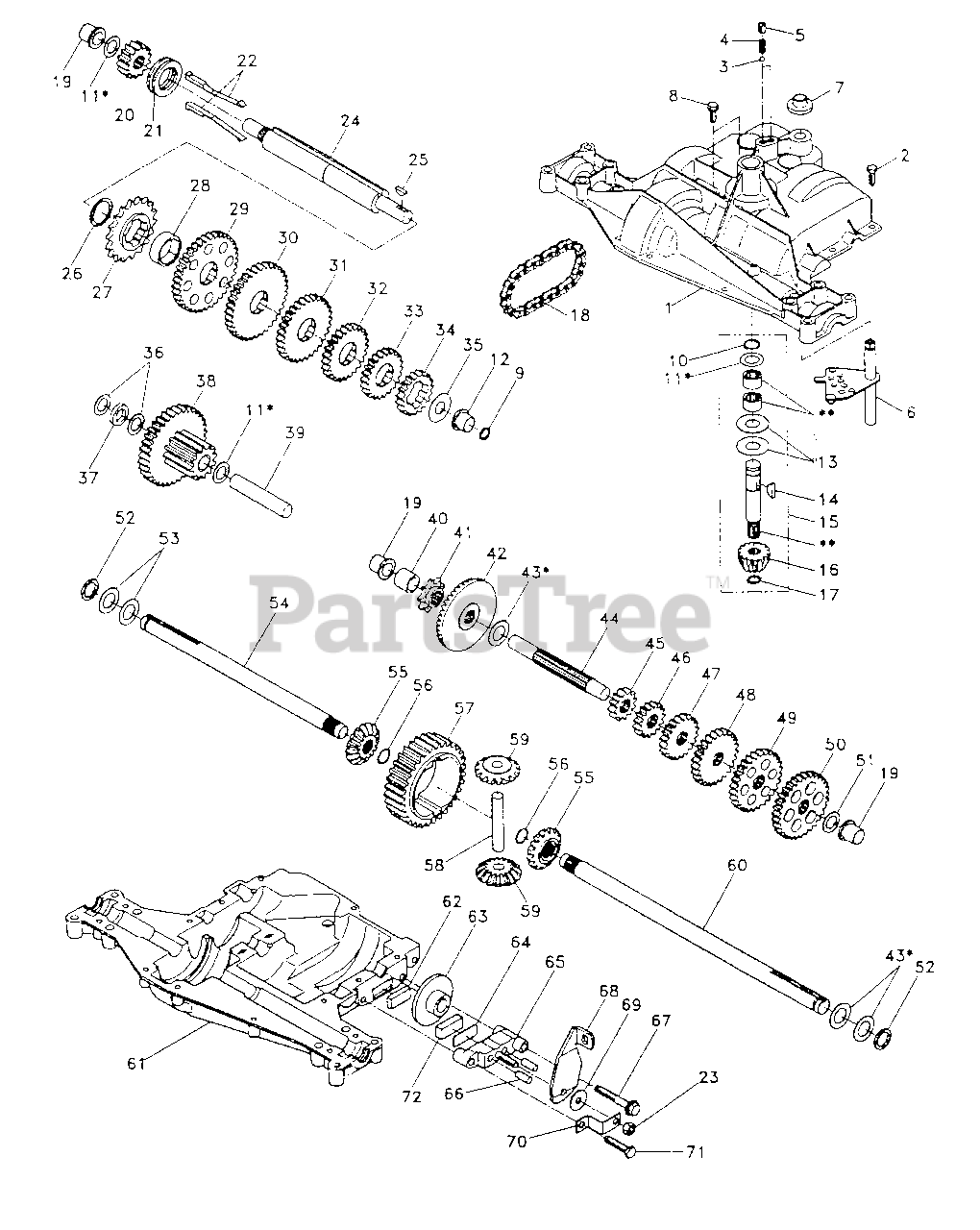

TRANSAXLE DANA - MODEL NUMBER 4360-48 Parts Diagram

  • Title

1

Poulan 138248

Housing, Upper
(Superseded to 582997301)

$236.99

$

Usually ships in 3-10 days

0

2

Poulan 74760412

Screw, Self-Tapping, Large 1/4-20 x .734
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

3

Poulan 134400

Ball, Detent (AYP part number)

$

$

Not available

4

Poulan 105904X

Spring, Detent
(Superseded to 583647001)

$

$

Not available

5

Poulan 105905X

Screw, Set
(Superseded to 583647101)

$

$

Not available

6

Poulan 138235

Kit, Shifter Assembly (AYP part number)
(Superseded to 532134788)

$

$

Not available

7

Poulan 134399

Boot, Shifter

$

$

Not available

8

Poulan 134791

Screw, Tapping w/Sealer

$

$

Not available

9

Poulan 138241

Square Ring
(Superseded to 582972401)

$

$

Not available

10

Poulan 2267J

Ring, Retaining
(Superseded to 812000028)

$7.49

$

In Stock, Qty 7

0

11

Poulan 134793

Assembly, Kit, Shim .625 Shaft
(Superseded to 532134793)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

12

Poulan 138240

Bearing, Flange
(Superseded to 148268)

$

$

Not available

13

Poulan 120415X

Washer, Plain .632 x 1.38 x .046
(Superseded to 532120415)

$2.99

$

Usually ships in 3-10 days

0

14

Poulan 2257J

Key, Woodruff, #9

$

$

Not available

15

Poulan 138234

Assembly, Kit, Input Shaft (AYP part number)
(Superseded to 167148)

$

$

Not available

16

Poulan 110078X

Pinion, Bevel, 14 Teeth (AYP part number)
(Superseded to 167148)

$

$

Not available

17

Poulan 105909X

Ring, Retaining
(Superseded to 583647301)

$5.99

$

Usually ships in 3-10 days

0

18

Poulan 105910X

Chain, 24 Pitches
(Superseded to 532105910)

$

$

Not available

19

Poulan 105911X

Bearing, Flange

$

$

Not available

20

Poulan 138242

Gear, Spur, 14 Teeth
(Superseded to 582954001)

$

$

Not available

21

Poulan 138246

Collar, Clutch
(Superseded to 582954101)

$36.99

$

Usually ships in 3-10 days

0

22

Poulan 138236

Assembly, Kit, Clutch Keys

$

$

Not available

23

Poulan 73810500

Locknut 5/16-24

$2.99

$

Usually ships in 3-10 days

0

24

Poulan 138243

Shaft, Intermediate

$

$

Not available

25

Poulan 2244J

Key, Woodruff, #61

$

$

Not available

26

Poulan 105916X

Ring, Retaining
(Superseded to 532105916)

$2.99

$

Usually ships in 3-10 days

0

27

Poulan 120470X

Sprocket, 18 Teeth

$

$

Not available

28

Poulan 110070X

Spacer
(Superseded to 583658801)

$7.99

$

Usually ships in 3-10 days

0

29

Poulan 108977X

Gear, Spur, 37 Teeth
(Superseded to 583656701)

$51.99

$

Usually ships in 3-10 days

0

30

Poulan 109254X

Gear, Spur, 35 Teeth (AYP part number)

$

$

Not available

31

Poulan 120405X

Gear, Spur, 30 Teeth (AYP part number)

$

$

Not available

32

Poulan 108980X

Gear, Spur, 25 Teeth
(Superseded to 583656801)

$46.99

$

Usually ships in 3-10 days

0

33

Poulan 120406X

Gear, Spur, 22 Teeth
(Superseded to 583662001)

$26.99

$

Usually ships in 3-10 days

0

34

Poulan 134796

Gear, Spur, 19 Teeth
(Superseded to 584444901)

$31.99

$

Usually ships in 3-10 days

0

35

Poulan 105925X

Washer, Plain .640 x 1.37 x .061
(Superseded to 583647501)

$

$

Not available

36

Poulan 2232J

Washer, Plain .632 x 1.00 x .026

$2.49

$

Usually ships in 3-10 days

0

37

Poulan 108978X

Spacer .630 x 1.00 x .169

$

$

Not available

38

Poulan 110079X

Assembly, Gear, Combination of 12 Teeth and 35 Teeth

$

$

Not available

39

Poulan 124639X

Shaft, Idler
(Superseded to 532124639)

$36.99

$

Usually ships in 3-10 days

0

40

Poulan 120472X

Spacer .635 x .875 x .755
(Superseded to 583663001)

$6.99

$

Usually ships in 3-10 days

0

41

Poulan 105928X

Sprocket, 9 Teeth
(Superseded to 532105928)

$

$

Not available

42

Poulan 110084X

Gear, Bevel, 42 Teeth
(Superseded to 167148)

$

$

Not available

43

Poulan 134394

Assembly, Kit, Shim .750 Shaft
(Superseded to 532134394)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

44

Poulan 120473X

Shaft, Drive
(Superseded to 583663101)

$

$

Not available

45

Poulan 105933X

Gear, Spur, 12 Teeth (AYP part number)

$

$

Not available

46

Poulan 106151X

Gear, Spur, 15 Teeth (AYP part number)

$

$

Not available

47

Poulan 120407X

Gear, Spur, 20 Teeth (AYP part number)

$

$

Not available

48

Poulan 106589X

Gear, Spur, 25 Teeth
(Superseded to 583651701)

$33.99

$

Usually ships in 3-10 days

0

49

Poulan 120408X

Gear, Spur, 28 Teeth
(Superseded to 583662101)

$47.99

$

Usually ships in 3-10 days

0

50

Poulan 105937X

Gear, Spur, 31 Teeth

$38.99

$

Usually ships in 3-10 days

0

51

Poulan 2226J

Washer, Plain .632 x 1.00 x .060
(Superseded to 583728901)

$

$

Not available

52

Poulan 502134401

Washer, Neoprene

$

$

Not available

53

Poulan 2264J

Washer, Plain .758 x 1.25 x .031
(Superseded to 583729701)

$4.99

$

Usually ships in 3-10 days

0

54

Poulan 120474X

Axle, L.H. (AYP part number)
(Superseded to 532154658)

$132.99

$

Usually ships in 3-10 days

0

55

Poulan 110081X

Gear, Miter, 15 Teeth
(Superseded to 532169651)

$

$

Not available

56

Poulan 105941X

Ring, Retaining
(Superseded to 583647801)

$

$

Not available

57

Poulan 110071X

Gear, Spur, 32 Teeth (AYP part number)

$

$

Not available

58

Poulan 120952X

Shaft, Cross
(Superseded to 583663901)

$17.99

$

Usually ships in 3-10 days

0

59

Poulan 110082X

Gear, Miter, 15 Teeth
(Superseded to 532169651)

$

$

Not available

60

Poulan 120475X

Axle, R.H. (AYP part number)
(Superseded to 582982401)

$265.99

$

Usually ships in 3-10 days

0

61

Poulan 138247

Housing, Lower
(Superseded to 582997301)

$236.99

$

Usually ships in 3-10 days

0

62

Poulan 120961X

Puck, Friction
(Superseded to 532120961)

$

$

Not available

63

Poulan 7294J

Disc, Brake

$

$

Not available

64

Poulan 108989X

Spacer
(Superseded to 532108989)

$

$

Not available

65

Poulan 120953X

Jaw, Brake
(Superseded to 532164670)

$

$

Not available

66

Poulan 120954X

Pin, Dowel

$

$

Not available

67

Poulan 134799

Screw, Self-Tapping, Large 5/16-18 x 2.25

$4.49

$

Usually ships in 3-10 days

0

68

Poulan 138244

Lever, Actuating
(Superseded to 532108992)

$

$

Not available

69

Poulan 108996X

Washer, Plain .321 x 1.00 x .055
(Superseded to 583657101)

$6.99

$

In Stock, Qty 9

0

70

Poulan 120956X

Bracket, Anti-Rotation

$2.49

$

Usually ships in 3-10 days

0

71

Poulan 106596X

Screw, Self-Tapping, Large 5/16-18 x 1.44

$

$

Not available

72

Poulan 120951X

Puck, Friction
(Superseded to 532120951)

$

$

Not available

73

Poulan 120416X

Grease (AYP part number)

$

$

Not available
