PP 1238 A - Poulan Pro Lawn Tractor MOWER 38" Parts Diagram

Lawn Tractor

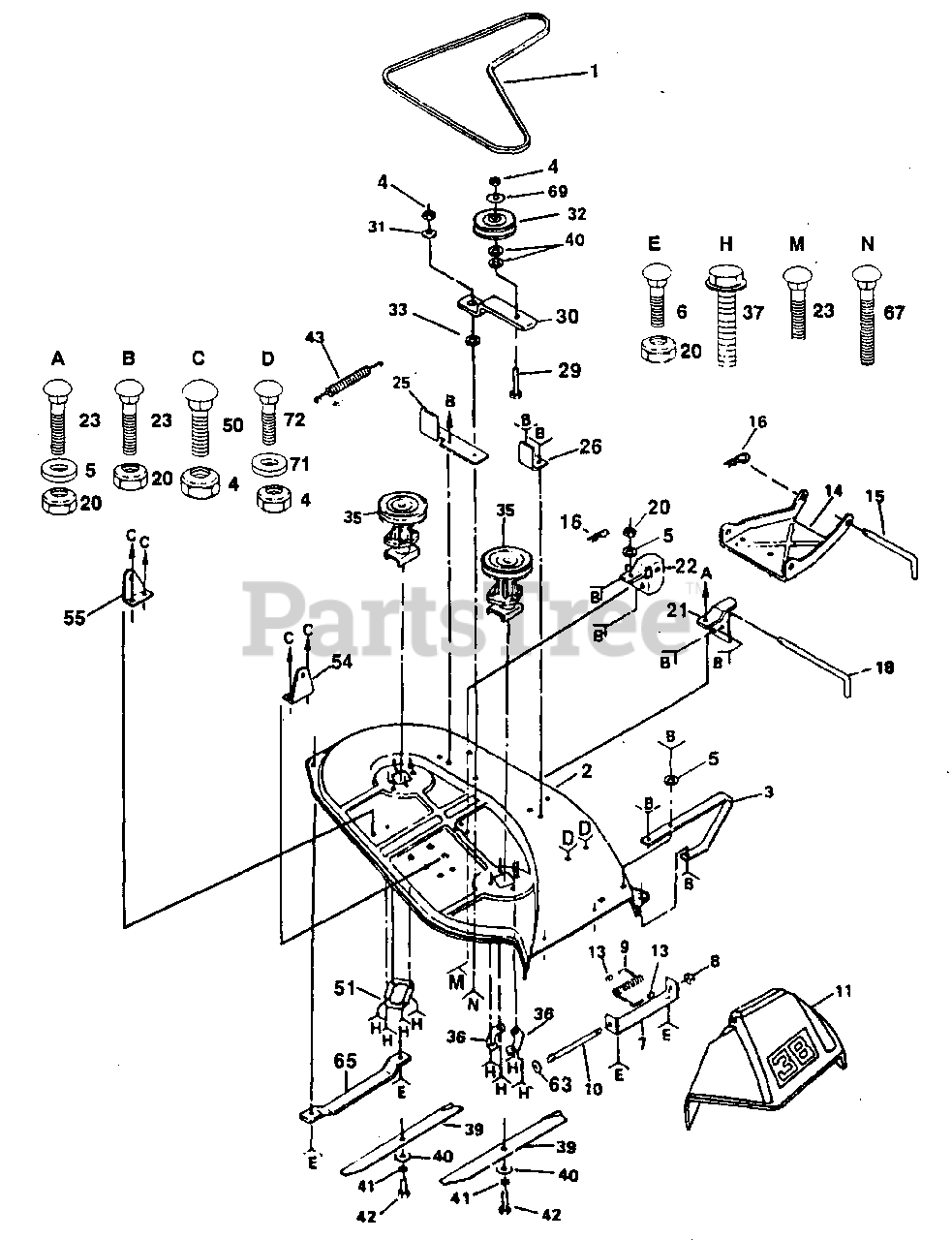

MOWER 38" Parts Diagram

  • Title

1

Poulan 532106085

V-Belt (AYP part number)

$43.99

$

Usually ships in 3-10 days

0

2

Poulan 532121458

Housing (AYP part number)
(Superseded to 532144726)

$

$

Not available

3

Poulan 532008417

Runner, R. H. (AYP part number)
(Superseded to 532128772)

$

$

Not available

4

Poulan 873680600

Locknut 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

5

Poulan 819111216

Washer 11/32 x 3/4 x 16 Ga. (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

6

Poulan 872140505

Bolt, Carriage 5/16-18 x 5/8 (AYP part number)
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

7

Poulan 532105896

Bracket, Deflector (AYP part number)
(Superseded to 532137607)

$6.49

$

In Stock, only 2 left!

0

8

Poulan 532110452

Pushnut (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

9

Poulan 532106734

Spring, Deflector (AYP part number)
(Superseded to 532123713)

$7.99

$

In Stock, only 1 left!

0

10

Poulan 532106735

Rod, Hinge (AYP part number)

$10.99

$

In Stock, only 1 left!

0

11

Poulan 532106736

Shield, Deflector (AYP part number)

$

$

Not available

13

Poulan 532105304

Cap (AYP part number)

$4.99

$

In Stock, Qty 20+

0

14

Poulan 532129762

Link, Parallel (AYP part number)

$

$

Not available

15

Poulan 532105744

Pin, Hinge, Front (AYP part number)

$

$

Not available

16

Poulan 532004921

Sprint, Retainer (AYP part number)

$6.49

$

In Stock, only 2 left!

0

18

Poulan 532109835

Pin, Hinge, Rear (AYP part number)

$

$

Not available

20

Poulan 873680500

Locknut 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

21

Poulan 532109598

Bracket, Lift, R. H. (AYP part number)

$

$

Not available

22

Poulan 532109597

Bracket, Lift, L. H. (AYP part number)

$

$

Not available

23

Poulan 872140506

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

25

Poulan 532109503

Support, Arm (AYP part number)

$

$

Not available

26

Poulan 532109504

Stop, Deck, Front (AYP part number)

$

$

Not available

29

Poulan 874760636

Bolt 3/8-16 x 2 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

30

Poulan 532127162

Arm, Idler (AYP part number)

$

$

Not available

31

Poulan 532106902

Spacer (AYP part number)

$2.99

$

In Stock, only 2 left!

0

32

Poulan 532123688

Pulley, Idler (AYP part number)
(Superseded to 532123674)

$31.99

$

In Stock, only 1 left!

0

33

Poulan 532106513

Washer, Wear 1/16 (AYP part number)

$6.99

$

In Stock, only 4 left!

0

35

Poulan 532121676

Mandrel Assembly (AYP part number)
(Superseded to 532121687)

$

$

Not available

36

Poulan 532100668

Plate, Support, Mandrel (AYP part number)

$

$

Not available

37

Poulan 817490620

Screw, Hex Washer Head 3/8-16 x 1-1/4 (AYP part number)
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

39

Poulan 532121263

Blade
(Superseded to 532143978)

$28.99

$

Usually ships in 3-10 days

0

40

Poulan 819131210

Washer 13/32 x 1-3/4 x 10 Ga. (AYP part number)
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

41

Poulan 810030600

Washer, Lock 3/8 (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

42

Poulan 874610624

Bolt, Hex 3/8-24 x 1-1/2 Gr. 5 (AYP part number)

$6.49

$

In Stock, only 1 left!

0

43

Poulan 532102727

Spring, Extension (AYP part number)

$

$

Not available

50

Poulan 872140606

Bolt, Carriage 3/8-16 x 3/4 (AYP part number)

$

$

Not available

51

Poulan 532110445

Plate, Support (AYP part number)

$10.99

$

Usually ships in 3-10 days

0

54

Poulan 532105857

Bracket, Suspension, Rear, R. H. (AYP part number)

$

$

Not available

55

Poulan 532108673

Bracket, Suspension, Rear, L. H. (AYP part number)

$

$

Not available

63

Poulan 819111016

Washer 11/32 x 5/8 x 16 Ga. (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

65

Poulan 532125074

Runner, L. H. (AYP part number)
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

67

Poulan 872140610

Bolt, Carriage 3/8-16 x 1-1/4 (AYP part number)
(Superseded to 583611601)

$4.99

$

Usually ships in 3-10 days

0

69

Poulan 819131316

Washer 13/32 x 13/16 x 16 Ga. (AYP part number)

$4.99

$

In Stock, Qty 5

0

71

Poulan 819141610

Washer 7/16 x 1 x 10 Ga. (AYP part number)

$

$

Not available

72

Poulan 872110606

Bolt, Carriage 3/8-16 x 3/4 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

Poulan 532123928

Mower Deck, Complete (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532108682

Decal, V-Belt Mower Drive (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532109820

Decal, Instruction, Caution (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532121349

Decal, Warning (AYP part number)

Note: Not Shown.

$2.99

$

Usually ships in 3-10 days

0
