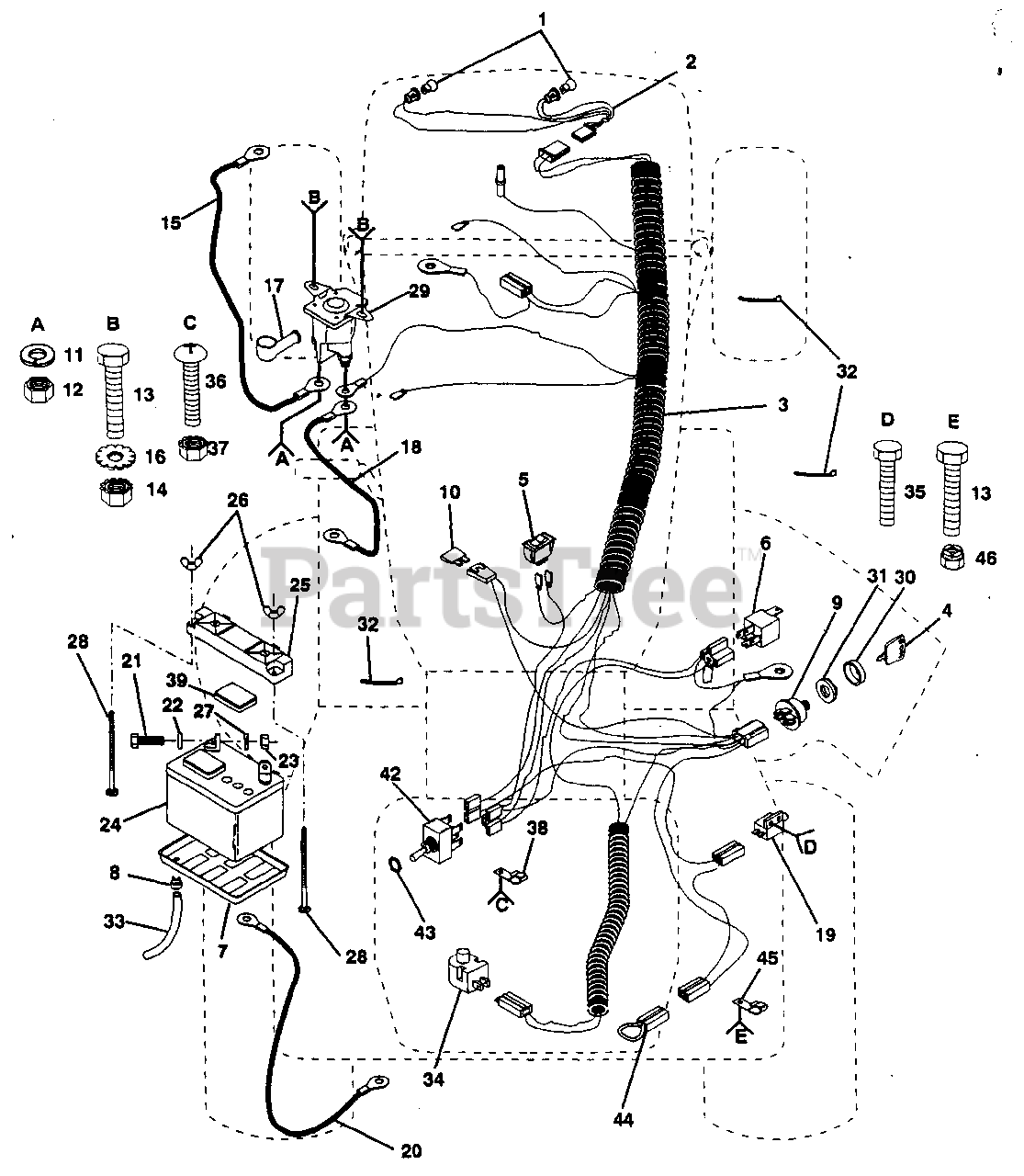

PP 1238 A - Poulan Pro Lawn Tractor ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title

1

Poulan 532124893

Bulb, Light (AYP part number)
(Superseded to 532007662)

$4.99

$

Usually ships in 3-10 days

0

2

Poulan 532110859

Harness, Light Socket (AYP part number)

$

$

Not available

3

Poulan 532128421

Harness, Ignition (AYP part number)

$

$

Not available

4

Poulan 532122147

Key, Molded (AYP part number)

$

$

Not available

5

Poulan 532110712

Switch, Light (AYP part number)

$9.49

$

In Stock, only 4 left!

0

6

Poulan 532109748

Relay (AYP part number)

$30.99

$

In Stock, only 1 left!

0

7

Poulan 532124886

Tray, Battery (AYP part number)
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

8

Poulan 532109596

Clamp, Hose (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 532125104

Switch, Ignition (AYP part number)
(Superseded to 532365402)

$31.99

$

In Stock, only 4 left!

0

10

Poulan 532108824

Fuse (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 810090400

Washer, Lock 1/4 (AYP part number)
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

12

Poulan 873350400

Nut, Hex Jam 1/4 20 (AYP part number)
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

13

Poulan 874780408

Bolt, Hex 1/4-20 x 1/2 Grade 5 (AYP part number)
(Superseded to 74780408)

$1.49

$

Usually ships in 3-10 days

0

14

Poulan 873510400

Nut, Keps 1/4-20 (AYP part number)
(Superseded to 873640400)

$

$

Not available

15

Poulan 532108423

Cable Assembly (AYP part number)

$8.99

$

Usually ships in 3-10 days

0

16

Poulan 811050400

Washer, Lock, Ext. Tooth 1/4 (AYP part number)
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

17

Poulan 532124783

Cover, Terminal (AYP part number)
(Superseded to 532131563)

$8.99

$

In Stock, only 2 left!

0

18

Poulan 532005114

Cable, Battery (AYP part number)
(Superseded to 5114J)

$

$

Not available

19

Poulan 532104445

Switch, Interlock (AYP part number)

$17.99

$

In Stock, only 1 left!

0

20

Poulan 532124773

Cable, Battery (AYP part number)
(Superseded to 532420700)

$8.99

$

Usually ships in 3-10 days

0

21

Poulan 874760412

Bolt, Hex 1/4-20 x 3/4 (AYP part number)

$7.49

$

In Stock, only 1 left!

0

22

Poulan 819091016

Washer 9/32-5/8 x 16 Gauge (AYP part number)
(Superseded to 596582301)

$3.99

$

In Stock, Qty 7

0

23

Poulan 873220400

Nut, Hex 1/4-20 (AYP part number)
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

24

Poulan 532121537

Battery (AYP part number)
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

25

Poulan 532102476

Guard, Terminal (AYP part number)
(Superseded to 532150109)

$

$

Not available

26

Poulan 532123198

Nut, Wing 1/4-20 (AYP part number)
(Superseded to 532146525)

$

$

Not available

27

Poulan 810040400

Washer, Lock, Heavy Helical Spring (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

28

Poulan 872240460

Bolt, Carriage 1/4-20 x 7-1/2 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

29

Poulan 532109081

Solenoid (AYP part number)
(Superseded to 532109946)

$24.99

$

In Stock, only 2 left!

0

30

Poulan 532109787

Bezel, Ignition (AYP part number)
(Superseded to 532147626)

$7.49

$

Usually ships in 3-10 days

0

31

Poulan 532109788

Nut, Ignition (AYP part number)
(Superseded to 532124211)

$5.99

$

In Stock, only 1 left!

0

32

Poulan 532124756

Cable Tie (AYP part number)
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

33

Poulan 532105687

Tube, Battery Tray (AYP part number)
(Superseded to 532109238)

$

$

Not available

34

Poulan 532121305

Switch, Seat (AYP part number)
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

35

Poulan 817021008

Screw, Hex Tapping #10-24 UNC x 1/2 (AYP part number)

$4.99

$

In Stock, Qty 14

0

36

Poulan 874641008

Screw, Slotted Pan Head #10-32 x 1/2 (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

37

Poulan 873951000

Nut, Keps #10-32 x 1/2 (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

38

Poulan 532004171

Clip, Insulated (AYP part number)
(Superseded to 532124967)

$

$

Not available

39

Poulan 532121264

Caps, Battery (AYP part number)

$

$

Not available

42

Poulan 532126016

Switch P.T.O. (AYP part number)
(Superseded to 532004021)

$

$

Not available

43

Poulan 532124932

Nut, Hex (AYP part number)
(Superseded to 532004022)

$

$

Not available

44

Poulan 532102501

Loop, Wire (AYP part number)

$

$

Not available

45

Poulan 532124995

Clip, Insulated (AYP part number)

$

$

Not available

46

Poulan 873680400

Nut, Crownlock 1/4-20 (AYP part number)
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

Poulan 532101539

Sheet, Instruction, Tractor, 15 Degrees Slope (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532127964

Manual, Operator's

Note: Not Shown.

$

$

Not available
