PP 1238 A - Poulan Lawn Tractor (1991) STEERING AND FRONT AXLE Parts Diagram

Lawn Tractor

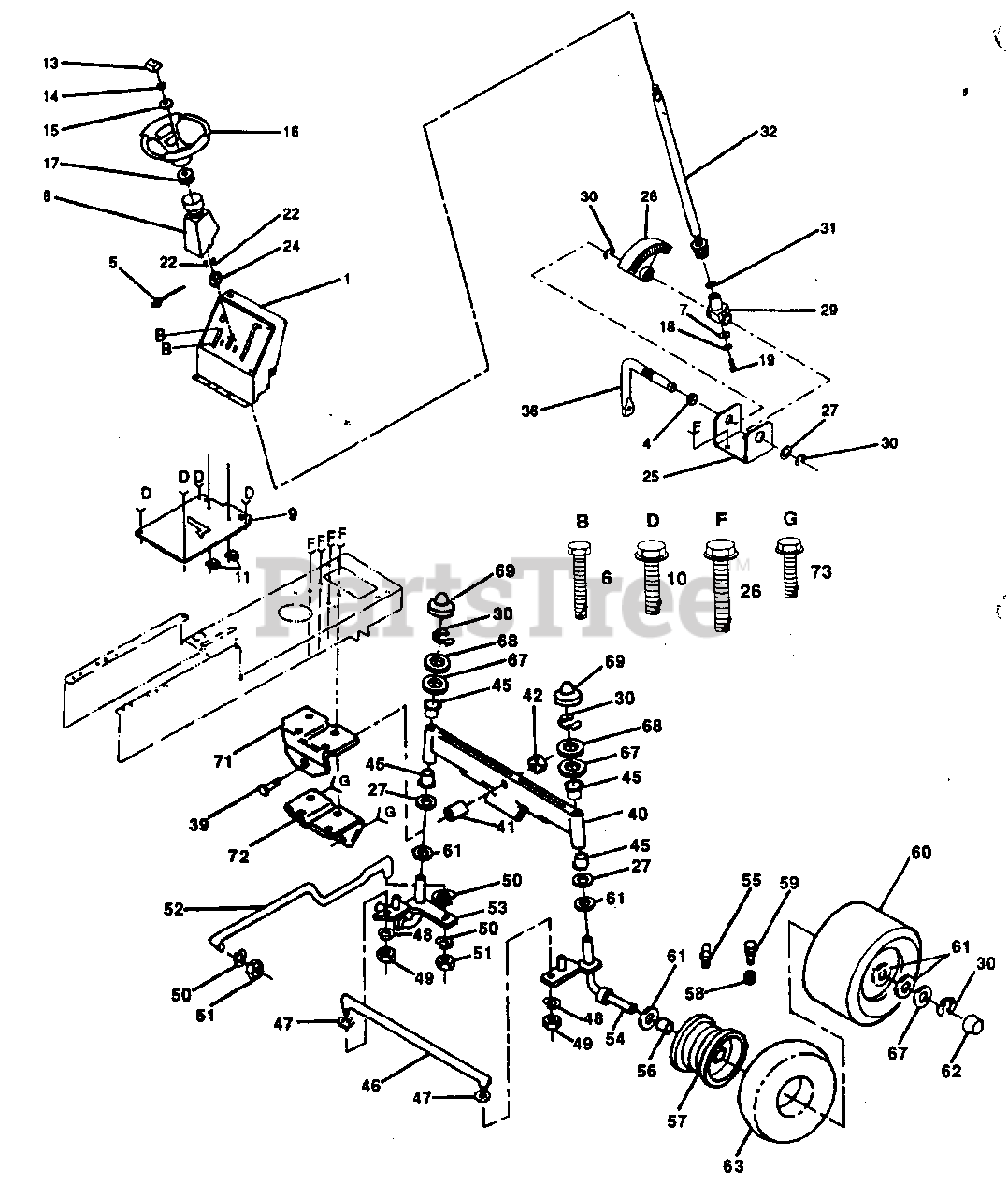

STEERING AND FRONT AXLE Parts Diagram

  • Title

1

Electrolux/AYP 532125089

Dash

$

$

Not available

4

Electrolux/AYP 532109816

Nyliner, Snap-in

$6.49

$

In Stock, only 2 left!

0

5

Electrolux/AYP 532121733

Control, Throttle

$

$

Not available

6

Electrolux/AYP 817720410

Screw, Hex, Thread Cutting 1/4 - 20 x 5/8 TY23
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

7

Electrolux/AYP 532126684

Washer 5/8 x 1/4 x 16 Ga.
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 532124417

Tube, Steering Shaft

$

$

Not available

9

Electrolux/AYP 532124814

Saddle

$

$

Not available

10

Electrolux/AYP 817490608

Screw, Hex, Washer Head Thread Rolling 3/8-16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532002751

Clip, Insulated
(Superseded to 2751R)

$

$

Not available

13

Electrolux/AYP 532126805

Insert, Steering Wheel
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 873940800

Locknut, Hex, Jam 1/2 - 20

$7.49

$

In Stock, only 4 left!

0

15

Electrolux/AYP 532100712

Washer

$

$

Not available

16

Electrolux/AYP 532121472

Wheel, Steering
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532100711

Adapter, Steering Wheel
(Superseded to 532186737)

$9.49

$

In Stock, Qty 6

0

18

Electrolux/AYP 810040400

Lockwasher 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

19

Electrolux/AYP 871070410

Screw, Socket Hex 1/4 x 20 x 5/8
(Superseded to 532165857)

$6.49

$

In Stock, only 3 left!

0

22

Electrolux/AYP 817431008

Screw, Hex Tapping #10-16 x 1/2 Type ABTPS
(Superseded to 98000165)

$2.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 532124373

Bushing, Steering

$

$

Not available

25

Electrolux/AYP 532124036

Bracket, Steering

$

$

Not available

26

Electrolux/AYP 817490612

Screw, Hex Washer Head, Thread Rolling 3/8-16 x 3/4 Type TT
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

27

Electrolux/AYP 532124931

Bearing, Thrust
(Superseded to 532006266)

$7.49

$

In Stock, Qty 8

0

28

Electrolux/AYP 532124034

Gear, Sector
(Superseded to 532136874)

$80.99

$

In Stock, only 1 left!

0

29

Electrolux/AYP 532124035

Shaft, Support
(Superseded to 532160395)

$10.99

$

In Stock, Qty 7

0

30

Electrolux/AYP 812000029

Ring, Klip

$4.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 532057079

Washer

$6.49

$

In Stock, Qty 10

0

32

Electrolux/AYP 532128752

Shaft, Steering

$

$

Not available

36

Electrolux/AYP 532124033

Shaft, Pitman
(Superseded to 532127501)

$

$

Not available

39

Electrolux/AYP 874761060

Bolt, Hex 5/8-11 x 3-3/4

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 532105669

Axle, Front

$

$

Not available

41

Electrolux/AYP 532110438

Spacer, Bearing, Front Axle
(Superseded to 532155134)

$

$

Not available

42

Electrolux/AYP 873601000

Locknut, Flange 5/8-16
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 532124937

Bearing
(Superseded to 532003366)

$4.99

$

In Stock, Qty 19

0

46

Electrolux/AYP 532121334

Rod, Tie
(Superseded to 532130467)

$93.99

$

In Stock, only 4 left!

0

47

Electrolux/AYP 819111216

Washer 11/32 x 3/4 x 16 Ga.
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 810040500

Washer, Lock

$4.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 873810500

Nut, Hex 5/16-18
(Superseded to 873610500)

$

$

Not available

50

Electrolux/AYP 810040600

Washer, Lock 3/8
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 873610600

Nut, Hex 3/8 - 24
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 532124032

Link, Drag
(Superseded to 532130468)

$93.99

$

In Stock, only 1 left!

0

53

Electrolux/AYP 532105656

Spindle, L. H.
(Superseded to 532156483)

$26.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 532105654

Spindle, R. H.
(Superseded to 532130524)

$

$

Not available

55

Electrolux/AYP 532000278

Fitting, Grease

$6.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 532009040

Bearing, Flange

$7.99

$

In Stock, Qty 20+

0

57

Electrolux/AYP 532125021

Rim, Front (Inc. 2 Each Key No. 56)
(Superseded to 532106732)

$91.99

$

In Stock, only 4 left!

0

58

Electrolux/AYP 532059192

Cap, Valve

$7.49

$

In Stock, Qty 9

0

59

Electrolux/AYP 532065139

Stem, Valve

$9.99

$

In Stock, only 1 left!

0

60

Electrolux/AYP 532124157

Tire

$

$

Not available

61

Electrolux/AYP 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 532104757

Cap, Hub

$4.99

$

In Stock, Qty 20+

0

63

Electrolux/AYP 532059904

Tube, Front

$37.99

$

In Stock, Qty 7

0

67

Electrolux/AYP 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$4.99

$

In Stock, Qty 20+

0

68

Electrolux/AYP 819272016

Washer 27/32 x 1-1/4 x 16 Ga.

$6.49

$

In Stock, only 2 left!

0

69

Electrolux/AYP 532121232

Cap, Spindle

$4.99

$

In Stock, Qty 8

0

71

Electrolux/AYP 532105663

Support, Saddle, Rear

$

$

Not available

72

Electrolux/AYP 532105664

Support, Saddle, Front

$9.49

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 817490508

Screw, Hex Washer Thdrol. 5/16-18 x 1/2

$6.49

$

Usually ships in 3-10 days

0

Electrolux/AYP 532127646

Decal, Insert, Steering Wheel

Note: Not Shown.

$

$

Not available

Electrolux/AYP 532109821

Decal, Instruction, Operating

Note: Not Shown.

$

$

Not available
