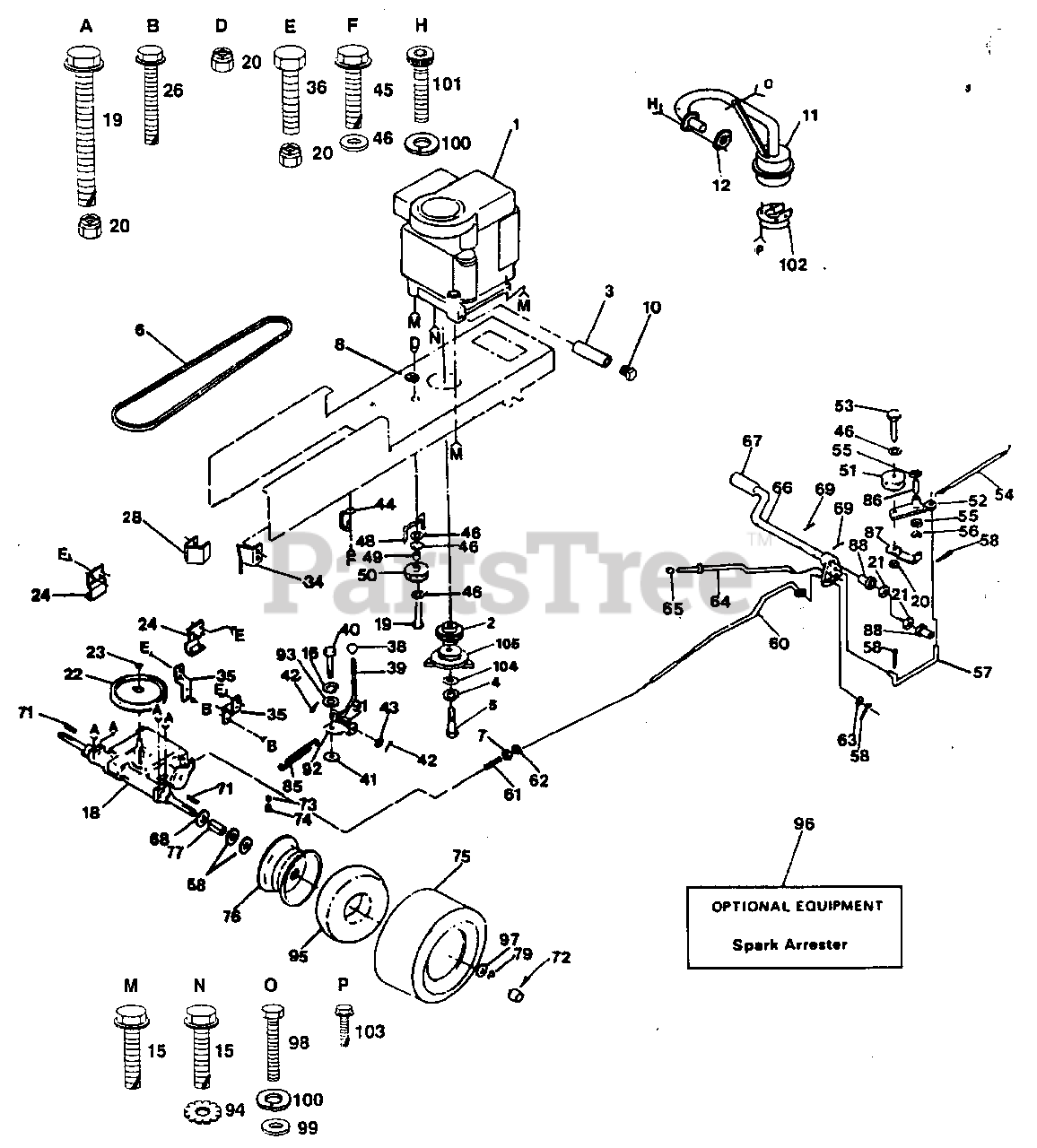

PP 1238 A - Poulan Lawn Tractor (1991) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title

1

Electrolux/AYP 532124149

Engine 12 HP, Briggs & Stratton Model No. 281707, Type No. 0413-01

$

$

Not available

2

Electrolux/AYP 532109841

Pulley, Engine
(Superseded to 532136905)

$42.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 532127222

Pipe, Drain, Oil

$

$

Not available

4

Electrolux/AYP 810040700

Washer, Lock 7/16
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

5

Electrolux/AYP 871130720

Bolt, Hex 7/16-20 x 1-1/4

$

$

Not available

6

Electrolux/AYP 532125907

V-Belt, Drive

$39.99

$

In Stock, Qty 9

0

7

Electrolux/AYP 873800600

Locknut, Hex 3/8-16 UNC ZN
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 532124996

Clip, Fuel Line
(Superseded to 532002751)

$

$

Not available

11

Electrolux/AYP 532125610

Muffler

$

$

Not available

12

Electrolux/AYP 532125593

Gasket
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 817490620

Screw, Hex Washer Thread Rolling 3/8-16 x 1-1/4
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

18

Electrolux/AYP 532120898

Transaxle Foote, 6 Speed, Model No. 4360-7

$

$

Not available

19

Electrolux/AYP 874760644

Bolt, Hex 3/8-16 x 2-3/4

$6.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 873680600

Nut, Crownlock 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

21

Electrolux/AYP 819211616

Washer 21/32 x 1 x 16 Ga

$6.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 532123666

Pulley, Transaxle

$45.99

$

In Stock, only 1 left!

0

23

Electrolux/AYP 812000028

Ring, Retainer
(Superseded to 532002267)

$7.49

$

In Stock, Qty 8

0

24

Electrolux/AYP 532109167

Bracket, Transaxle

$

$

Not available

26

Electrolux/AYP 817490512

Screw, Hex Washer Thread Rolling 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

28

Electrolux/AYP 532127275

Keeper, Belt, L.H.

$

$

Not available

34

Electrolux/AYP 532127274

Keeper, Belt, R.H.

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 532121520

Strap, Torque, Transaxle

$7.99

$

In Stock, only 3 left!

0

36

Electrolux/AYP 874760612

Bolt, Hex 3/8-16 x 3/4

$4.99

$

In Stock, only 3 left!

0

38

Electrolux/AYP 532106933

Knob, Shift

$7.99

$

In Stock, only 1 left!

0

39

Electrolux/AYP 532124461

Rod, Shift

$

$

Not available

40

Electrolux/AYP 871040412

Bolt, Shift Plate

$6.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 532105701

Washer, Shift Plate

$6.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 876020416

Pin, Cotter 1/8 x 1

$3.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 819151216

Washer 15/32 x 3/4 x 16 Ga.
(Superseded to 19151216)

$

$

Not available

44

Electrolux/AYP 532104777

Belt, Retainer
(Superseded to 532136715)

$

$

Not available

45

Electrolux/AYP 817490612

Screw, Hex., Washer Thread Rolling 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

46

Electrolux/AYP 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

48

Electrolux/AYP 532109070

Retainer, Belt

$6.49

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 532004470

Spacer
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 532123674

Idler, Flat

$31.99

$

In Stock, only 1 left!

0

51

Electrolux/AYP 532123766

Pulley, Idler
(Superseded to 532127783)

$37.99

$

In Stock, only 1 left!

0

52

Electrolux/AYP 532123789

Arm,Idler

$

$

Not available

53

Electrolux/AYP 874760624

Bolt, Hex. 3/8-16 x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 532105709

Spring, Return Clutch

$11.99

$

In Stock, only 2 left!

0

55

Electrolux/AYP 532110812

Washer, Hardened
(Superseded to 110812X)

$

$

Not available

56

Electrolux/AYP 812000039

Ring, Klip

$6.49

$

In Stock, Qty 7

0

57

Electrolux/AYP 532105710

Link, Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

60

Electrolux/AYP 532110437

Rod, Brake
(Superseded to 532131867)

$

$

Not available

61

Electrolux/AYP 532106888

Spring, Rod, Brake
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

62

Electrolux/AYP 873350600

Nut, Jam 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

63

Electrolux/AYP 819131316

Washer 13/32 x 13/16 x 16 Ga.

$4.99

$

In Stock, Qty 5

0

64

Electrolux/AYP 532125638

Rod, Brake, Parking

$

$

Not available

65

Electrolux/AYP 532071673

Cap, Plunger

$5.99

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 532122424

Shaft, Foot Pedal

$

$

Not available

67

Electrolux/AYP 532124872

Cover, Pedal
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 532121749

Washer 25/32 x 1-1/4 x 16

$3.49

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 532001572

Pin, Roll 3/16 x 1
(Superseded to 532002882)

$4.99

$

In Stock, Qty 7

0

71

Electrolux/AYP 532123583

Key, Square 2.5 x .1845/.1865

$4.99

$

In Stock, Qty 7

0

72

Electrolux/AYP 532104757

Cap, Hub

$4.99

$

In Stock, Qty 20+

0

73

Electrolux/AYP 532059192

Cap, Valve

$7.49

$

In Stock, Qty 9

0

74

Electrolux/AYP 532065139

Stem, Valve

$9.99

$

In Stock, only 3 left!

0

75

Electrolux/AYP 532123969

Tire, Rear

$

$

Not available

76

Electrolux/AYP 532124789

Rim Assembly, Rear
(Superseded to 532125122)

$145.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 532109502

Spacer

$

$

Not available

79

Electrolux/AYP 812000001

E-Ring

$4.99

$

Usually ships in 3-10 days

0

85

Electrolux/AYP 532110422

Spring, Brake
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

86

Electrolux/AYP 532105706

Bearing

$7.49

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 532123205

Retainer, Belt

$6.49

$

Usually ships in 3-10 days

0

88

Electrolux/AYP 532120183

Bearing, Nylon

$6.99

$

In Stock, only 4 left!

0

91

Electrolux/AYP 532105700

Spring

$

$

Not available

92

Electrolux/AYP 532106919

Plate, Shift

$

$

Not available

93

Electrolux/AYP 819091210

Washer 9/32 x 3/4 x 10 Ga.
(Superseded to 734115441)

$4.99

$

In Stock, only 2 left!

0

94

Electrolux/AYP 811050600

Washer, Lock, External Tooth 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

95

Electrolux/AYP 532124926

Tube, Tire
(Superseded to 532007152)

$74.99

$

Usually ships in 3-10 days

0

96

Electrolux/AYP 532123110

Spark Arrester

$

$

Not available

97

Electrolux/AYP 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$4.99

$

In Stock, Qty 20+

0

98

Electrolux/AYP 874760416

Bolt, Hex Fin 1/4 x 20 UNC x 1
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

99

Electrolux/AYP 819091016

Washer 9/32 x 5/8 x 16 Ga.
(Superseded to 596582301)

$3.99

$

In Stock, Qty 5

0

100

Electrolux/AYP 810040500

Washer, Lock, Heavy Helical Spring

$4.99

$

Usually ships in 3-10 days

0

101

Electrolux/AYP 871070510

Screw, Hex Head Cap 5/16-18 x 5/8

$

$

Not available

102

Electrolux/AYP 532101326

Deflector, Muffler
(Superseded to 101326L)

$

$

Not available

103

Electrolux/AYP 817030808

Screw, Spiderlock, Hex Head #8 x 1/2 AB
(Superseded to 817030814)

$

$

Not available

104

Electrolux/AYP 532126197

Washer 1-1/2 x 15/32 x 1/4

$8.99

$

In Stock, only 3 left!

0

105

Electrolux/AYP 532108218

Clutch, Electric
(Superseded to 532142600)

$

$

Not available

Electrolux/AYP 532121120

Decal, Engine Maintenance

Note: Not Shown.

$

$

Not available

Electrolux/AYP 532120601

Decal, HP, Engine

Note: Not Shown.

$

$

Not available

Electrolux/AYP 532109199

Decal, V-Belt, Ground Drive

Note: Not Shown.

$

$

Not available
