PP 1236 - Poulan Pro Lawn Tractor MOWER DECK (CONTINUED) Parts Diagram

Lawn Tractor

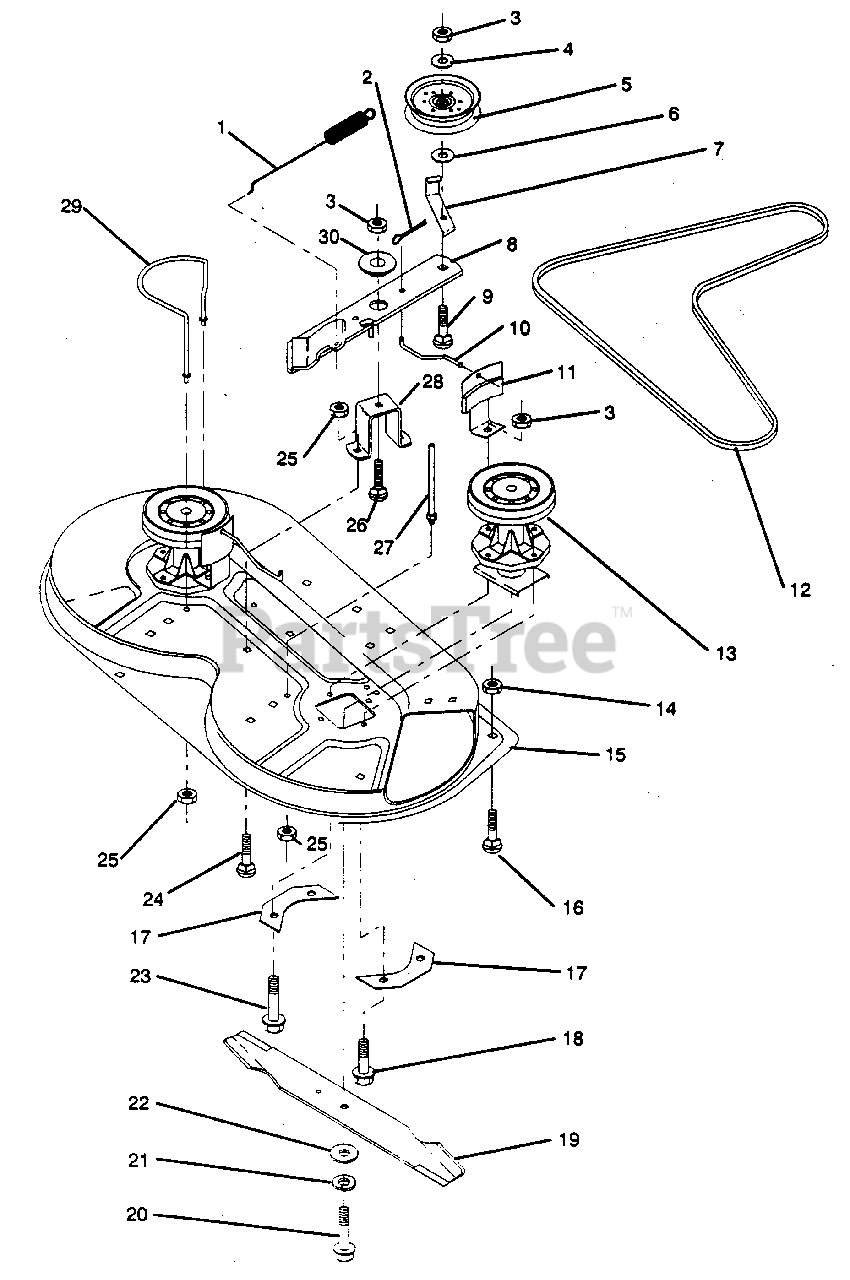

MOWER DECK (CONTINUED) Parts Diagram

  • Title

1

Poulan 532122028

Spring, Mower Clutch (AYP part number)
(Superseded to 532140064)

$24.99

$

In Stock, only 1 left!

0

2

Poulan 876020312

Pin, Cotter 3/32 x 3/4 (AYP part number)
(Superseded to 876020308)

$

$

Not available

3

Poulan 873680600

Nut, Crownlock 3/8-16 UNC
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

4

Poulan 819131412

Washer 13/32 x 7/8 x 12 Ga. (AYP part number)

$

$

Not available

5

Poulan 532121316

Idler, Flat (AYP part number)

$51.99

$

In Stock, only 4 left!

0

6

Poulan 819132203

Washer 13/32 x 1-3/8 x 3 Ga. (AYP part number)

$6.49

$

In Stock, only 3 left!

0

7

Poulan 532126756

Guide, Belt (AYP part number)
(Superseded to 126756X)

$

$

Not available

8

Poulan 532123702

Assembly, Mower Idler Arm (AYP part number)

$

$

Not available

9

Poulan 872110618

Bolt, Carriage 3/8-16 x 2 1/4 (AYP part number)

$6.49

$

In Stock, only 2 left!

0

10

Poulan 532122049

Rod, Brake (AYP part number)

$

$

Not available

11

Poulan 532106578

Assembly, Brake (AYP part number)

$46.99

$

Usually ships in 3-10 days

0

12

Poulan 532124293

V-Belt (AYP part number)

$46.99

$

Usually ships in 3-10 days

0

13

Poulan 532124207

Assembly, Mandrel
(Superseded to 532124208)

$193.99

$

Usually ships in 3-10 days

0

14

Poulan 873680400

Nut, Crownlock 1/4-20 (AYP part number)
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

15

Poulan 532126410

Housing, Mower 36" (AYP part number)
(Superseded to 532144727)

$

$

Not available

16

Poulan 872140404

Bolt, Carriage 1/4-20 x 1/2 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

17

Poulan 532100668

Support, Plate Jackshaft (AYP part number)

$

$

Not available

18

Poulan 817490614

Screw Hex Thdrol. 3/8-16 x 7/8 (AYP part number)

$

$

Not available

19

Poulan 532126338

Blade, Low Lift (AYP part number)
(Superseded to 532143969)

$

$

Not available

20

Poulan 874610624

Bolt, Fin. Hex 3/8-24 UNF x 1-1/2 Gr. 5 (AYP part number)

$6.49

$

In Stock, only 1 left!

0

21

Poulan 810030600

Washer, Lock Hvy.3/8 (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

22

Poulan 819132012

Washer 13/32 x 1-1/4 x 12 Ga. (AYP part number)

$1.99

$

Usually ships in 3-10 days

0

23

Poulan 817490620

Screw Hex Thdrol. 3/8-16 x 1-1/4 (AYP part number)
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

24

Poulan 872140505

Bolt, Carriage 5/16-18 UNC x 5/8 (AYP part number)
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

25

Poulan 873680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

26

Poulan 872110608

Bolt, Carriage 3/8-16 UNC x 1 Gr. 5 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

27

Poulan 532123439

Guide, R.H. Rear Belt (AYP part number)

$

$

Not available

28

Poulan 532122051

Support, Idler Arm (AYP part number)
(Superseded to 122051X)

$2.99

$

Usually ships in 3-10 days

0

29

Poulan 532123673

Guide, L.H. Belt (AYP part number)

$8.99

$

Usually ships in 3-10 days

0

30

Poulan 532122052

Spacer, Retainer (AYP part number)
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0
