PP 1236 A - Poulan Pro Lawn Tractor GROUND DRIVE Parts Diagram

Lawn Tractor

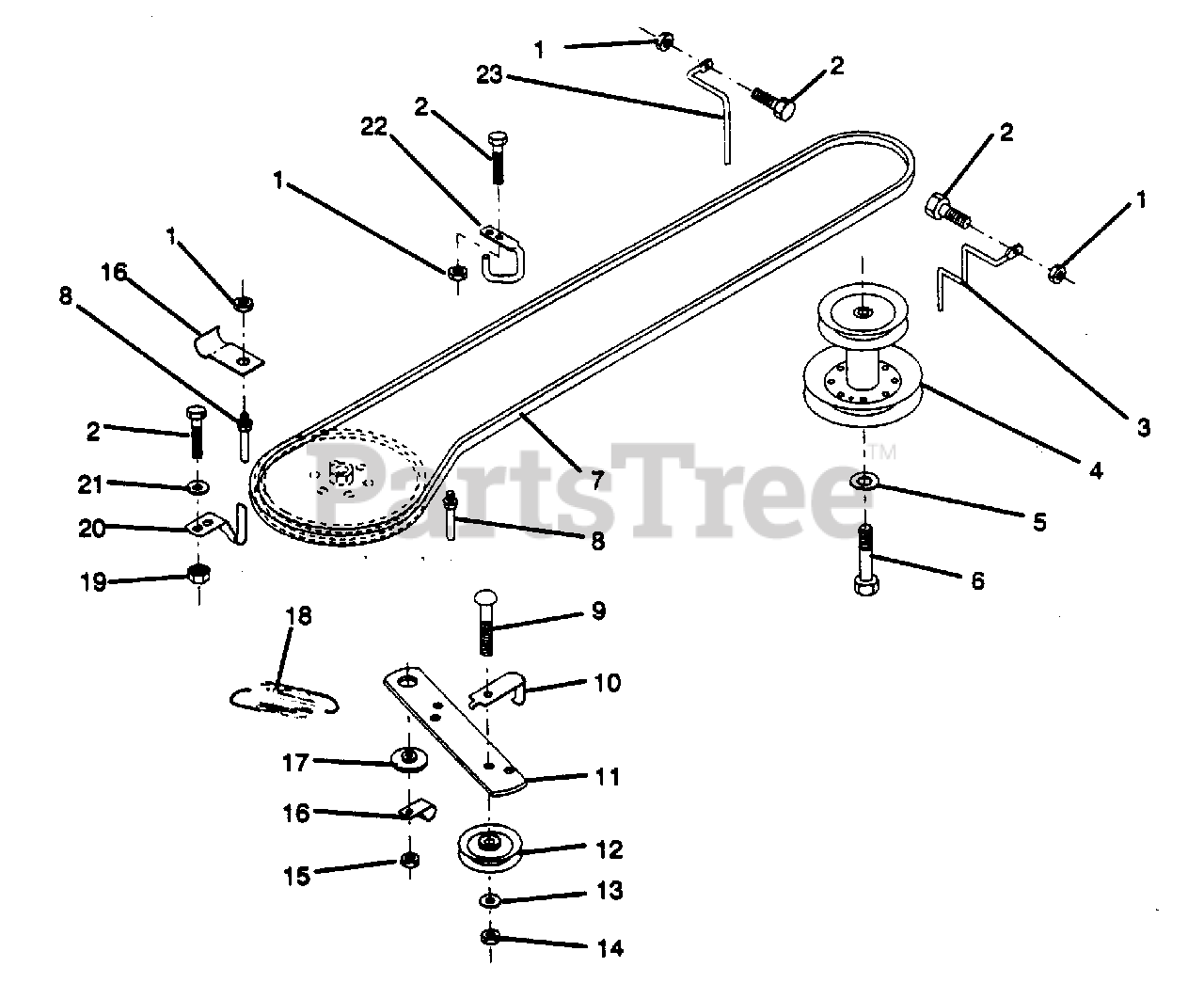

GROUND DRIVE Parts Diagram

  • Title

1

Poulan 873680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

2

Poulan 874760512

Bolt, Hex Hd. 5/16-18 UNC x 3/4 (AYP part number)
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

3

Poulan 532123448

Keeper, Engine Mower Drive R.H. Belt (AYP part number)
(Superseded to 532131205)

$

$

Not available

4

Poulan 532123400

Pulley, Engine (AYP part number)
(Superseded to 532131004)

$

$

Not available

5

Poulan 810040700

Washer, Lock Hvy. Helical Spring 7/16 (AYP part number)
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

6

Poulan 871130720

Bolt, Fin. Hex 7/16-20 UNF x 1-1/4 Gr. 8 (AYP part number)

$

$

Not available

7

Poulan 532124525

Traction, V-Belt Drive (AYP part number)

$48.99

$

Usually ships in 3-10 days

0

8

Poulan 532123405

Keeper, T/A Ground Drive Belt (AYP part number)
(Superseded to 532164173)

$8.99

$

Usually ships in 3-10 days

0

9

Poulan 872140612

Bolt, Carriage 3/8-16 UNC x 1-1/2 (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

10

Poulan 532123396

Keeper, Belt Ground Drive Idler (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

11

Poulan 532123395

Arm, Ground Drive Clutch (AYP part number)
(Superseded to 532140911)

$

$

Not available

12

Poulan 532004859

Idler, Flat (AYP part number)
(Superseded to 532123674)

$31.99

$

In Stock, only 1 left!

0

13

Poulan 819131316

Washer 13/32 x 13/16 x 16 Ga. (AYP part number)

$4.99

$

In Stock, Qty 5

0

14

Poulan 873930600

Nut, Centerlock 3/8-16 UNC (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

15

Poulan 873680600

Nut, Crownlock 3/8-16 UNC
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

16

Poulan 532126471

Clip, Insulated (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 532122052

Spacer, Retainer (AYP part number)
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

18

Poulan 532123397

Spring, Extension (AYP part number)
(Superseded to 532131461)

$13.99

$

Usually ships in 3-10 days

0

19

Poulan 873510500

Nut, Keps 5/16-18 UNC (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

20

Poulan 532123891

Keeper, T/A Ground Drive Belt (AYP part number)

$

$

Not available

21

Poulan 819111016

Washer 11/32 x 5/8 x 16 Ga. (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

22

Poulan 532123404

Keeper, Frame Ground Drive Belt (AYP part number)

$

$

Not available

23

Poulan 532123402

Keeper, Engine Mower Drive L.H. Belt (AYP part number)
(Superseded to 532131204)

$

$

Not available
