PP 1236 A - Poulan Pro Lawn Tractor FENDER/CHASSIS Parts Diagram

Lawn Tractor

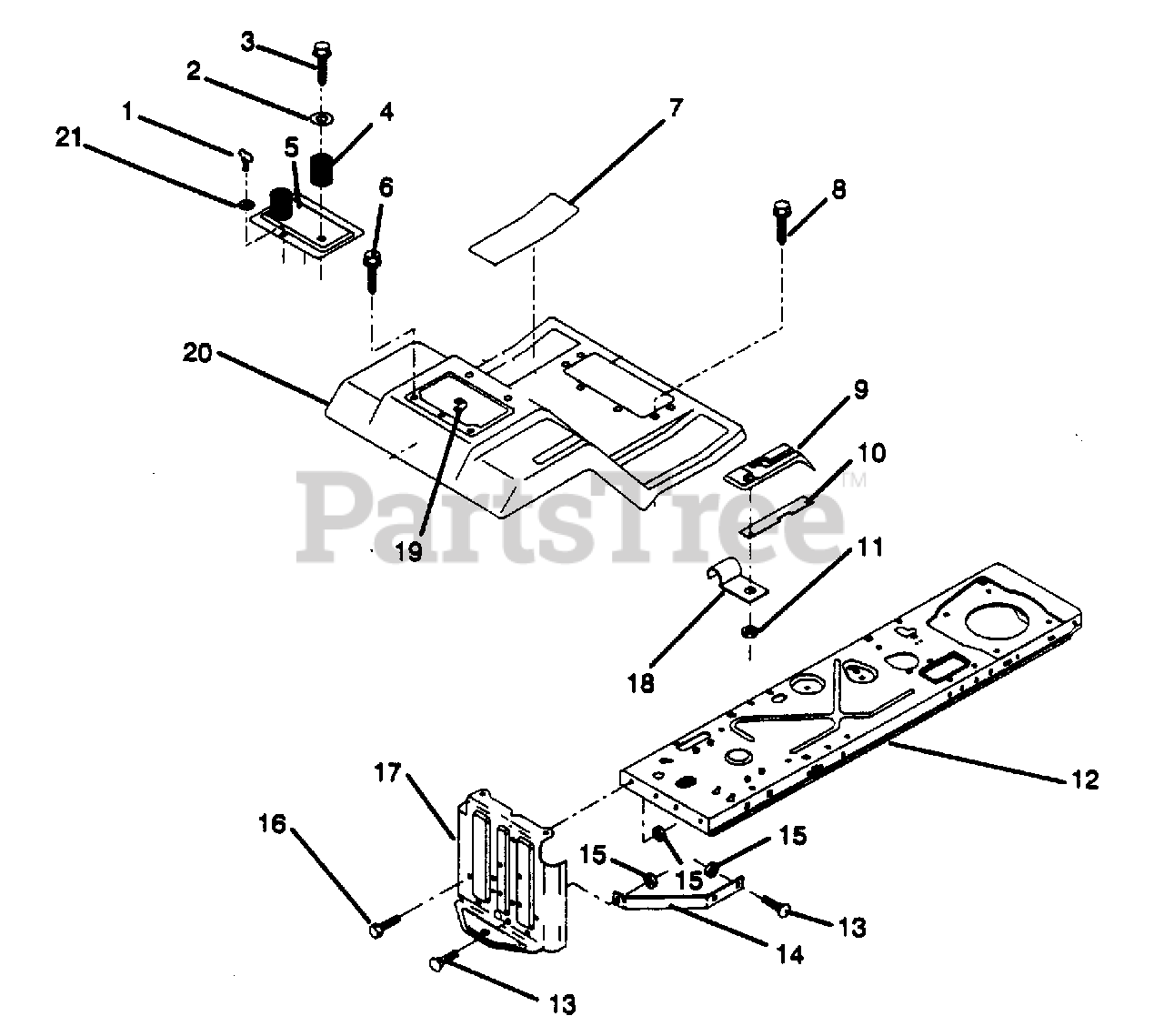

FENDER/CHASSIS Parts Diagram

  • Title

1

Poulan 532123650

Stud 1/4 Turn

$6.49

$

Usually ships in 3-10 days

0

2

Poulan 819132012

Washer 13/32 x 1-1/4 x 12 Ga. (AYP part number)

$1.99

$

Usually ships in 3-10 days

0

3

Poulan 817490612

Screw, Hex Wsh. Throdrol. 3/8-16 x 3/4 (AYP part number)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

4

Poulan 532124181

Spring, Compression, Seat (AYP part number)
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

5

Poulan 532124852

Door, Fender (AYP part number)

$

$

Not available

6

Poulan 817490508

Screw, Hex Wsh. Thrdrol. 5/16-18 x 1/2 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

7

Poulan 532124144

Pad, Footrest (AYP part number)

$

$

Not available

8

Poulan 817490512

Screw, Hex Wsh. Thrdrol. 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

9

Poulan 532126995

Console, Shift Control (AYP part number)

$14.99

$

Usually ships in 3-10 days

0

10

Poulan 532124307

Bar, Shift Lock (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

11

Poulan 532124346

Nut, Self-Thd Wsh-Hd 3/16 (AYP part number)

$7.99

$

In Stock, only 1 left!

0

12

Poulan 532123645

Assembly, Frame (AYP part number)

$

$

Not available

13

Poulan 872140506

Bolt, Carriage 5/16-18 UNC x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

14

Poulan 532123379

Brace, Drawbar (AYP part number)

$

$

Not available

15

Poulan 873680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

16

Poulan 874760512

Bolt, Hex Hd. 5/16-18 UNC x 3/4 (AYP part number)
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

17

Poulan 532121904

Drawbar (AYP part number)
(Superseded to 532127880)

$

$

Not available

18

Poulan 532126470

Clip, Insulated (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 532105839

Receptacle, 1/4 Turn (AYP part number)

$3.99

$

In Stock, only 1 left!

0

20

Poulan 532124881

Fender/Footrest (AYP part number)

$

$

Not available

21

Poulan 532105838

Retainer, 1/4 Turn (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

Poulan 532123408

Decal, Belt Installation (under footrest) (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532123637

Decal, Operating Instructions (between footrest pads) (AYP part number)
(Superseded to 532138269)

Note: Not Shown.

$

$

Not available

Poulan 532120822

Decal, Caution (rear of fender) (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532127638

Decal, Speed/Deck Size, Chassis (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532127633

Decal, Fender, L.H. (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532127634

Decal, Fender, R.H. (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532127622

Decal, Grill and Fender, Rear Fender (AYP part number)

Note: Not Shown.

$

$

Not available
