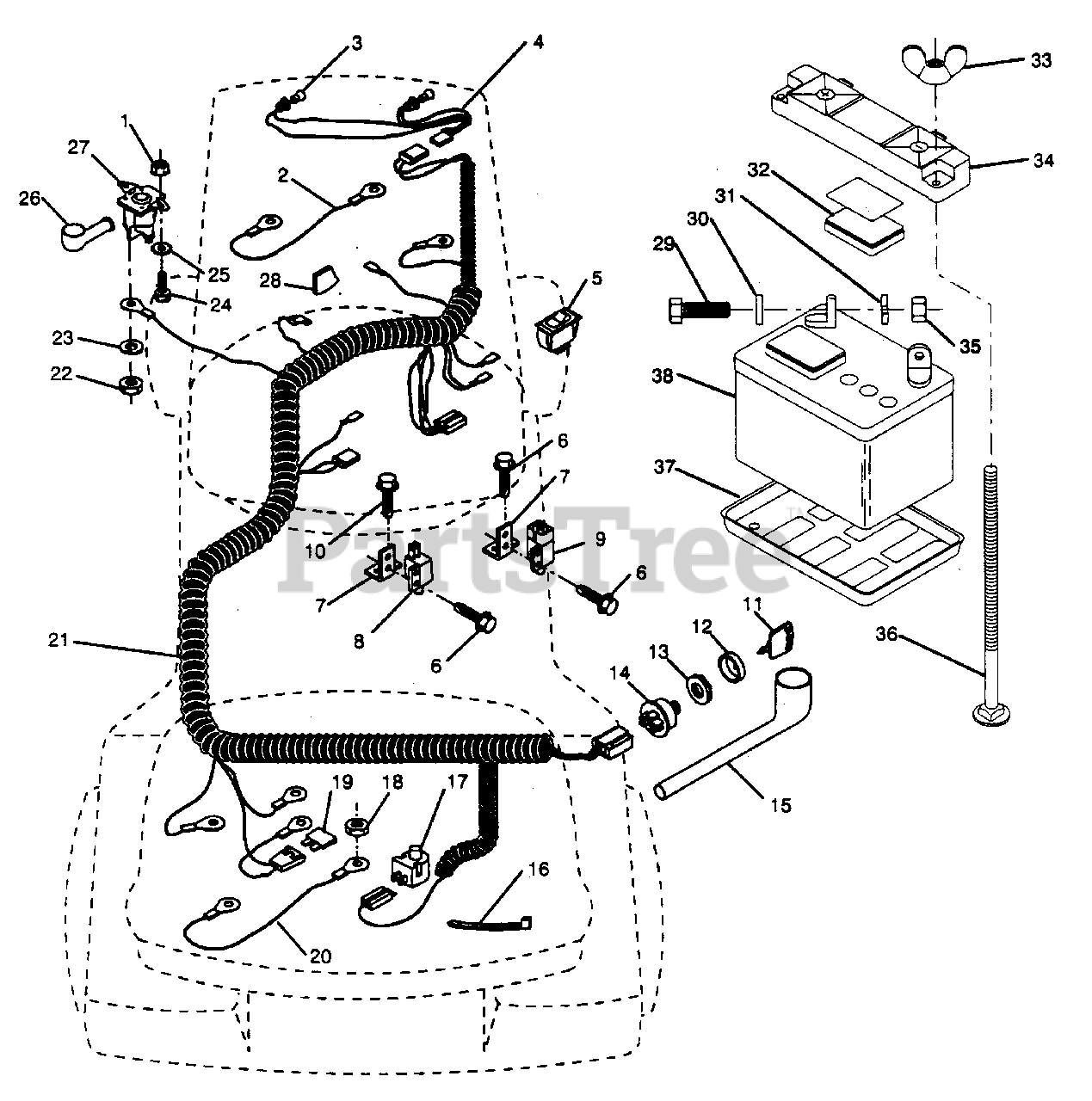

PP 1236 A - Poulan Pro Lawn Tractor ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title

1

Poulan 873510400

Nut, Hex Keps 1/4-20 (AYP part number)
(Superseded to 873640400)

$

$

Not available

2

Poulan 532105002

Assembly, Cable (AYP part number)

$

$

Not available

3

Poulan 532124893

Bulb, Light (AYP part number)
(Superseded to 532007662)

$4.99

$

Usually ships in 3-10 days

0

4

Poulan 532127441

Harness, Light Socket (AYP part number)
(Superseded to 532136850)

$

$

Not available

5

Poulan 532110712

Switch, Light (AYP part number)

$9.49

$

In Stock, only 4 left!

0

6

Poulan 817021008

Screw, Tap Hex #10-24 x 1/2 (AYP part number)

$4.99

$

In Stock, Qty 14

0

7

Poulan 532108236

Bracket, Switch (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

8

Poulan 532104445

Switch, Interlock (Clutch/Brake) (AYP part number)

$17.99

$

In Stock, only 1 left!

0

9

Poulan 532109553

Switch, Interlock (Attachment) (AYP part number)
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

10

Poulan 817211008

Screw, Hex Wsh. Tap #10-16 x 1/2 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

11

Poulan 532122147

Key, Molded (AYP part number)

$

$

Not available

12

Poulan 532123620

Cover, Key Ignition (AYP part number)
(Superseded to 532141226)

$5.99

$

Usually ships in 3-10 days

0

13

Poulan 532124211

Nut, Ignition (AYP part number)

$5.99

$

In Stock, only 1 left!

0

14

Poulan 532125104

Switch, Ignition (AYP part number)
(Superseded to 532365402)

$31.99

$

In Stock, only 4 left!

0

15

Poulan 532124083

Cover, Ignition Switch (AYP part number)

$

$

Not available

16

Poulan 532124756

Tie, Cable (AYP part number)
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

17

Poulan 532121305

Switch, Plunger (AYP part number)
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

18

Poulan 873510500

Nut Keps 5/16-18 (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

19

Poulan 532108824

Fuse (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

20

Poulan 532000596

Assembly, Cable (AYP part number)
(Superseded to 532002955)

$

$

Not available

21

Poulan 532124190

Harness, Ignition (AYP part number)

$

$

Not available

22

Poulan 873350400

Nut, Hex Jam 1/4-20 (AYP part number)
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

23

Poulan 810090400

Washer, Lock 1/4 (AYP part number)
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

24

Poulan 874780408

Bolt, Fin. Hex 1/4-20 UNC x 1/2 Gr.5 (AYP part number)
(Superseded to 74780408)

$1.49

$

Usually ships in 3-10 days

0

25

Poulan 811050400

Washer, Lock Ext. Tooth 1/4 (AYP part number)
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

26

Poulan 532124783

Cover, Terminal (AYP part number)
(Superseded to 532131563)

$8.99

$

In Stock, only 2 left!

0

27

Poulan 532109081

Solenoid (AYP part number)
(Superseded to 532109946)

$24.99

$

In Stock, only 2 left!

0

28

Poulan 532125760

Stop, Choke (AYP part number)

$

$

Not available

29

Poulan 874760412

Bolt, Hex 1/4-20 UNC x 3/4 (AYP part number)

$7.49

$

In Stock, only 1 left!

0

30

Poulan 819091016

Washer 9/32 x 5/8 x 16 Ga. (AYP part number)
(Superseded to 596582301)

$3.99

$

In Stock, Qty 5

0

31

Poulan 810040400

Washer, Lock Hvy. Helical Spring 1/4 (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

32

Poulan 532121264

Cap, Battery (AYP part number)

$

$

Not available

33

Poulan 532123198

Nut, Wing, Plastic, Locking 1/4-20 (AYP part number)
(Superseded to 532146525)

$

$

Not available

34

Poulan 532102476

Guard, Terminal (AYP part number)
(Superseded to 532150109)

$

$

Not available

35

Poulan 873220400

Nut, Fin. Hex 1/4-20 UNC (AYP part number)
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

36

Poulan 872240460

Bolt, Carriage 1/4-20 UNC x 7-1/2 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 532124886

Tray, Battery (AYP part number)
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

38

Poulan 532121265

Battery (AYP part number)
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

Poulan 532101539

Sheet, Instruction 15ø Slope (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532127735

Manual, Operators (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532121549

Decal, Battery (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532127756

Manual, Parts

Note: Not Shown.

$

$

Not available
