PP 1236 A - Poulan Lawn Tractor (1991) SECTOR GEAR/AXLE SUPPORT Parts Diagram

Lawn Tractor

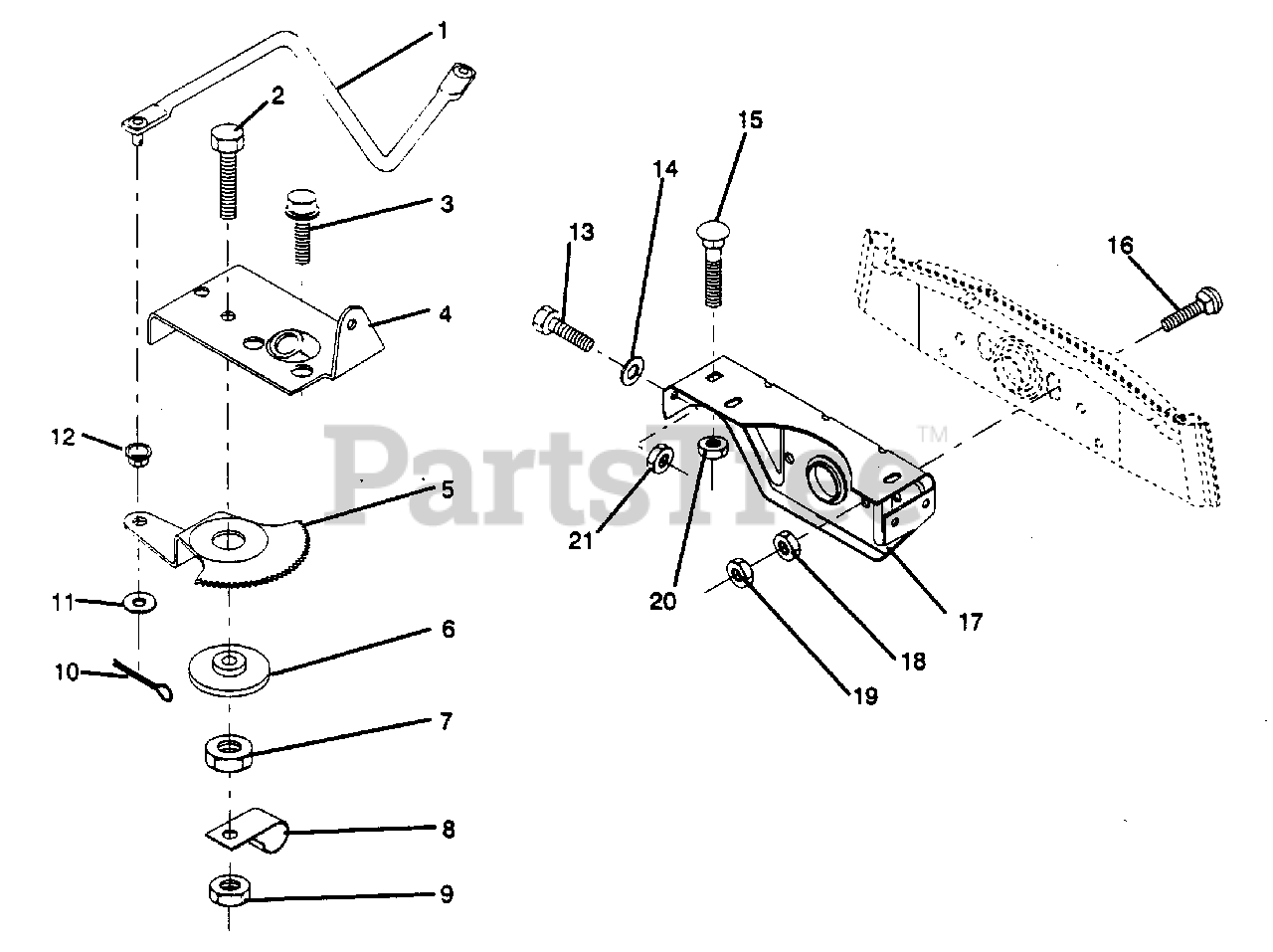

SECTOR GEAR/AXLE SUPPORT Parts Diagram

  • Title

1

Electrolux/AYP 532124093

Link, Drag
(Superseded to 532132566)

$46.99

$

In Stock, only 1 left!

0

2

Electrolux/AYP 874780828

Bolt, Fin. Hex 1/2-13 x 1 3/4

$4.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 817490508

Screw Hex Washer Hd. Thrdrol 5/16-18 x 1/2

$6.49

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 532121925

Plate, Steering Support

$

$

Not available

5

Electrolux/AYP 532121926

Gear, Sector

$

$

Not available

6

Electrolux/AYP 532121927

Bushing

$

$

Not available

7

Electrolux/AYP 873030800

Nut, Heavy Hex Top Lock 1/2-13 UNC
(Superseded to 596433401)

$3.99

$

In Stock, Qty 18

0

8

Electrolux/AYP 532126472

Clip, Insulated

$

$

Not available

9

Electrolux/AYP 873680800

Nut, Crownlock 1/2 x 13 UNC
(Superseded to 596433401)

$3.99

$

In Stock, Qty 18

0

10

Electrolux/AYP 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 819131316

Washer, 13/32 x 13/16 x 16 Ga.

$4.99

$

In Stock, Qty 5

0

12

Electrolux/AYP 532126847

Bushing

$5.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 874760512

Bolt, Hex Hd. 5/16-18 UNC x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 819111416

Washer 11/32 x 7/8 x 16 Ga.
(Superseded to 734116541)

$5.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 872110606

Bolt, Carriage 3/8-16 UNC x 3/4

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 872140622

Bolt, Carriage

$4.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532121912

Support, Front Axle

$

$

Not available

18

Electrolux/AYP 873220600

Nut, Fin. Hex 3/8-16 UNC

$6.49

$

In Stock, only 2 left!

0

19

Electrolux/AYP 873930600

Nut, Centerlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 873680600

Nut, Crownlock 3/8-16 UNC
(Superseded to 596322601)

$3.99

$

In Stock, Qty 8

0

21

Electrolux/AYP 873680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0
