PP 1236 A - Poulan Lawn Tractor (1991) SEAT Parts Diagram

Lawn Tractor

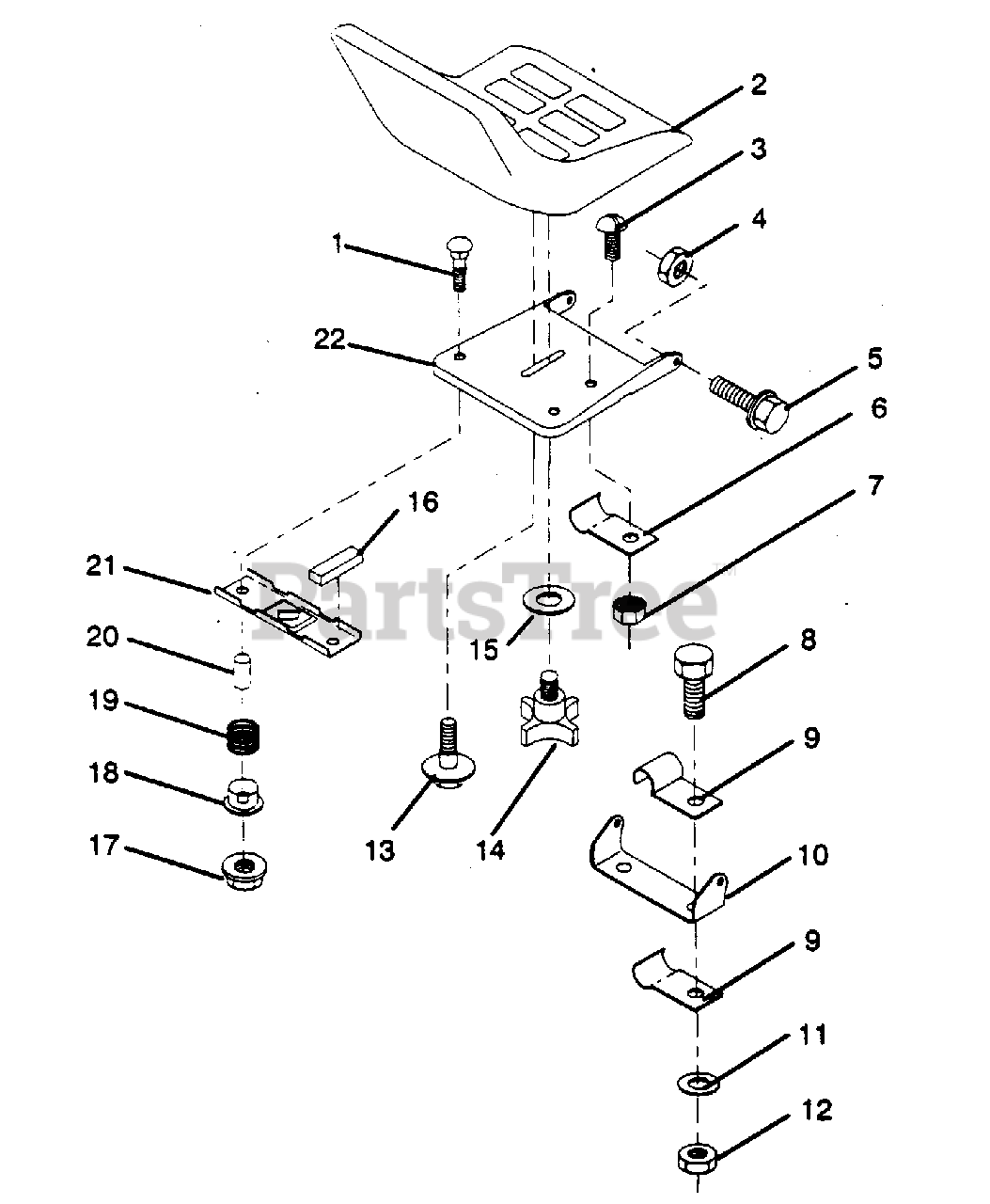

SEAT Parts Diagram

  • Title
1

Electrolux/AYP 872170410

Bolt, Carriage 1/4-20 x 1-1/4

$4.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532127423

Seat
(Superseded to 532127427)

$206.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 874641008

Screw, Slotted Pan Head #10-32 x 1/2

$2.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 873680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

5

Electrolux/AYP 532105529

Bolt, Shoulder 5/16-18 UNC
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

6

Electrolux/AYP 532004171

Clip, Insulated
(Superseded to 532124967)

$

$

Not available

7

Electrolux/AYP 873951000

Nut, Keps #10-32 UNF

$5.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 874760612

Bolt, Fin. Hex 3/8-16 UNC x 3/4

$4.99

$

In Stock, only 3 left!

0

9

Electrolux/AYP 532126471

Clip, Insulated

$4.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532126656

Bracket, Pivot, Seat

$

$

Not available

11

Electrolux/AYP 819131210

Washer 13/32 x 3/4 x 10 Ga.
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 873680600

Nut, Crownlock 3/8-16 UNC
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

13

Electrolux/AYP 532127018

Bolt, Shoulder

$7.49

$

In Stock, only 1 left!

0

14

Electrolux/AYP 532120068

Knob, Seat 1/2"
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 819171912

Washer 17/32 x 1-3/16 x 12 Ga.

$7.49

$

In Stock, only 1 left!

0

16

$

$

Not available

17

Electrolux/AYP 532123976

Nut, Hex, Large, Flange Lock
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

18

Electrolux/AYP 532121248

Bushing, Snap

$6.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 532121250

Spring, Compression

$7.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 532121249

Spacer, Split 28 ld. x .88 Large

$6.49

$

In Stock, only 2 left!

0

21

Electrolux/AYP 532121246

Bracket, Switch, Mounting
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

$

$

Not available
