PP 1236 A - Poulan Lawn Tractor (1991) FRONT AXLE Parts Diagram

Lawn Tractor

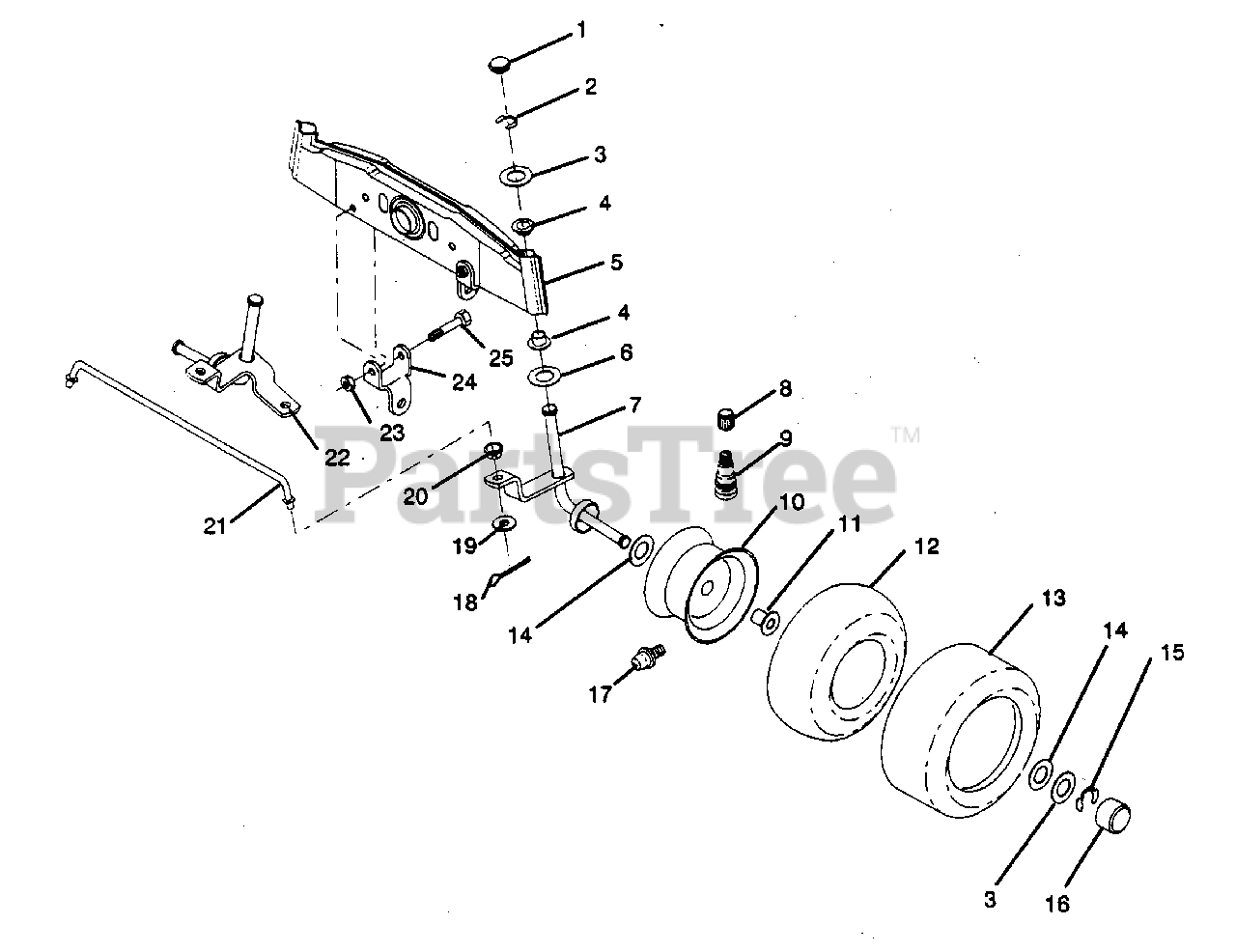

FRONT AXLE Parts Diagram

  • Title

1

Electrolux/AYP 532121232

Cap, Spindle

$4.99

$

In Stock, Qty 8

0

2

Electrolux/AYP 812000029

Ring, Clip

$4.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$4.99

$

In Stock, Qty 10

0

4

Electrolux/AYP 532121922

Nyliner

$6.99

$

In Stock, Qty 7

0

5

Electrolux/AYP 532121914

Axle, Front

$

$

Not available

6

Electrolux/AYP 532124931

Bearing, Thrust
(Superseded to 532006266)

$7.49

$

In Stock, Qty 14

0

7

Electrolux/AYP 532121919

Spindle R.H. Asm.

$

$

Not available

8

Electrolux/AYP 532059192

Cap, Valve

$7.49

$

In Stock, Qty 9

0

9

Electrolux/AYP 532065139

Stem, Valve

$9.99

$

In Stock, only 1 left!

0

10

Electrolux/AYP 532124843

Rim

$

$

Not available

11

Electrolux/AYP 532009040

Bearing, Flange

$7.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 532059904

Tube

$37.99

$

In Stock, Qty 9

0

13

Electrolux/AYP 532123410

Tire, Front

$66.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 812000029

Ring, Clip

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 532104757

Cap, Axle

$4.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 532000278

Fitting, Grease

$6.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 819131316

Washer 13/32 x 13/16 x 16 Ga.

$4.99

$

In Stock, Qty 5

0

20

Electrolux/AYP 532126847

Bushing

$5.99

$

In Stock, only 2 left!

0

21

Electrolux/AYP 532121924

Rod, Tie

$

$

Not available

22

Electrolux/AYP 532121916

Spindle, L.H. Asm.

$

$

Not available

23

Electrolux/AYP 873680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

24

Electrolux/AYP 532121915

Bracket, Front Stabilizer Link

$

$

Not available

25

Electrolux/AYP 874760540

Bolt, Hex, Fin. 5/16 - 18 UNC x 2 -1/2

$2.99

$

Usually ships in 3-10 days

0
