PP 1236 A - Poulan Lawn Tractor (1991) BRAKE/REAR MOWER LIFT ASSEMBLY Parts Diagram

Lawn Tractor

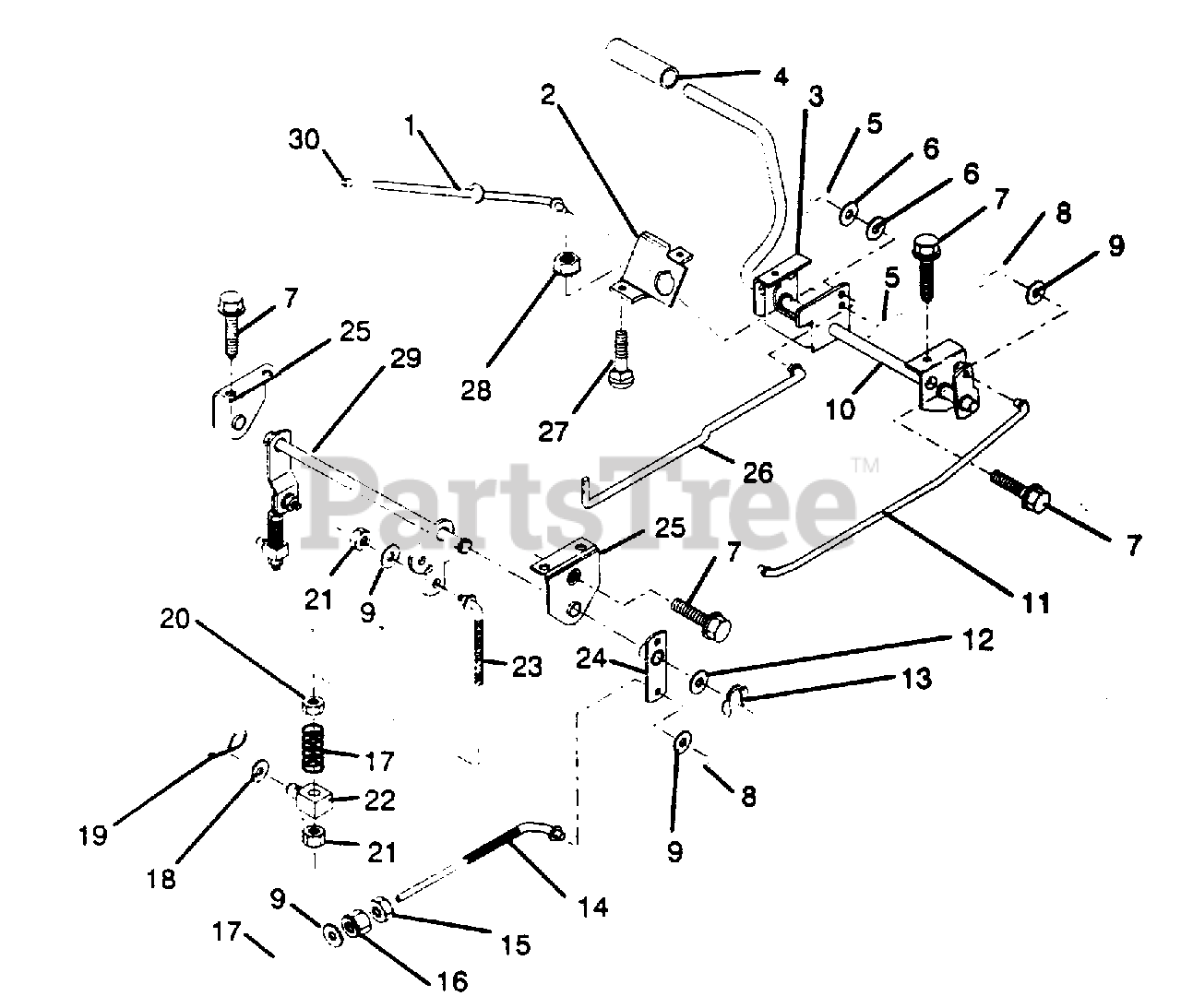

BRAKE/REAR MOWER LIFT ASSEMBLY Parts Diagram

  • Title
1

Electrolux/AYP 532123436

Rod, Parking Brake

$

$

Not available

2

Electrolux/AYP 532123437

Bracket, Parking Brake

$

$

Not available

3

Electrolux/AYP 532122504

Bracket, L.H. Clutch Pedal

$

$

Not available

4

Electrolux/AYP 532124872

Cover, Pedal
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 876020312

Pin, Cotter 3/32 x 3/4
(Superseded to 876020308)

$

$

Not available

6

Electrolux/AYP 819131016

Washer, 13/32 x 5/8 x 16 Ga.

$6.49

$

In Stock, Qty 5

0

7

Electrolux/AYP 817490508

Screw, Hex Washer Hd. TF 5/16-18 x 1/2

$6.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

9

Electrolux/AYP 819131316

Washer 13/32 x 13/16 x 16 Ga.

$4.99

$

In Stock, Qty 5

0

10

Electrolux/AYP 532124145

Assembly, Clutch/Brake Pedal
(Superseded to 532139933)

$

$

Not available

11

Electrolux/AYP 532123543

Rod, Front Brake
(Superseded to 123543X)

$

$

Not available

12

Electrolux/AYP 819251816

Washer 25/32 x 1-1/8 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

13

$

$

Not available

14

Electrolux/AYP 532126759

Rod, Rear Brake
(Superseded to 532131461)

$13.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 873350600

Nut, Hex Jam 3/8-16 UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

16

Electrolux/AYP 873800600

Nut, Lock, Hex with Wsh Insert 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532106888

Spring, Brake Rod
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

18

Electrolux/AYP 819132012

Washer 13/32 x 1 1/4 x 12 Ga.

$1.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 532004921

Spring, Retainer

$6.49

$

In Stock, only 2 left!

0

20

Electrolux/AYP 873930600

Nut, Centerlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 873680600

Nut, Crownlock 3/8-16 UNC
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

22

Electrolux/AYP 532106204

Trunnion, Lift
(Superseded to 532132793)

$

$

Not available

23

Electrolux/AYP 532123672

Link, Threaded

$

$

Not available

24

Electrolux/AYP 532123641

Assembly, Brake Pivot Arm

$

$

Not available

25

Electrolux/AYP 532121978

Bracket, Lift Shaft

$

$

Not available

26

Electrolux/AYP 532123394

Rod, Clutch
(Superseded to 123394X)

$

$

Not available

27

Electrolux/AYP 872110506

Bolt, Carriage 5/16-18 UNC x 3/4

$7.49

$

In Stock, Qty 20+

0

28

Electrolux/AYP 873510500

Nut, Keps 5/16-18 UNC
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

29

Electrolux/AYP 532123547

Assembly, Rear Mower Lift

$

$

Not available

30

$5.99

$

Usually ships in 3-10 days

0
