PP-1200 - Echo Pole Saw (Type 1E) Gearcase, Oiler Asy, Guide Bar, Chain Parts Diagram

Pole Saw (Type 1E)

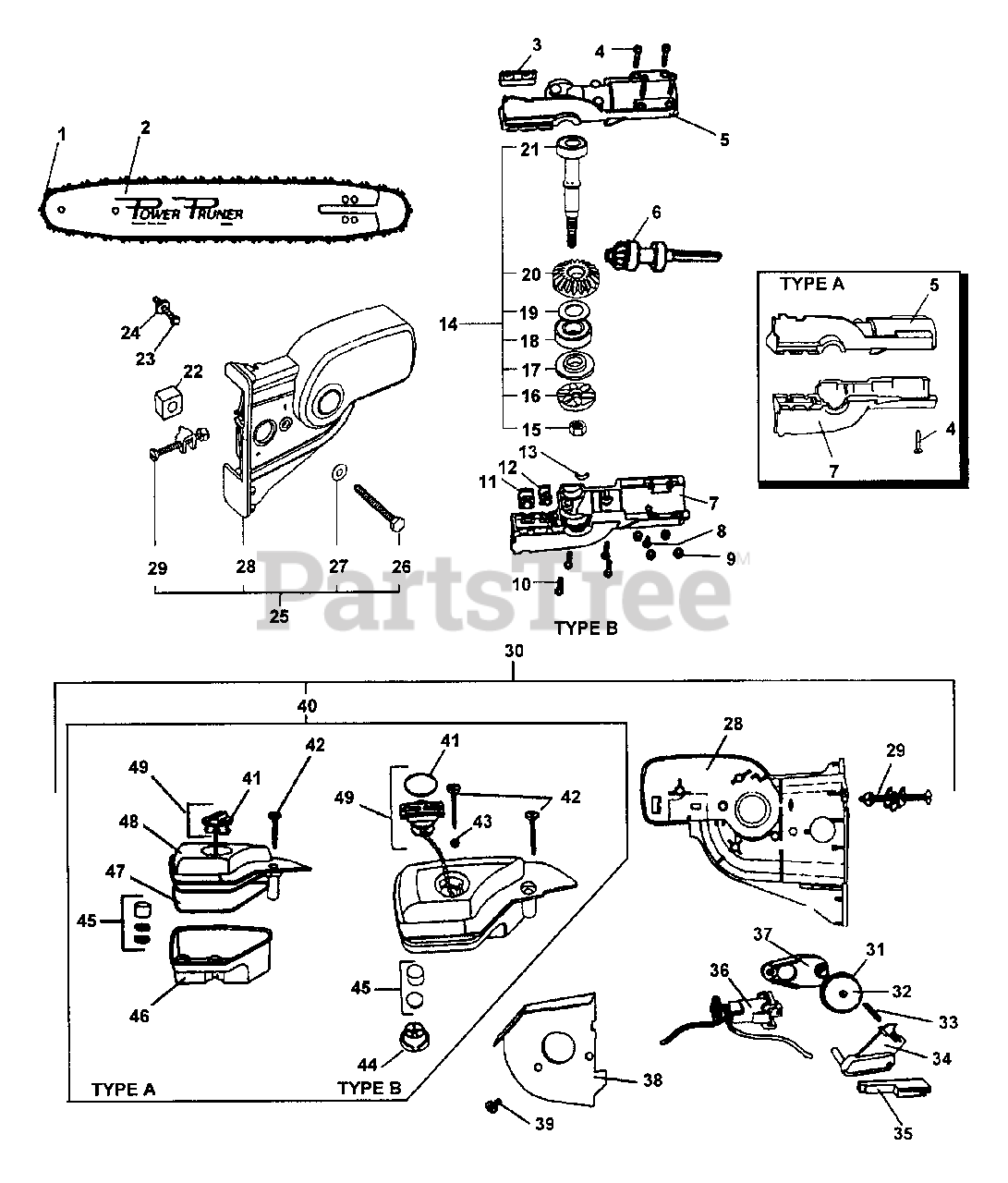

Gearcase, Oiler Asy, Guide Bar, Chain Parts Diagram

  • Title

Echo 61050122260

CUTTING HEAD ASSY
(Superseded to 90081)

Note: Includes ITEMS 1-49

$170.99

$

In Stock, Qty 7

0

Echo 61040022360

CUTTING HEAD ASSY W/O B & C
(Superseded to 90081)

Note: INCLUDES ITEMS 3 - 49

$170.99

$

In Stock, Qty 7

0

1

Echo 43161022160

SAW CHAIN - 10" (25cm)
(Superseded to 1907039)

$14.99

$

In Stock, only 1 left!

0

2

Echo 43041022160

GUIDE BAR - 10" (25cm)
(Superseded to 1100373901)

$

$

Not available

3

Echo 43305522360

BRACKET, GUIDE BAR

$9.99

$

Usually ships in 2-4 days

0

4

Echo 90005300400

SCREW - 10-24 X 1-1/4"

$0.99

$

In Stock, Qty 15

0

5

Echo 61040722460

CASE, GEAR - UPPER
(Superseded to Discontinued)

$

$

Not available

6

Echo 61030922360

SHAFT GEAR ASSY
(Superseded to 61030922361)

$53.99

$

In Stock, only 2 left!

0

7

Echo 61040722360

CASE, GEAR - LOWER

$17.99

$

Usually ships in 2-4 days

0

8

Echo 90005300200

SCREW
(Superseded to Discontinued)

$

$

Not available

9

Echo 90003150100

LOCKNUT - 10-24

$0.99

$

In Stock, Qty 20+

0

10

Echo 90005300300

SCREW - 10-24 X 7/8"

$0.99

$

Usually ships in 2-4 days

0

11

Echo 11007622360

SPACER
(Superseded to Discontinued)

$

$

Not available

12

$8.49

$

Usually ships in 2-4 days

0

13

$1.99

$

Usually ships in 2-4 days

0

14

Echo 61030622360

GEAR SHAFT ASSY

Note: Includes ITEMS 15-21

$114.99

$

In Stock, only 1 left!

0

$0.99

$

In Stock, only 3 left!

0

16

Echo 30280622360

SPROCKET, DRIVE

$17.99

$

Usually ships in 2-4 days

0

17

Echo 30281222360

SPACER, SPROCKET

$7.99

$

Usually ships in 2-4 days

0

18

Echo 90080206001

BEARING, BALL - 6001 DDU
(Superseded to 9404206001)

$9.99

$

In Stock, only 4 left!

0

19

$0.99

$

Usually ships in 2-4 days

0

20

Echo 61031122360

GEAR - BEVEL

$17.99

$

Usually ships in 2-4 days

0

21

Echo 61036022360

DRIVESHAFT SPROCKET ASSY

$23.99

$

Usually ships in 2-4 days

0

22

Echo 11007622560

SPACER
(Superseded to Discontinued)

$

$

Not available

23

Echo 90005100100

SCREW - 1/4-20 X 1-3/4"
(Superseded to V204000090)

$0.99

$

In Stock, Qty 20+

0

24

$2.99

$

Usually ships in 2-4 days

0

25

Echo 43760223960

OILER COVER ASSY

Note: INCLUDES ITEMS 26 - 29; TO BE ANNOUNCED

$56.99

$

Usually ships in 2-4 days

0

26

Echo 90005600200

BOLT - 1/4-20 X 2-1/4"

$0.99

$

Usually ships in 2-4 days

0

27

$0.99

$

Usually ships in 2-4 days

0

28

Echo 43760522360

COVER, OIL PUMP

$29.99

$

In Stock, only 1 left!

0

29

Echo 43309522360

TENSIONER KIT

$14.99

$

In Stock, only 1 left!

0

30

Echo 43700022360

AUTO-OILER ASSY
(Superseded to 90081)

Note: INCLUDES ITEMS 28, 29 & 31 - 49

$170.99

$

In Stock, Qty 7

0

31

$1.99

$

In Stock, only 3 left!

0

32

Echo 43710422360

CAM, OIL PUMP
(Superseded to Discontinued)

$

$

Not available

33

$1.49

$

Usually ships in 2-4 days

0

34

Echo 70700022360

LINK, OILER IDLER
(Superseded to Discontinued)

$

$

Not available

35

Echo 16821822160

PIPE, OIL OUTLET

$2.49

$

In Stock, Qty 5

0

36

Echo 43700022460

AUTO-OILER ASSY
(Superseded to Discontinued)

$

$

Not available

37

Echo 43704122360

LINK, OILER DRIVE

$4.49

$

Usually ships in 2-4 days

0

38

$21.99

$

Usually ships in 2-4 days

0

39

$0.99

$

In Stock, only 3 left!

0

40

Echo 43600522360

OIL TANK ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 41 - 49

$

$

Not available

41

$1.49

$

Usually ships in 2-4 days

0

42

Echo 90005300100

SCREW - 8-32 X 1"

$0.99

$

In Stock, only 2 left!

0

43

$0.99

$

In Stock, Qty 9

0

44

Echo 43724322360

HOUSING, OIL FILTER

$1.49

$

In Stock, only 4 left!

0

45

Echo 43620522360

OIL FILTER ASSY

$3.99

$

Usually ships in 2-4 days

0

46

------------------

TANK, OIL (BOTT)

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

47

Echo 43712223960

O-RING

Note: TO BE ANNOUNCED

$2.99

$

Usually ships in 2-4 days

0

48

------------------

TANK, OIL (TOP)

Note: USE ASY 1210; Not Available

$

$

Not available

49

Echo 43600122060

CAP ASSY

$9.99

$

In Stock, Qty 8

0
