PP 11536K - Poulan Lawn Tractor (1995) MOWER DECK Parts Diagram

Lawn Tractor

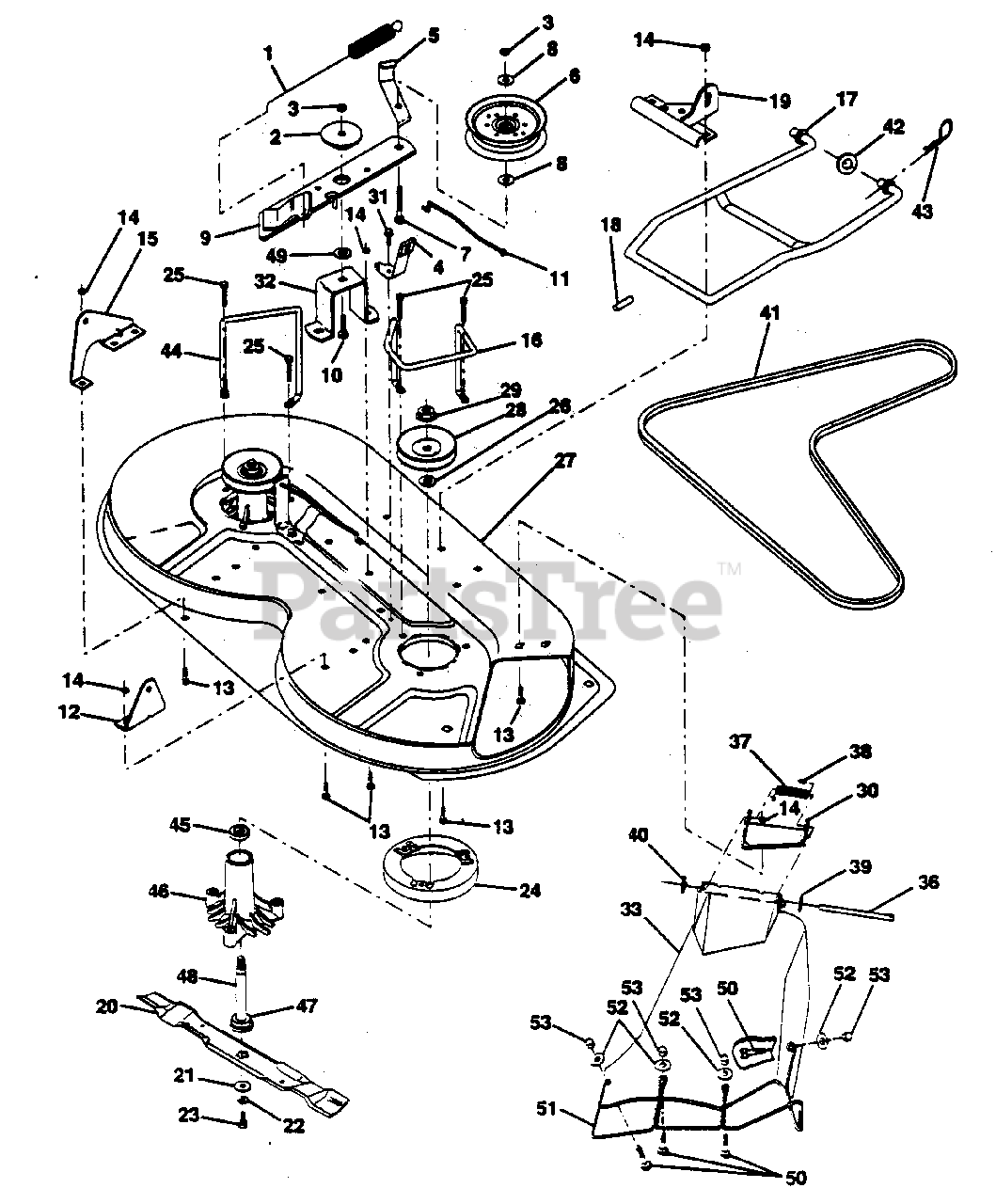

MOWER DECK Parts Diagram

  • Title

1

Electrolux/AYP 532140064

Spring, Mower Clutch

$24.99

$

In Stock, only 1 left!

0

2

Electrolux/AYP 532122052

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

3

Electrolux/AYP 873680600

Nut, Crownlock 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

4

Electrolux/AYP 532130840

Brake Asm.

$12.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 532131251

Guide, Belt Idler
(Superseded to 131251)

$

$

Not available

6

Electrolux/AYP 532121316

Pulley, Flat Idler

$51.99

$

In Stock, only 4 left!

0

7

Electrolux/AYP 872110616

Bolt, Carr. 3/8-16 x 1-3/4 Gr. 5
(Superseded to 596136301)

$3.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 819131410

Washer 13/21 x 7/8 x 10 Ga.
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532127744

Arm Asm., Idler Mower
(Superseded to 532140092)

$

$

Not available

10

Electrolux/AYP 872140610

Bolt, Carriage 3/8-16 x 1-1/4
(Superseded to 583611601)

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532130841

Rod, Brake

$30.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 532127356

Bracket, Lift R. H. Rear
(Superseded to 127356)

$

$

Not available

13

Electrolux/AYP 872140506

Bolt, Carriage 5/16-18 x 5/8
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 873680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 532127357

Bracket, Lift L. H. Rear

$

$

Not available

16

Electrolux/AYP 532140093

Keeper, R. H.
(Superseded to 532153298)

$14.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532128508

Link, Asm. Mower Stabilizer

$

$

Not available

18

Electrolux/AYP 532128511

Pin, Drive

$

$

Not available

19

Electrolux/AYP 532127380

Bracket, Asm. Front

$

$

Not available

20

Electrolux/AYP 532140101

Blade Mulching

$27.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 532140296

Washer, Hard

$6.99

$

In Stock, only 2 left!

0

22

Electrolux/AYP 810030600

Washer, Lock 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 532850857

Bolt 3/8-24 x 1-1/4 Gr. 8

$4.99

$

In Stock, only 1 left!

0

24

Electrolux/AYP 532140329

Stripper
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 532138776

Screw Thdrol Hex Hd
(Superseded to 532157722)

$4.99

$

In Stock, Qty 16

0

26

Electrolux/AYP 532129963

Washer .150 Thk.
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 532129983

Deck Assembly
(Superseded to 532174082)

$

$

Not available

28

Electrolux/AYP 532129207

Pulley, Mandrel
(Superseded to 532153531)

$18.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532137266

Nut, Flangelock 9/16
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

30

Electrolux/AYP 532136631

Bracket, Asm. Deflector
(Superseded to 136631)

$7.49

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 817490508

Screw, Hex Wsh. Thdrol. 5/16-18 x 1/2

$6.49

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 532122051

Arm, Support Idler Mower
(Superseded to 122051X)

$5.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 532131560

Deflector
(Superseded to 532175029)

$30.99

$

In Stock, only 1 left!

0

36

Electrolux/AYP 532121980

Rod, Hinge
(Superseded to 583383801)

$

$

Not available

37

Electrolux/AYP 532123713

Spring, Torsion Deflector

$7.99

$

In Stock, only 1 left!

0

38

Electrolux/AYP 532105304

Cap, Sleeve

$4.99

$

In Stock, Qty 20+

0

39

Electrolux/AYP 819111016

Washer 11/32 x 5/8 x 16 Ga.
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 532110452

Pushnut

$3.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 532131264

V-Belt

$39.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 819171616

Washer 11/32 x 5/8 16 Ga.
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

43

Electrolux/AYP 532124660

Retainer, Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

44

Electrolux/AYP 532140608

Keeper, L. H.

$27.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 532110485

Bearing

$13.99

$

In Stock, Qty 11

0

46

Electrolux/AYP 532128774

Housing Mandrel Vented

$34.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 532129895

Bearing
(Superseded to 738220419)

$17.99

$

In Stock, only 2 left!

0

48

Electrolux/AYP 532137645

Shaft, Mandrel (Includes Key # 47)
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

49

Electrolux/AYP 532133943

Washer, Hardened
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 532145989

Bolt, RdHd Sqnk M5 x 0.8 x 16

$

$

Not available

51

Electrolux/AYP 532136383

Guard, Dftr. Mwr. 36 Tuv

$

$

Not available

52

Electrolux/AYP 819070718

Washer 7/32 x 7/16 x 18
(Superseded to 734114601)

$6.99

$

In Stock, only 1 left!

0

53

Electrolux/AYP 532145990

Nut, Acom M5 x 0.8

$

$

Not available

Electrolux/AYP 532130794

Mandrel Asm. (Inc.22-23, 26, 29 & 45-48)

$56.99

$

In Stock, only 2 left!

0

Electrolux/AYP 532140979

Deck, Mower Complete
(Superseded to 532156866)

$728.99

$

Usually ships in 3-10 days

0
