PP 11536K A - Poulan Lawn Tractor (1995) GROUND DRIVE Parts Diagram

Lawn Tractor

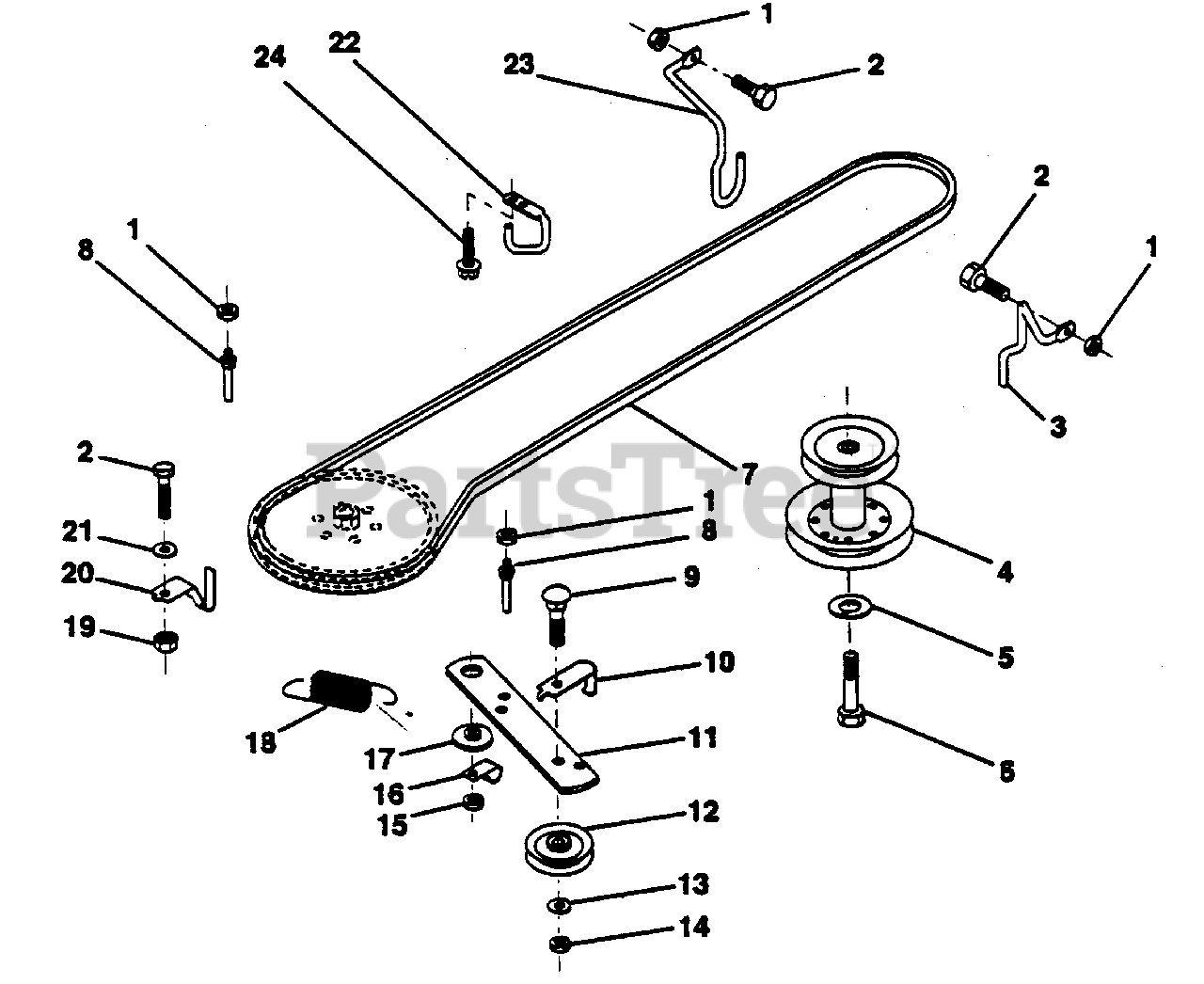

GROUND DRIVE Parts Diagram

  • Title
1

Electrolux/AYP 873680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

2

Electrolux/AYP 874760512

Bolt, Hex Hd 5/16-18 UNC x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 532141342

Keeper,Mower Drive, R. H.

$4.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 532138029

Pulley, Engine

$

$

Not available

5

Electrolux/AYP 810040700

Washer, Lock 7/16
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 871170744

Bolt Hex 7/16-20 Gr. 5

$2.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 532124525

Traction, V-Belt Drive

$48.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 532123405

Keeper, T/A Ground Drive Belt
(Superseded to 532164173)

$8.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 872140612

Bolt, Carr.?? 3/8-16 UNC x 1-1/2

$2.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532123396

Keeper, Belt Ground Drive Idler

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532140911

Arm, Ground Drive Clutch

$

$

Not available

12

$31.99

$

In Stock, only 1 left!

0

13

Electrolux/AYP 819131316

Washer 13/32 x 13/16 x 16 Ga.

$4.99

$

In Stock, Qty 5

0

14

Electrolux/AYP 873930600

Nut, Centerlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 873680600

Nut, Crownlock 3/8-16 UNC
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

16

Electrolux/AYP 532126471

Clip, Insulated

$4.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532122052

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 532131459

Spring Extension

$

$

Not available

19

Electrolux/AYP 873510500

Nut, Keps 5/16-18 UNC
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

20

Electrolux/AYP 532139919

Keeper, T/A Ground Drive Belt

$2.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 819111016

Washer 11/32 x 5/8 x 16 Ga.
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 532123404

Keeper, Frame Ground Drive Belt

$

$

Not available

23

Electrolux/AYP 532140916

Keeper, Mower Drive, L. H.

$5.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 817720408

Screw, Thd. Cut 1/4 x 20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0
