PP 11536 - Poulan Pro Lawn Tractor Seat Parts Diagram

Lawn Tractor

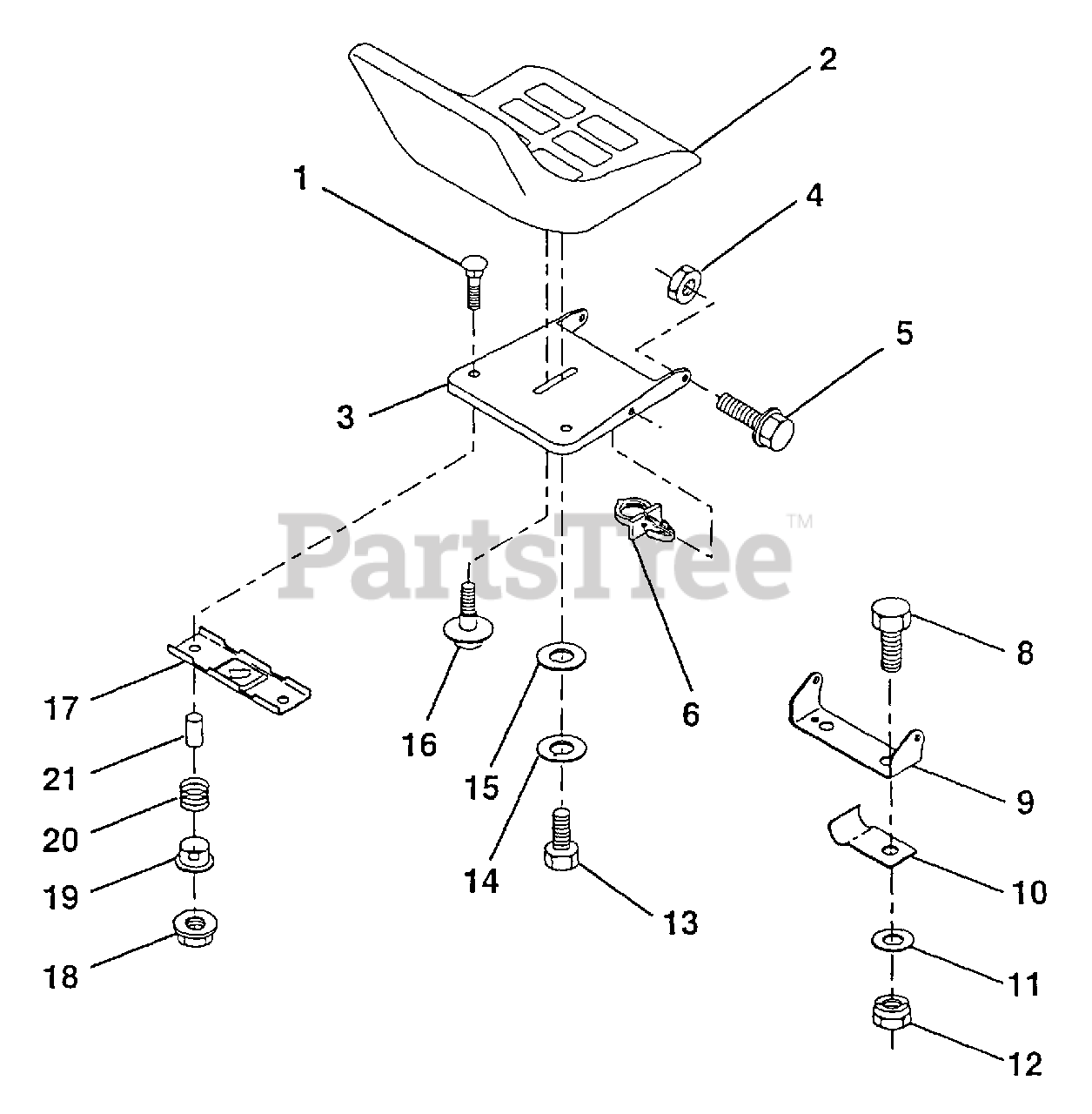

Seat Parts Diagram

  • Title
1

Poulan 72050411

Bolt, Carriage 1/4-20 x 1-3/8 (AYP part number)

$

$

Not available

2

Poulan 140116

Seat (AYP part number)
(Superseded to 532401042)

$206.99

$

Usually ships in 3-10 days

0

3

Poulan 155925

Pan, Seat (AYP part number)
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

4

Poulan 73800500

Locknut, Hex w/Ins 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

5

Poulan 153236

Bolt, Shoulder 5/16-18 UNC (AYP part number)
(Superseded to 532171852)

$4.99

$

In Stock, Qty 8

0

6

Poulan 145006

Clip, Push-In Hinged
(Superseded to 532145006)

$6.49

$

Usually ships in 3-10 days

0

8

Poulan 74760616

Bolt, Fin Hex 3/8-16 UNC x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

9

Poulan 140551

Bracket, Pivot Seat
(Superseded to 532140551)

$6.49

$

Usually ships in 3-10 days

0

10

Poulan 126471X

Clip, Insulated
(Superseded to 532126471)

$4.99

$

Usually ships in 3-10 days

0

11

Poulan 19133210

Washer 12/32 x 2 x 10 Ga.
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

12

Poulan 73800600

Nut, Lock Hex w/Wsh 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 74780814

Bolt Hex 1/2-13 x 7/8 (AYP part number)
(Superseded to 871110814)

$10.99

$

Usually ships in 3-10 days

0

14

Poulan 10040800

Washer Lock Hvy. Hlicl Spring 1/2
(Superseded to 810040800)

$6.99

$

Usually ships in 3-10 days

0

15

Poulan 19171912

Washer, 17/32 x 1-3/16 x 12 Ga.
(Superseded to 819171912)

$7.49

$

In Stock, only 1 left!

0

16

Poulan 127018X

Bolt, Shoulder
(Superseded to 532127018)

$7.49

$

Usually ships in 3-10 days

0

17

Poulan 121246X

Bracket, Switch, Mounting
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

18

Poulan 123976X

Nut, Hex Large Flange Lock (AYP part number)
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

19

Poulan 121248X

Bushing, Snap
(Superseded to 532121248)

$6.49

$

Usually ships in 3-10 days

0

20

Poulan 121250X

Spring, Compression
(Superseded to 532121250)

$7.49

$

Usually ships in 3-10 days

0

21

Poulan 134300

Spacer, Split 28 Id. x .88 Lg.
(Superseded to 532134300)

$7.49

$

Usually ships in 3-10 days

0
